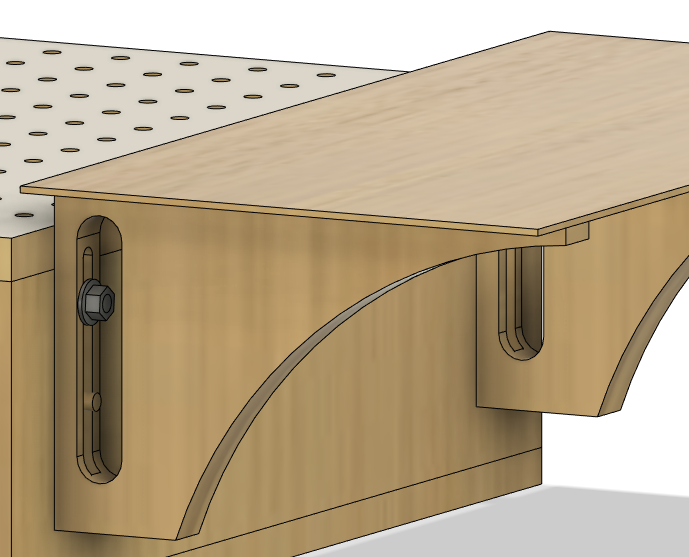

suction table with height adjustable Shaper Tape platform
A table to be used for vacuuming grinding dust or as downdraft table.
104
Jigs & Fixtures
Files Included (5)
35mm cutout.svg
869 BBackplate.svg
2 kBcorbel front.svg
763 Bcorbel.svg
1 kBholes.svg
37 kB
Materials
plywood 16mm
385*485mm 2x top/bottom
485*140mm 2x front/back
353*140mm 2x left/right
153*250mm 2x corbel
mdf 3mm the size you need
8mm threaded screw 2x
8mm dowel 4x
washers 2x
M8 hex nut 2x
Tools
Shaper Origin
Tablesaw
6mm milling cutter
Instructions

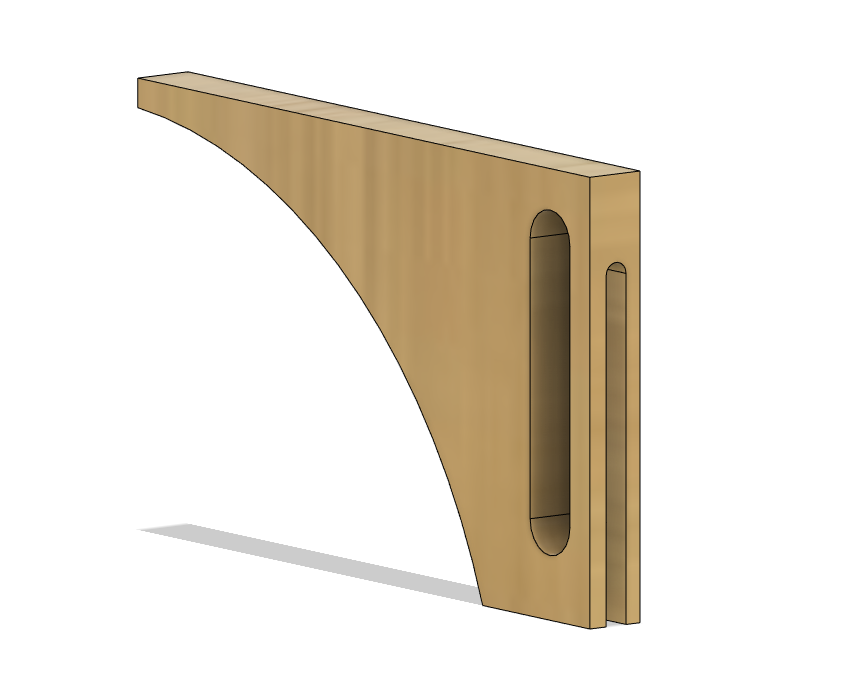

Project can be found on YouTube by 12.04.2020: www.youtube.com/NerdyTimber Cut all the pieces and use the grid tool to place the svg's on the pieces. The corbel has to be milled like you can see in the picture. Assemble by using screws, the Lamello system, Festool Domino system or Mafell DuoDowel system. Make sure you are able to open one side Insert the threaded nuts in the top holes on the backplate and put the dowls in the lower ones. Let them stick out by 5mm. They are used to keep the corbel in line.
