angled 4U desk rack with monitor stand

By Bill14 | Created February 21st, 2021 | Published February 21st, 2021 | Updated February 21st, 2021

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
The ultimate desktop 4U rack mount enclosure, with removable angled base and adjustable height monitor stand. Top slots for equipment ventilation, convenient carry handles, and a comfortable 20deg tilt angle. Make a pair to set on each side of your laptop or monitor. Specs: Rack spaces: 4U Rack depth: 13.0" Rack internal dimension: 19.050" wide x 7.050" tall Desktop footprint: 15" depth, 20" width, up to 17.6" tall Monitor height adjustment: 14.9" - 17.6" in 4 steps

2 hr

Intermediate

4

Category

Cabinetry

Files included (2)
NameSize

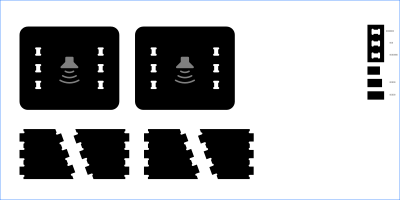

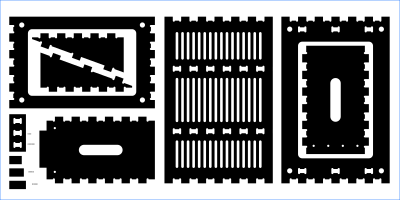

angled 4U with base.svg
27 kB
angled monitor stand.svg
10 kB

BY-NC-SA 4.0 License


QTY 2: plywood sheets, 2'x4', 1/2" thick (0.475" nominal) QTY 8: 1/4"-28 flat socket head screws, 1" overall length (https://www.mcmaster.com/91253A309) QTY 8: locking 1/4"-28 nuts (https://www.mcmaster.com/97135A415) QTY 4: press fit rubber feet (https://www.mcmaster.com/1638K2) QTY 2: metal 4U rack mount ears (Guitar Center #1500000051859) wood glue
Shaper Origin, 1/4" upcut bit hex key set adjustable wrench to hold locking nuts while tightening clamps, corner square countersink bit round-over bit for handle
Routing: * box joints designed for 1/2" thick plywood (0.475" nominal) * a nominal 0.005" gap has been designed around all box joint fingers * lower quality plywood sheets can vary in thickness sheet-to-sheet. use test coupons on each layout to confirm if any offset should be applied to the design to get a snug fit * optional: shallow pocket cut the speaker icon, and inlay with opaque epoxy, contrasting wood, or metal insert Assembly: glue up the three subassemblies separately * do not glue monitor stand to main rack box, so monitor height can be adjusted * do not glue base to main rack box, to allow flat or angled reconfiguration later screw in rack ears using locking nuts assemble subassemblies, and install feet designed in Fusion360
