Grid probe insert

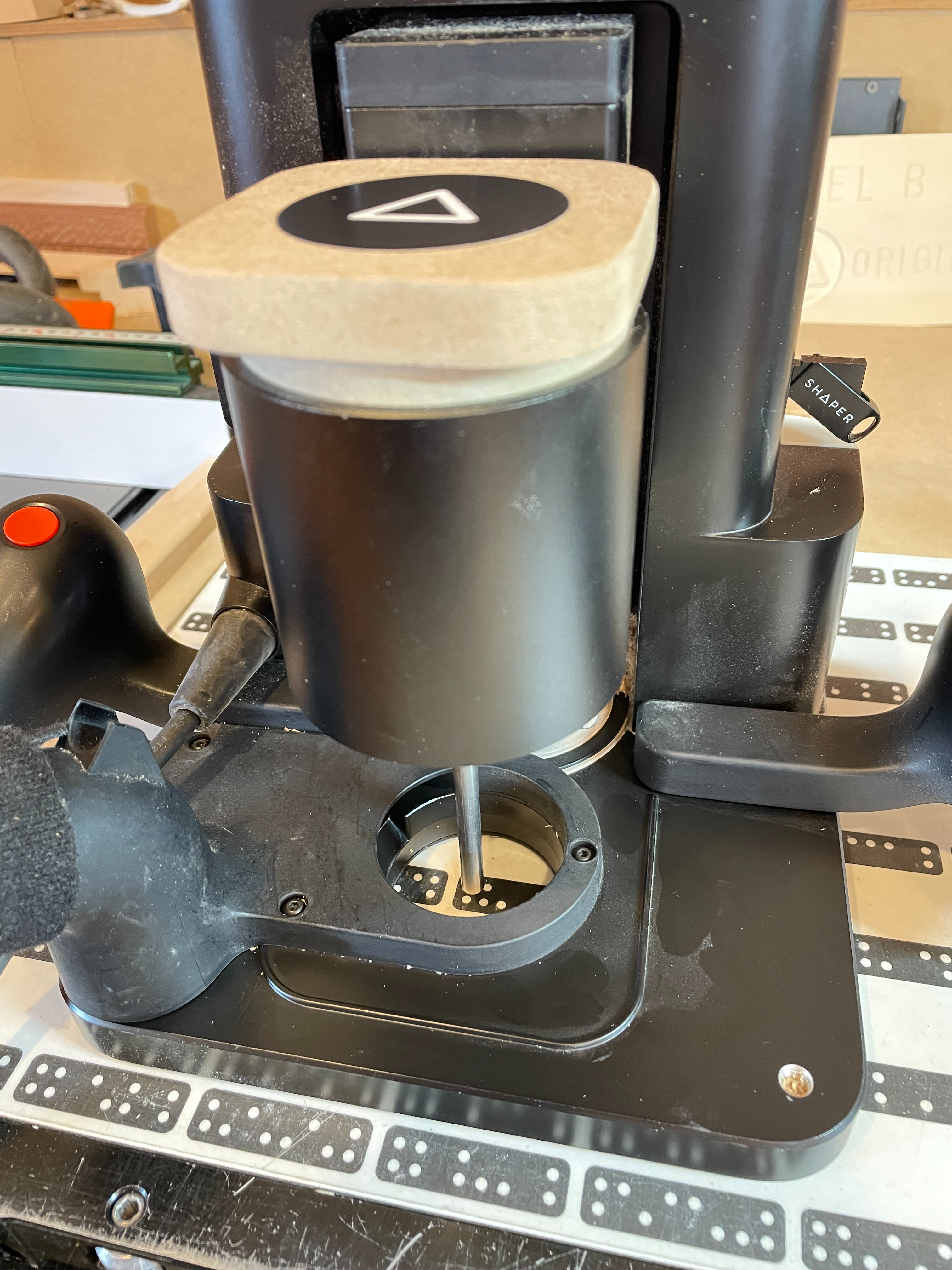

Simple insert to probe workpiece for grid without having to change spindle bit
20 min
Easy
8
Jigs & Fixtures
Files Included (2)
grid-probe-insert (3).svg
9 kBgrid-probe-pin-slot.svg
849 B
Materials
MDF
1/4" stainless rod
Tools
Shaper Origin
Instructions

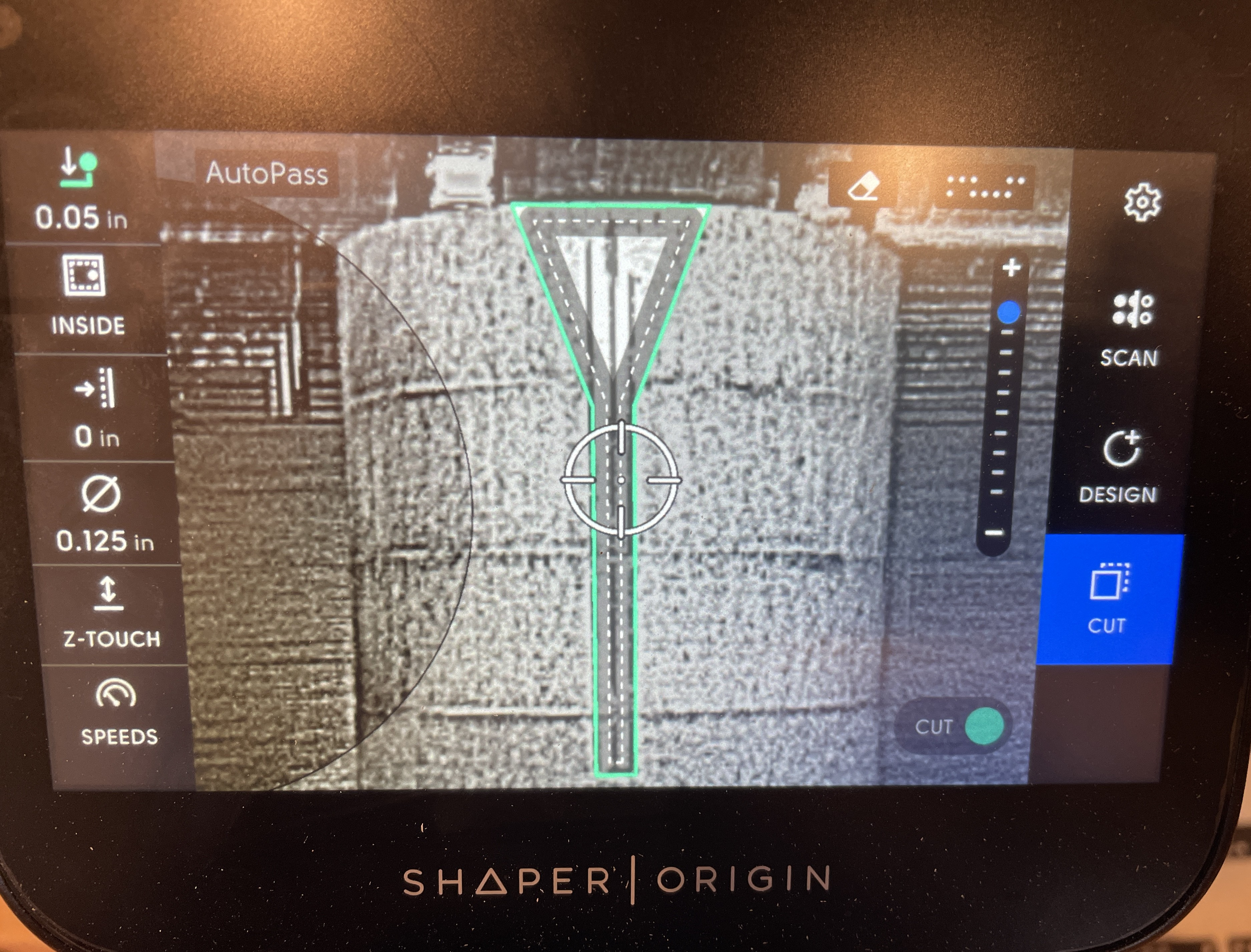

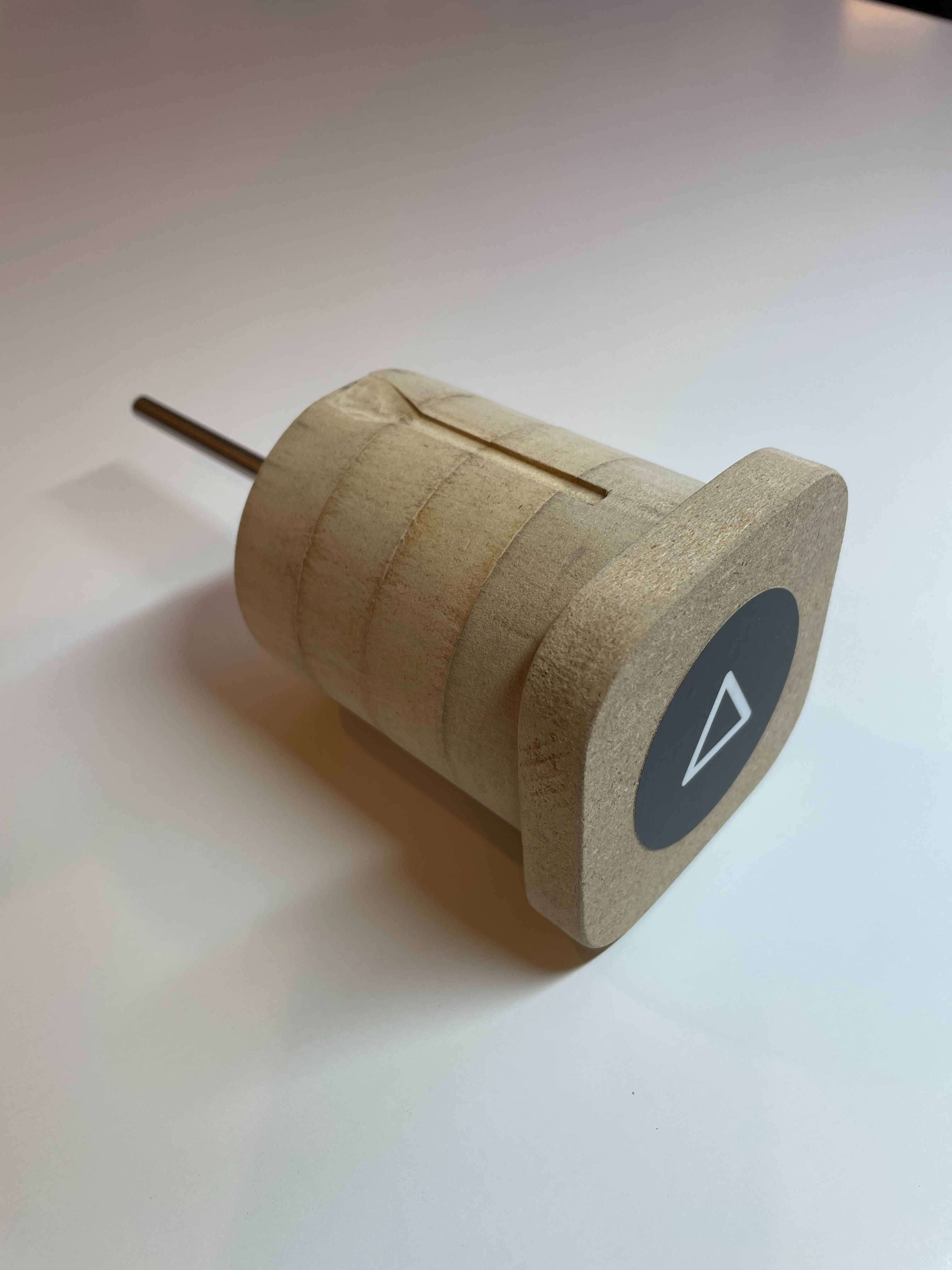

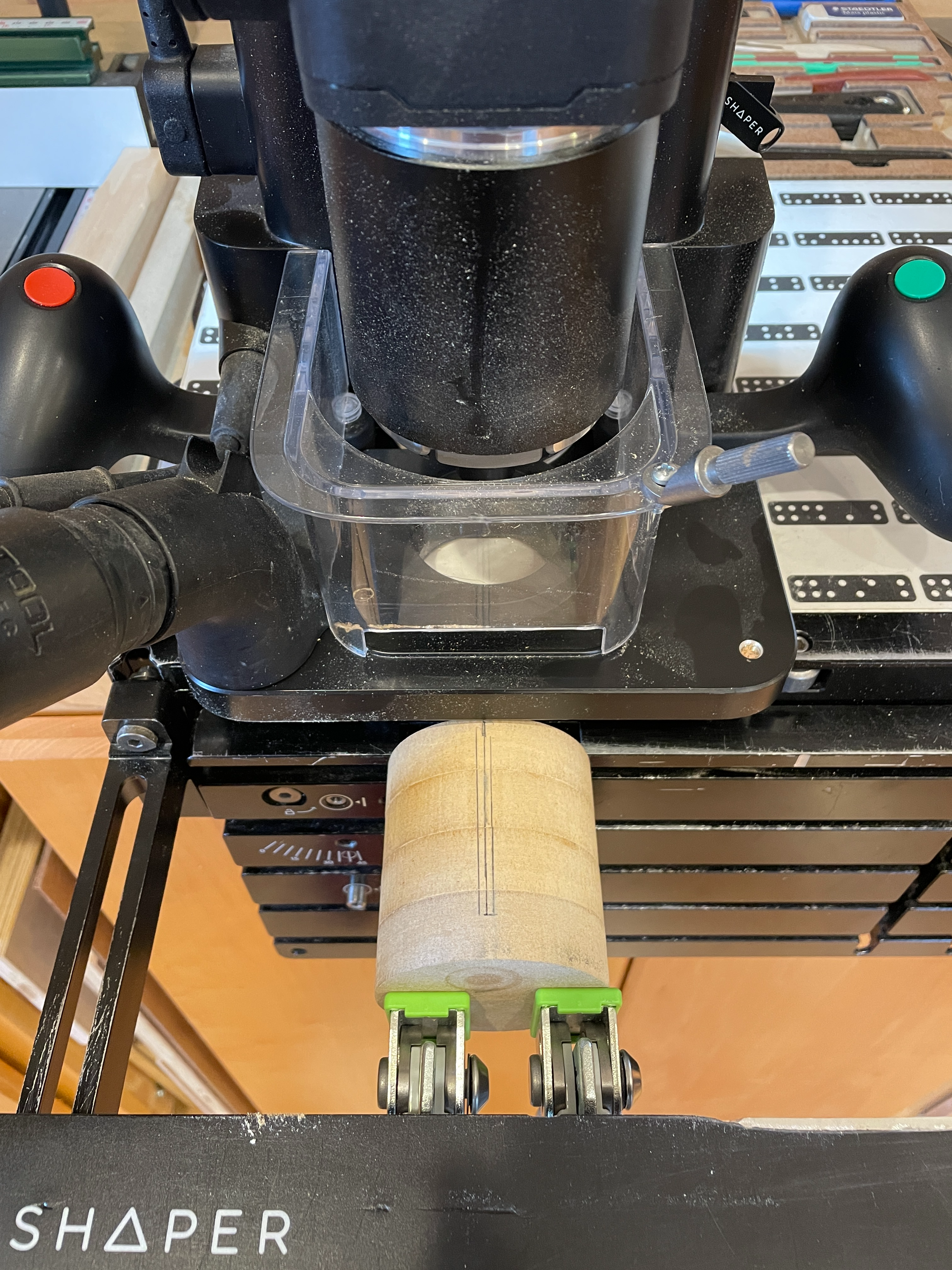

A simple insert made by cutting 4 circular pieces 70mm in diameter I used scrap 3/4" MDF With center hole .252" diameter (helical cut w 1/4" bit) Using 1/4" rod to align, glue the stacked 4 pieces Alignment pin groove cut using workstation as per illustration Top piece 3.5" square w rounded corners (& a Shaper sticker) Rod cut to length extending 3.5" below bottom of insert
