Workstation / Accessory case

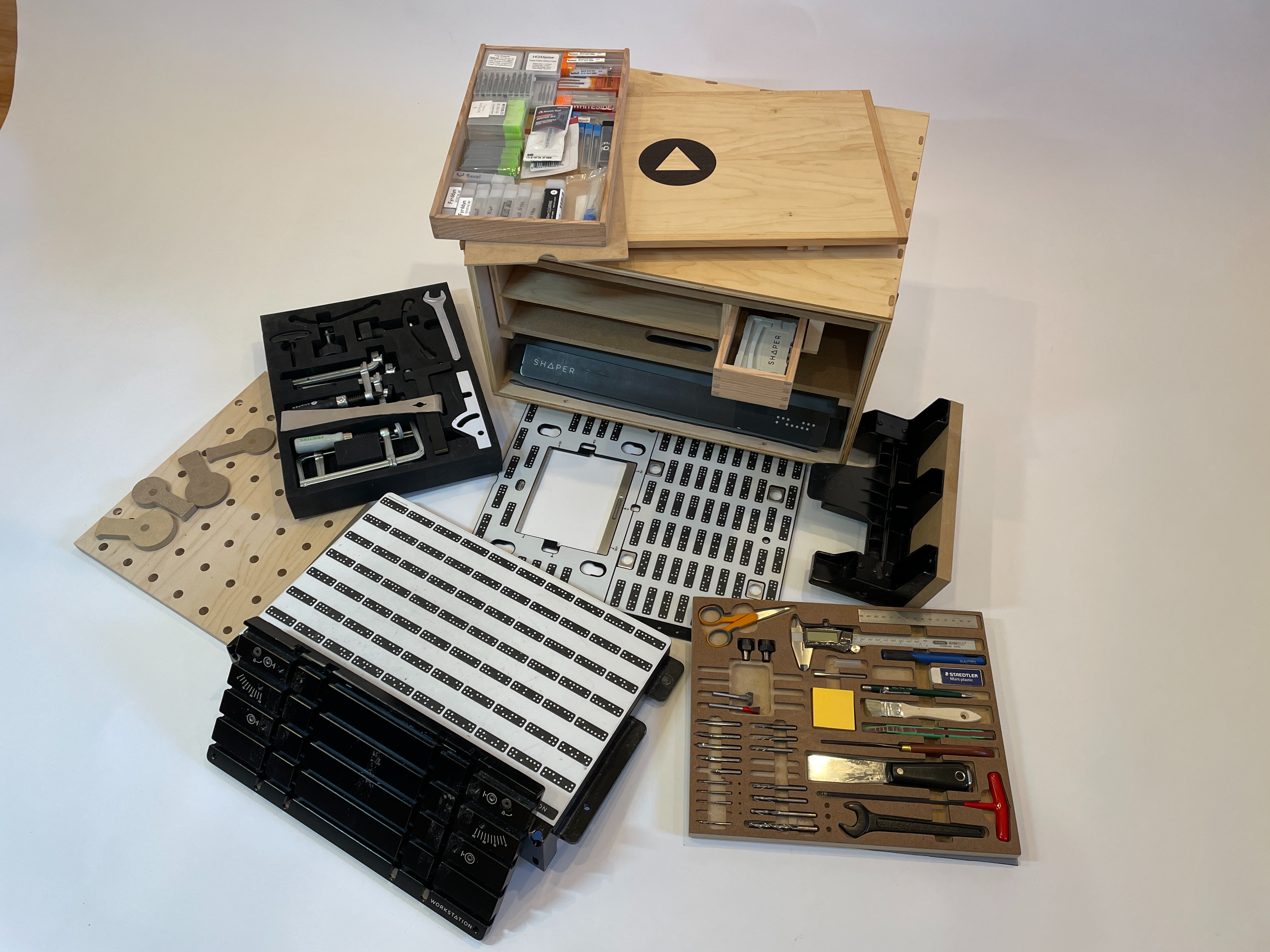

A case for storage / transportation of Shaper Workstation & Accessories (& tools, clamps, bits, Plate, cam shelf, etc.) Simple, layout designed around components Studio .svg design for layout and dimensions -- can individualize and modify removable centerpiece. Have included designs for tool tray, foam cutout, extended cam clamp shelf
179
Storage & Organization
Files Included (6)
sows-case-inlay.svg
3 kBsows-foam.svg
427 kBTool tray cut.svg
54 kBworkstation-12-x-15-shelf-modified.svg
153 kBworkstation-accessory-case.svg
761 kBworkstation-cam-clamps.svg
42 kB
Materials
1/2" plywood
1/2" MDF
2" foam (cross-linked polyethylene)
Hardware - handles, latch
Tools
Shaper Origin
Workstation
Festool Domino
Shaper Plate
Instructions

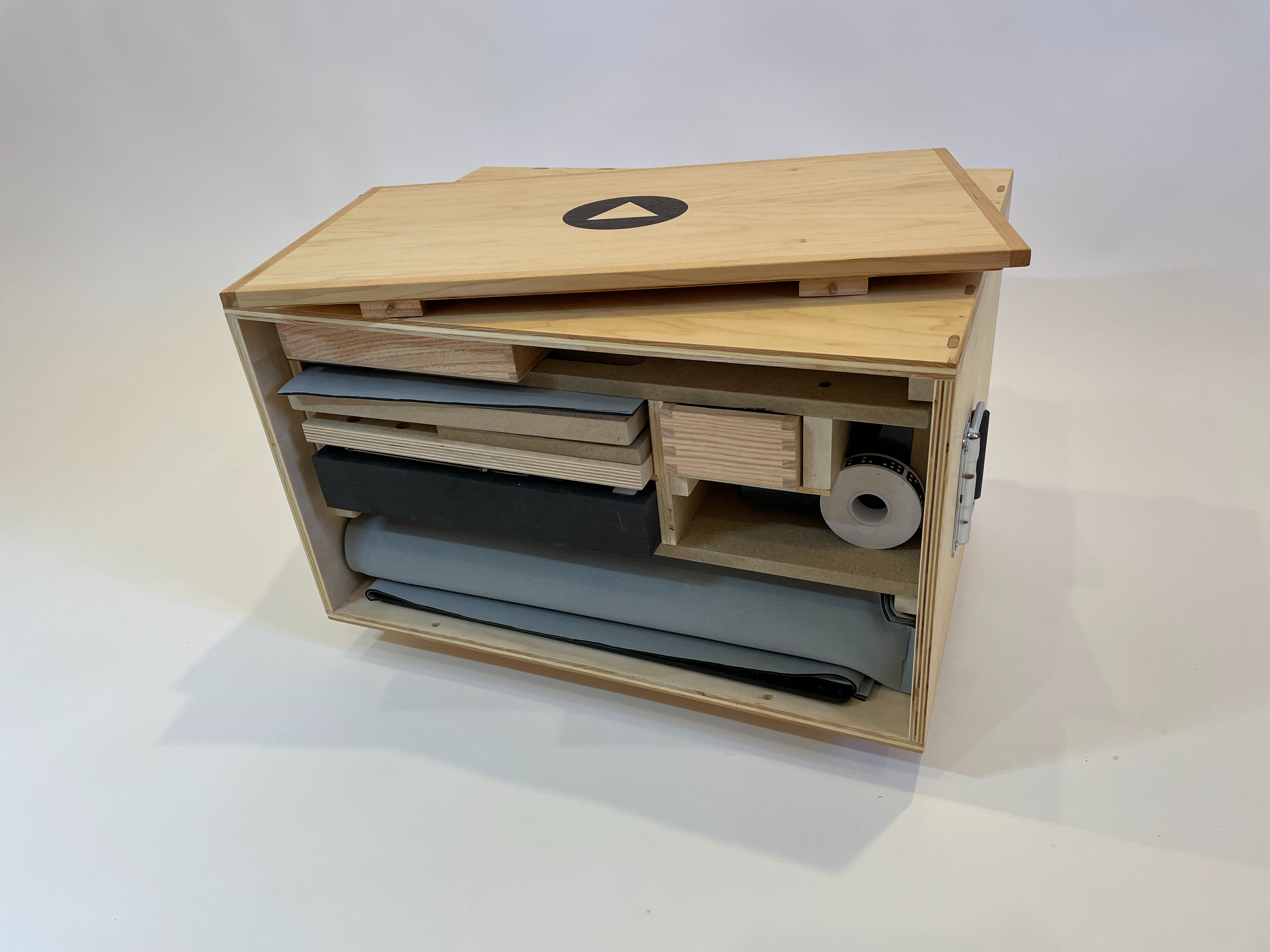

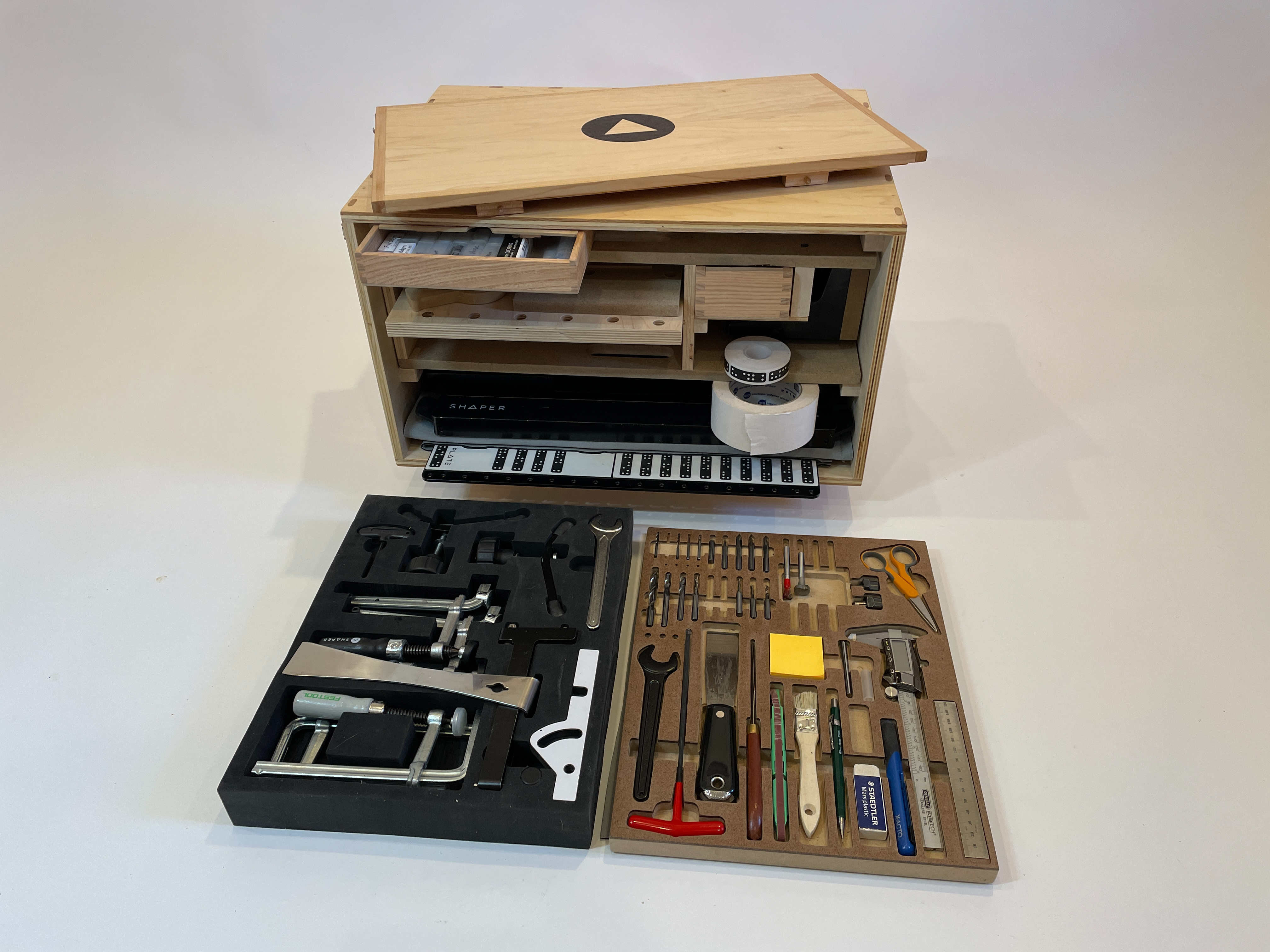

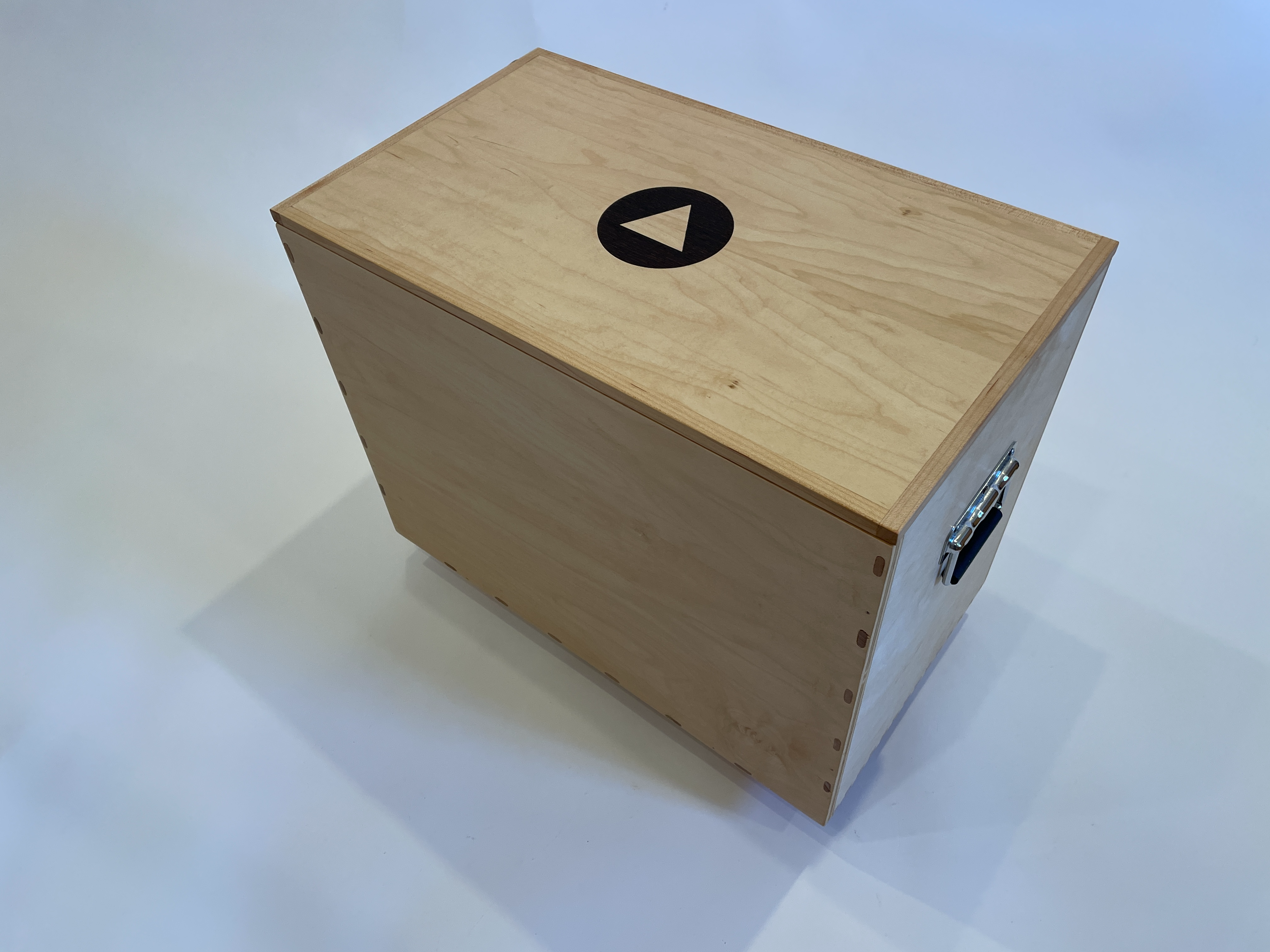

A case for storage of Workstation and related accessories + Plate + Bits + extended adjustable shelf with cam clamps Included Studio-designed .svg file has components and dimensions Outer box made from 1/2" plywood using on-tool designed box joints on bottom end joints and Festool domino joints on sides Modifiable center frame insert adapted to hold 2" foam, tool tray (Files included) as well as small box for bits (on-tool box jointed) & another box for small random parts. Insert sits on simple MDF guides screwed into case which could be removed or adapted if future needs dictate. Has room for tape, spoil boards Tool tray holds and organizes items frequently employed while using Shaper Origin Also included was extended cam clamp shelf modified to fit from posting on Shaper Hub: Workstation Large Worktop with Cam Clamps by Ian 20 Plate & support bar enclosed in Neoprene sleeves (from fabric store - easy to sew with basic sewing machine) Top / lid inlaid with circle surrounding triangle created in Studio and cut in using Plate. Top held in place with dowel pins on bottom and latch (not shown) on side Can be used for transport or shipping. Can be packed in 24x14x18" cardboard box with padding for shipping
