Hex
Hex game Comprising board, box and tray to hold pieces.
15
Games
Files Included (21)
1 - Box closed.jpg
1 MB2 - Box open.jpg

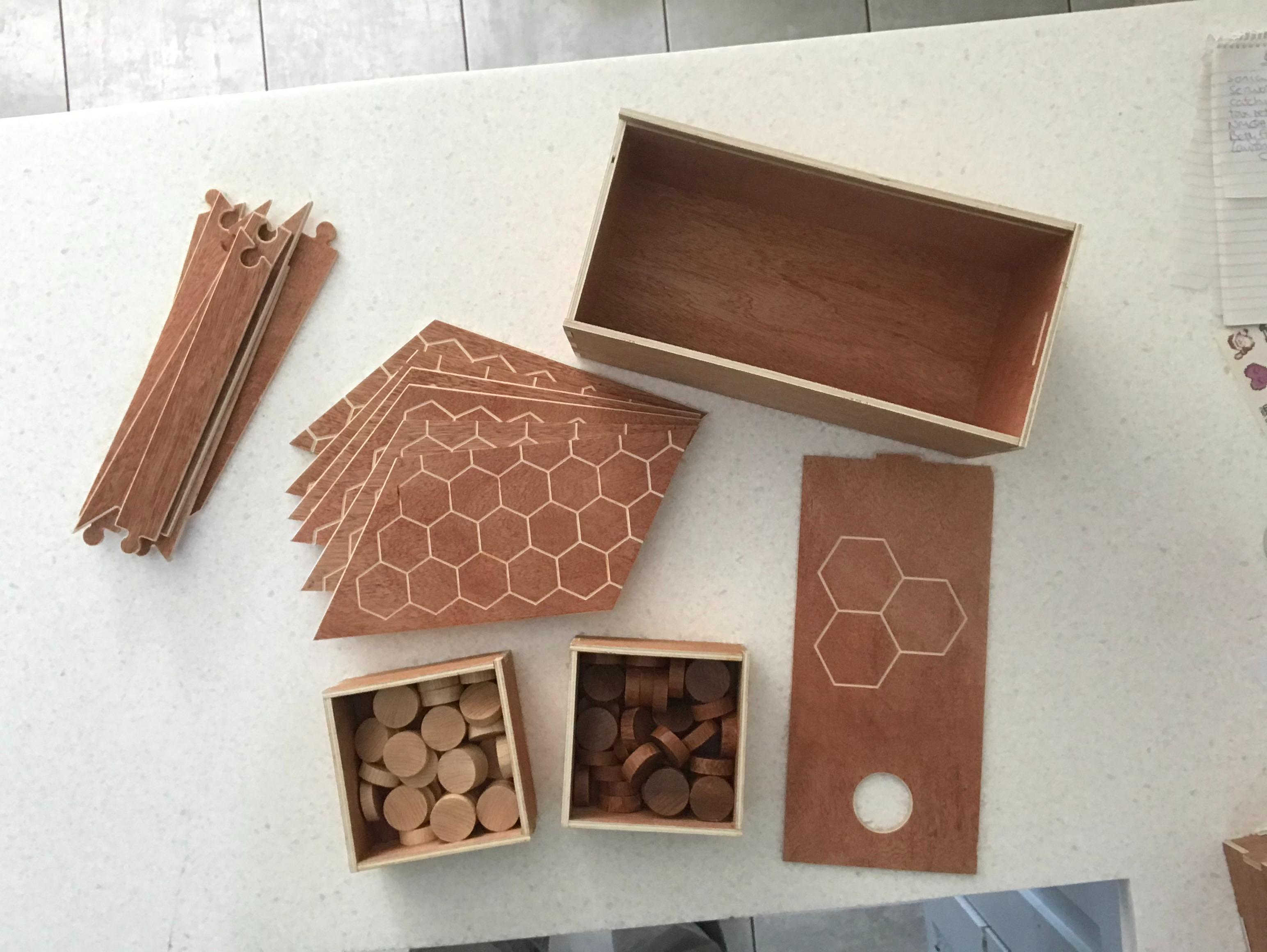

1 MB3 - Box contents.jpg
915 kB4 - Board assempled.jpg

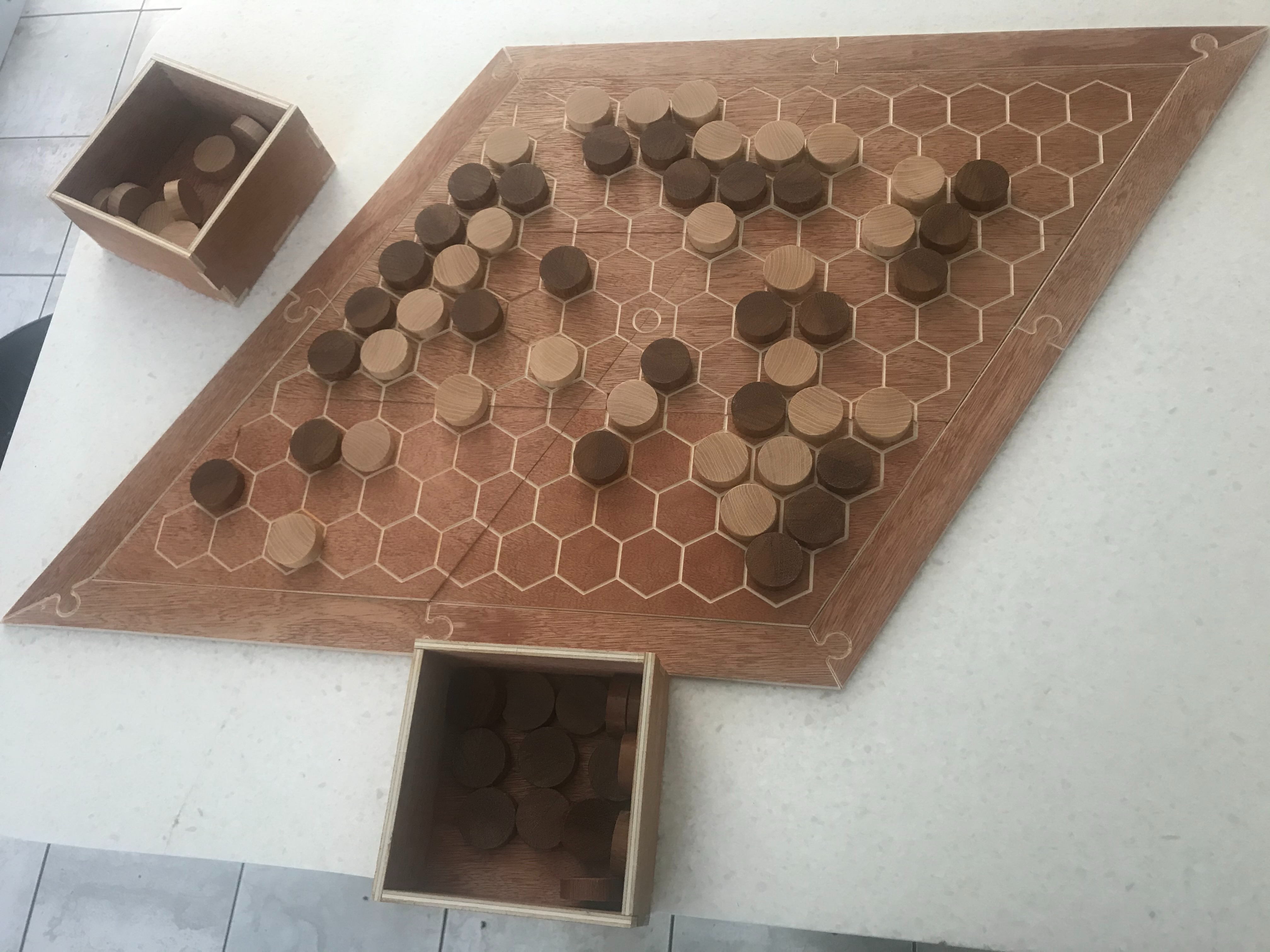

957 kB5 - playing a game.jpg

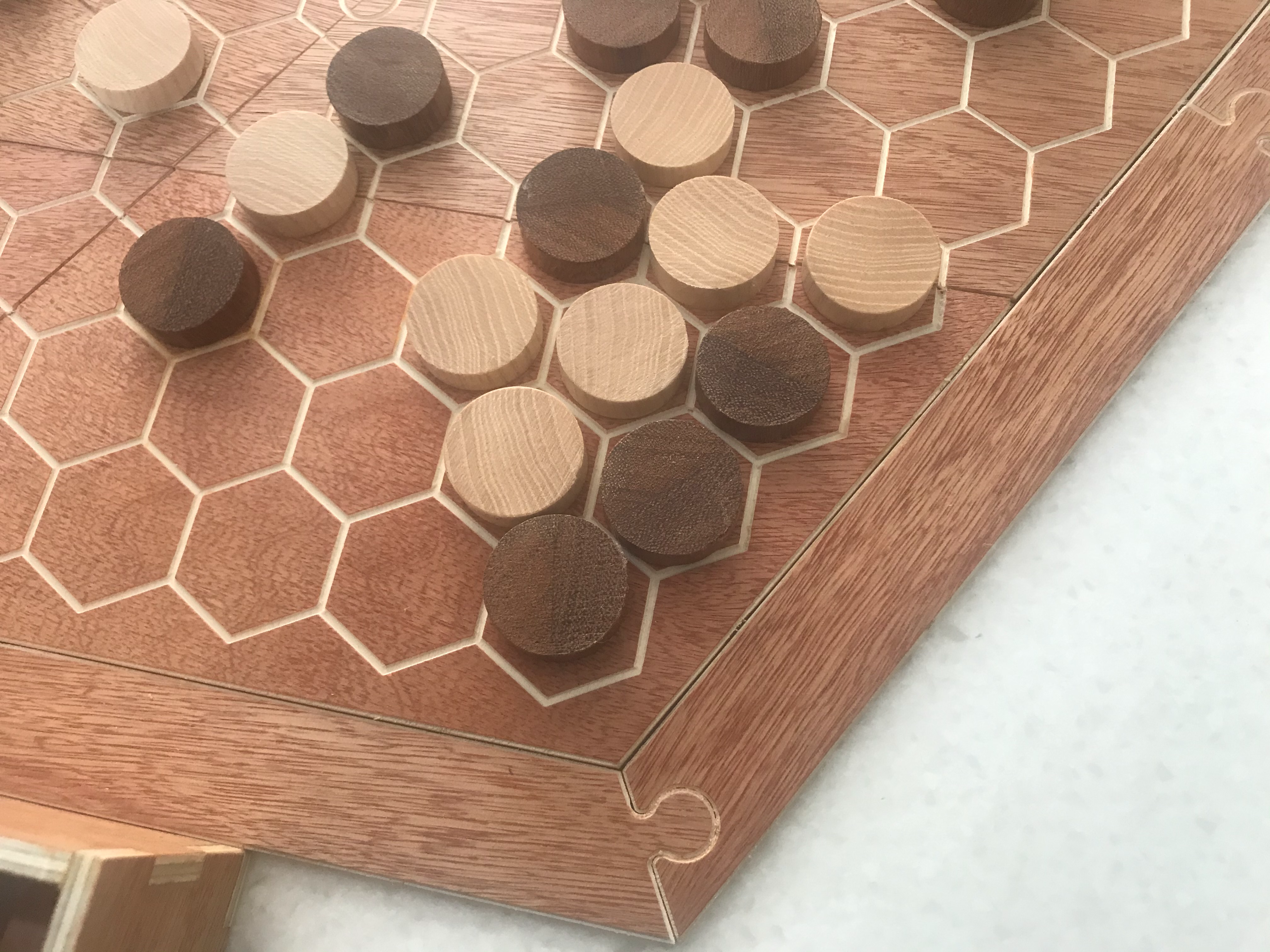

2 MB6 - Board with corner and pieces.jpg
2 MB7 - token cutting.jpg
227 kBBoard - Middle.svg
17 kBBoard - Top left and bottom right.svg
15 kBBoard - Top Right and bottom left.svg
17 kBBoard edging - Boundary strips.svg
7 kBBox - Base.svg
2 kBBox - Ends.svg
3 kBBox - Lid.svg
3 kBBox - Side a.svg
3 kBBox - Side b.svg
2 kBHex Instructions.docx
8 kBHex Instructions.odt
26 kBHex Instructions.pdf
33 kBtrays bases.svg
2 kBtrays sides.svg
2 kB
Materials
Board: 160x300x5.25mm ply (6 of)
Edge: 160x300x5.25mm ply (2 of)
Box: 160x300x5.25mm ply (5 of)
Trays: 160x300x5.25mm ply (3 of)
Pieces: 30mm diameter x10mm White hard wood (40 of)
same in dark wood
Finish of choice (e.g. wax)
Tools
Shaper Origin,
engraving bit, cut out bit (e.g. 3mm)
(useful to also have ~1mm bit)
Lathe (if making your own pieces)
Instructions
Full instructions / background are included in the downloadable files (in odt/docx/html). Also some pictures as well as a full set of svg files. The box and tray svg files are specific to the ply thickness I used, being 5.25mm. The depth of the notches will need to be adjusted for the thickness of your ply. The ply thickness for the board and edges of the board could be anything - the svgs are not specific to ply thickness. PS. Thank you Mfsamuel for your Tsuro plans which inspired me to do this.
