Block Plane Gallery
A nice little gallery for your collection of block planes, with room for spare parts and oil. Now you'll just have to get a few more block planes and bull-nose rabbet planes to fill it out. We always need more tools!
34
Storage & Organization
Files Included (1)

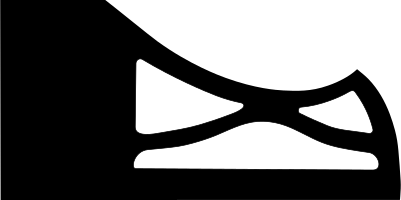

Plane Gallery Divider.svg
4 kB
Materials
- Hardwood dividers (6): 5/16” x 4” x 8-1/8"
- Hardwood side panels (2): 5/16” x 4-1/2” x 8-1/8”
- Plywood divider fixture (1): 2 pcs. approximately 8” x 14”
- MDO gallery bottom (1): 1/2” x 8” x 23-1/2” (will end up approx. 7-11/16” after trimming on final assembly)
- Hardwood gallery top (1): 3/8” x 2-3/4” x 24-7/8”
- Hardwood gallery back (1): 1/4” x 4-1/2” x 23-1/2” (cut to fit at assembly)
- Hardwood bottom trim (1): 3/8” x 11/16” x ~24-1/8” (exact measurement at assembly)
- Double-sided tape
- Wood glue
- Milk paint
- Shellac
Tools
- Jointer
- Planer
- Table Saw
- Shaper Origin
- Shaper Workstation
- Clamps
Instructions
This project should be constructed from 1/4-sawn or rift-sawn material to help alleviate potential problems from egregious wood movement inherent in flat-sawn wood. For full video instructions, visit shapertools.com/roland-johnson-masterclass
