Dragonfly Inlay

By ShaperAssist | Created August 19th, 2019 | Published August 27th, 2019 | Updated August 27th, 2019

uploaded project image
project image thumbnail
project image thumbnail

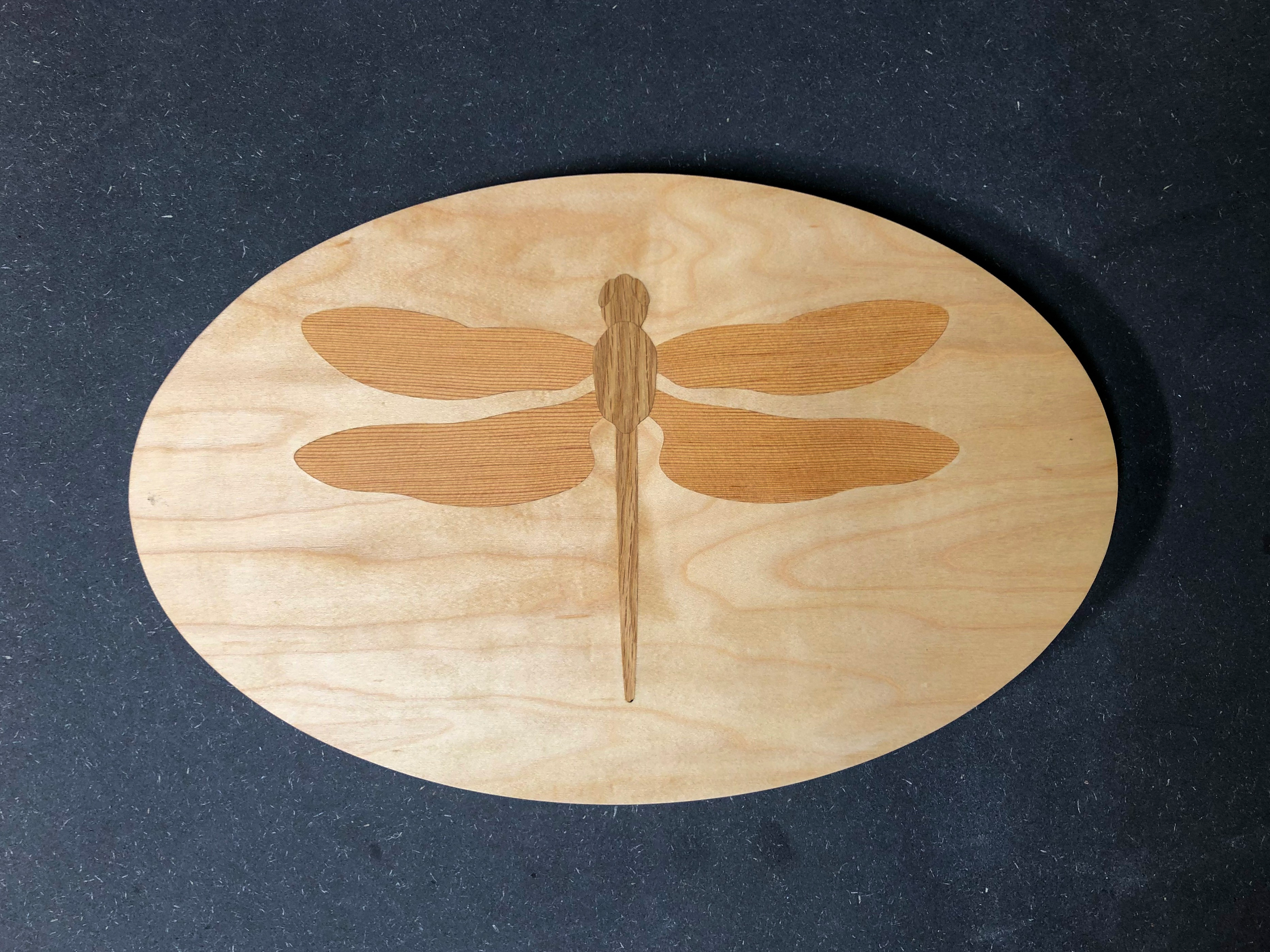

A beautiful Dragonfly inlay project

1 hr





Files included (3)
dragonfly wings.svg
3 kB
Dragonfly body.svg
3 kB

1/2" =< Base 1/8" inlay pieces Pictured: Eyes, Head, Body, Tail: Red Oak Wings: Douglas Fir Base: 3/4" Maple Ply
1/8" Bit 1/4" Bit (optional)

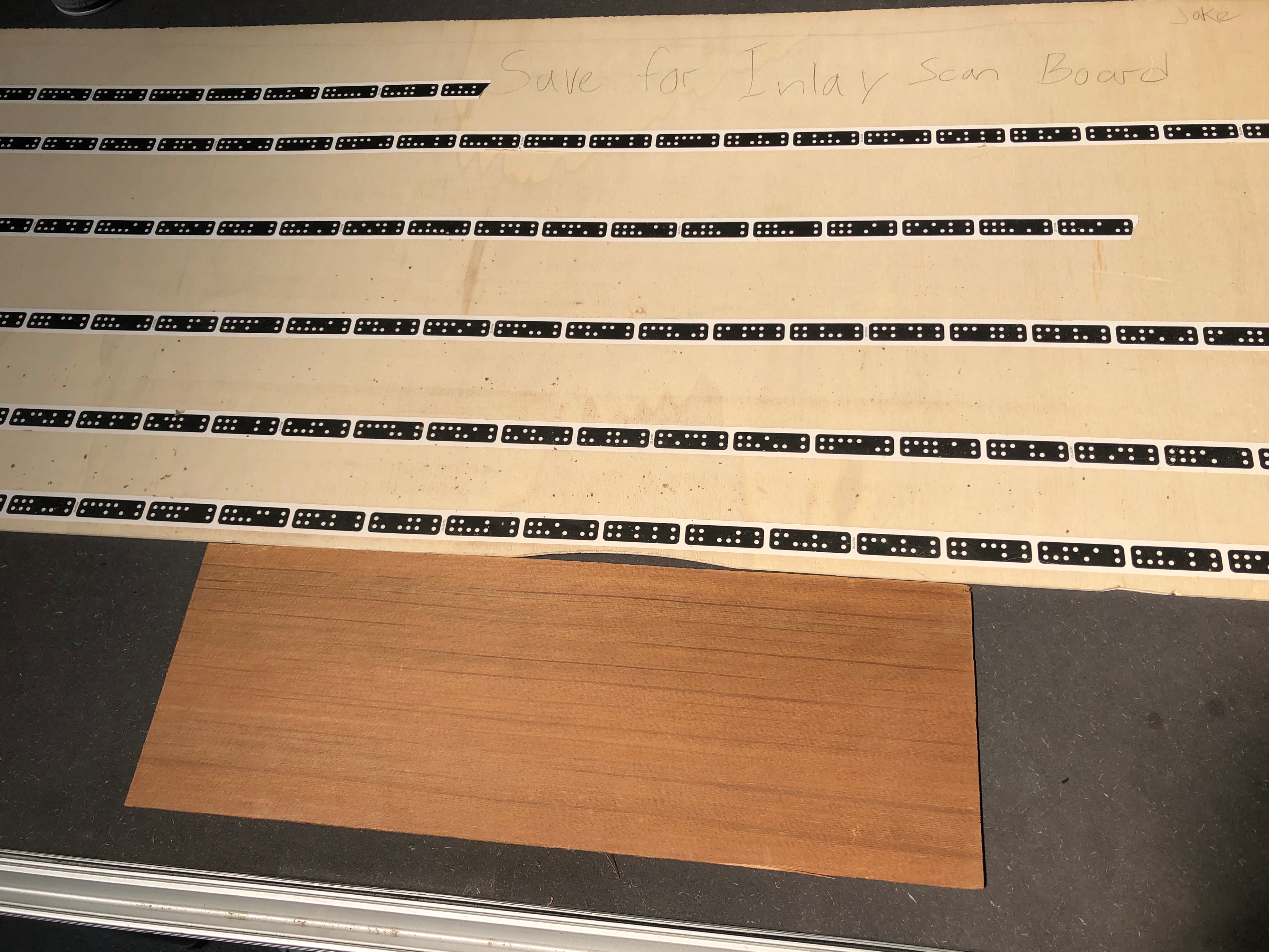

Cutting Inlay Pieces: Start with 1/8'" stock and secure with double sided tape to spoil board. for best results, Shaper Tape and stock should be at same height. Its best to place Shaper Tape on an "Inlay Board" made out of 1/8" ply and secure adjacent to stock. This will create a flat plane and be reusable for all future inlay cuts. (see picture) Cut each inlay piece with 1/8" bit, make first cut with 0.01" offset before your finishing second pass. Pocketing Stock: Start with cutting full outline with 1/8" bit with 0.01" offset at a 0.12" depth, then switch to pocket cut and remove all material. To save time, it is best to switch to 1/4" bit for pocketing. Finally, complete finishing cut with 1/8" bit. After finishing pocket cut, insert Wings pieces first. It is best to prep inlay and stock edges by hand sanding a slight taper. This helps the pieces sink together better. If the pieces are still too tight, cut the stock outline again with a -0.005 offset. When inserting, make sure to apply health amount of glue to both sides and covering all edges. A strong connection will reduce the possibility of tear out during following cuts. After inserting Wings, sand surface flat to maintain accuracy. after completing the Wings, Repeat pocketing and inlay steps for head body and tail. Finally, pocket and inlay the eyes. Allow 24 hours in between steps to ensure glue has set up before cutting again.

This project is licensed under the Creative Commons Attribution - NonCommerical - Share - Alike license
