Morley Shop Stool
Tackle complex joinery in this build, including angled mortise and tenons, finger joints, and seat rails with expansion slots. With its modern, angular design, this stool will look equally at home in your shop or in your house.
135
Furniture
Files Included (23)

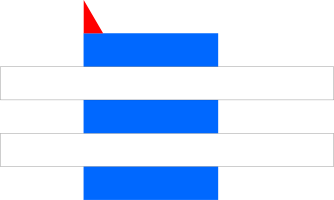

footrest_V1.svg
710 Bfront_leg_finger_joint_V1.svg
3 kBfront_leg_mortise_V1.svg
4 kBfront_leg_profile_V2.svg
1 kBfront_rail_finger_joint_V1.svg
2 kBfront_stretcher_mortise_V1.svg
815 Bfront_stretcher_V1.svg
7 kBjoinery_fixtures_V1.svg
34 kBleg_mortising_fixture_V3.svg
10 kBrear_leg_finger_joint_V2.svg
2 kBrear_leg_mortise_V1.svg
5 kBrear_leg_profile_V2.svg
1 kBrear_rail_finger_joint_V2.svg
2 kBrear_stretcher_V1.svg
7 kBseat_front_V2.svg
2 kBseat_rail_A_V2.svg
6 kBseat_rail_B_V2.svg
3 kBseat_rear_V3.svg
2 kBseat_stretcher_tenon_V1.svg
7 kBShop Stool Drawings.pdf
1 MBside_stretcher_front_tenon_V1.svg
7 kBside_stretcher_profile_V1.svg
789 Bside_stretcher_rear_tenon_V1.svg
7 kB
Materials
Hardwood:
(1) 10" L x 2.5" W x 1" T
(1) 15" L x 4" W x .875" T
(1) 16" L x 1.25" W x 1" T
(1) 16" L x .75" W x 1" T
(2) 15.5" L x 1.25" W x .75" T
(1) 15" L x 6.91" W x .773" T
(1) 15" L x 5.839" W x .763" T
(1) 14" L x 5" W x 1.25" T
(1) 14" L x 5" W x 1.25" T
(1) 28" L x 4" W x 1.25" T
(1) 28" L x 4" W x 1.25" T
Plywood:
(1) 16.5" W x 9" H x .5" T
(1) 12.75" W x 9.25" H x .5" T
Felt:
(2) 13.5" L x 7" W x .187" T
Tools
Shaper Origin
Shaper Workstation
8mm x 35mm Up-Spiral Finishing Bit
8mm Collet
1/4” X 3/4” Up-Spiral O-flute Router Bit
1/4” Collet
Jointer
Planer
Table Saw
Router Table
Clamps
Instructions
Download the Shop Stool Drawings PDF for detailed plans and notes.
