Wall-Hanging Record Cabinet

By Philip7
|
BY-NC-SA 4.0 License
|
Updated Fri Jun 28 2024

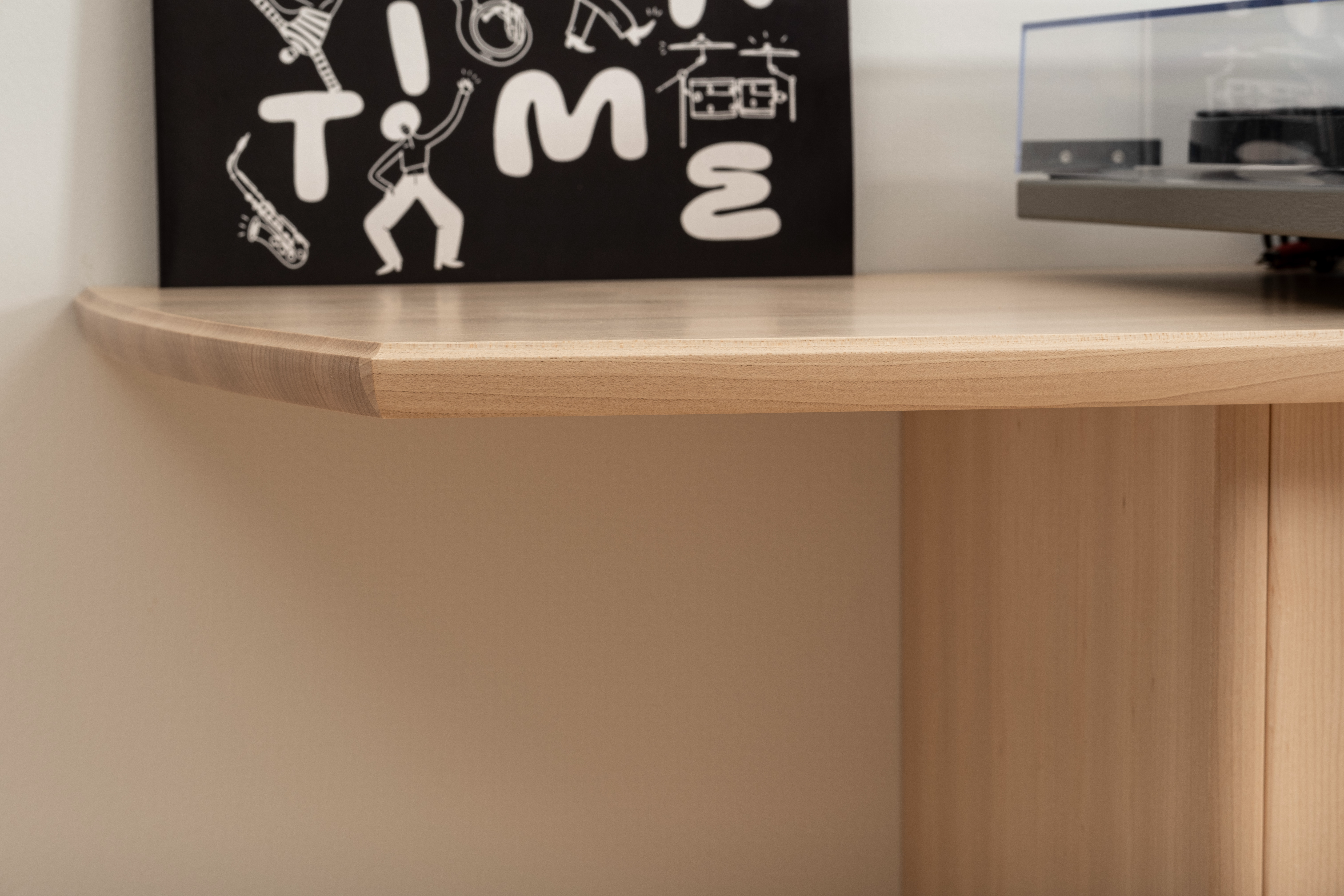

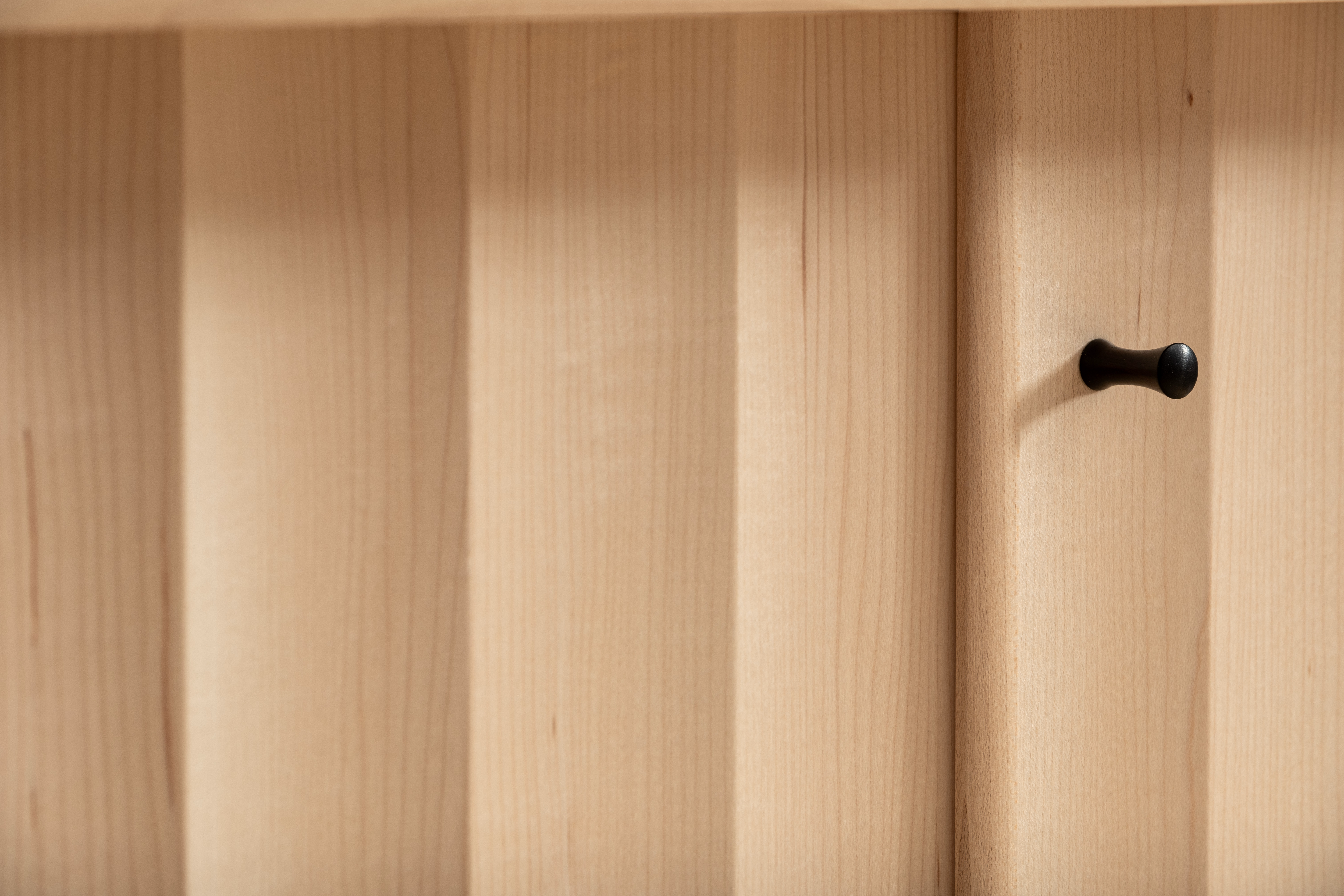

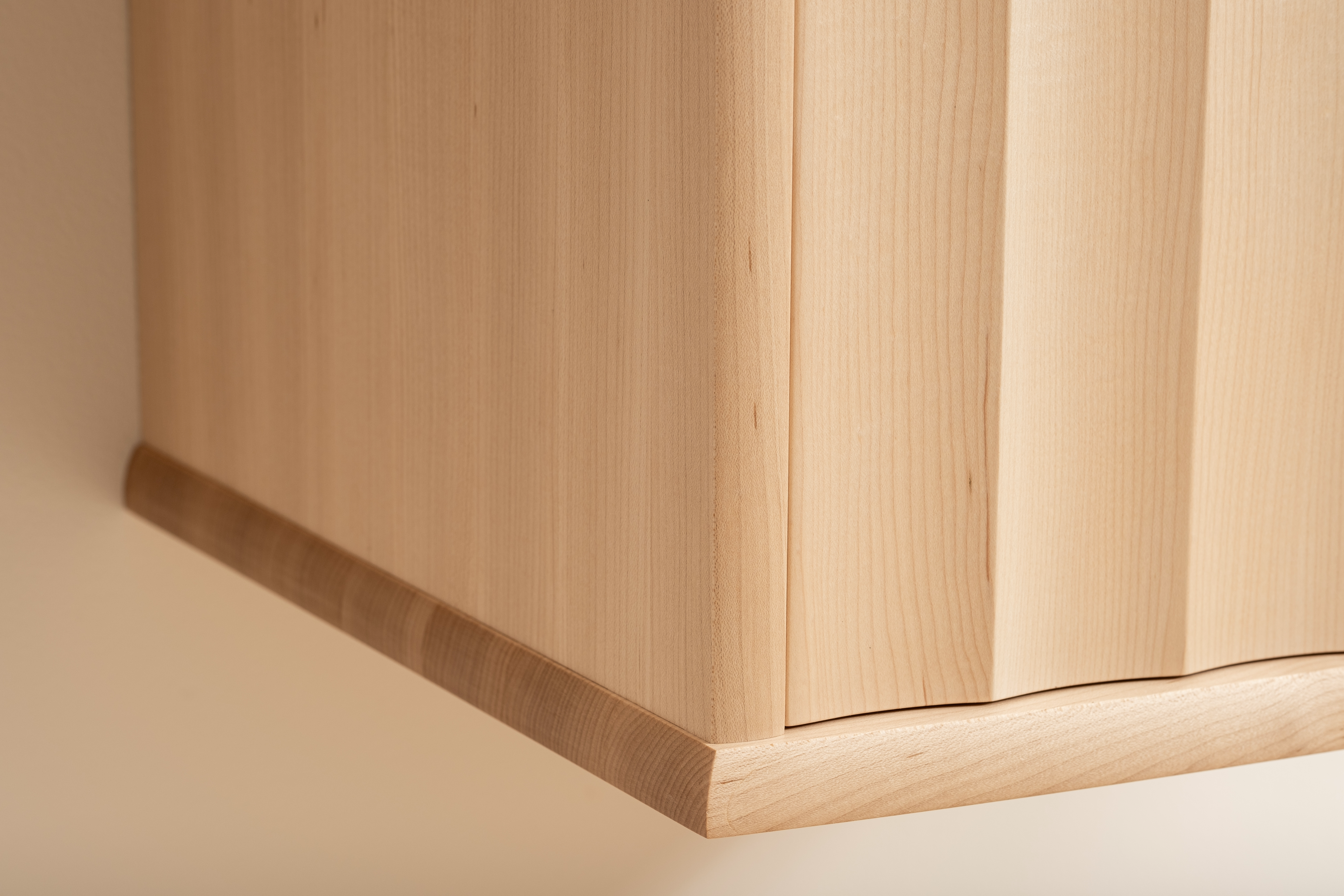

This modern piece not only keeps your vinyl organized but also provides an elegant display for your turntable and amplifier. With complex elements like curved and fluted doors, custom mortising fixtures, and tasteful edge treatments, this build offers an opportunity to level up your woodworking skills. Tackle this intricate project and take pride in creating a sophisticated unit that combines advanced design techniques with both storage and display functionality.

> 2 hr
Advanced

63

Furniture

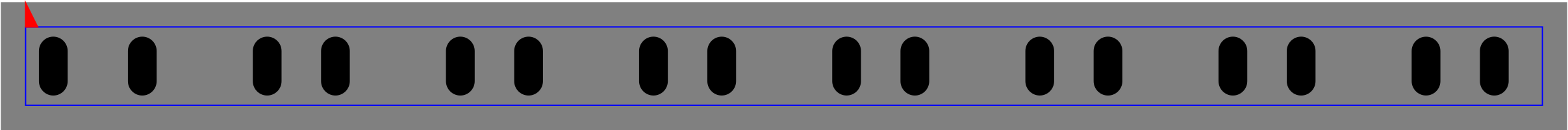

Files Included (11)

  • Bottom Panel.svg

    10 kB
  • Fixture Parts A.svg

    1 kB
  • Fixture Parts B.svg

    2 kB
  • Fixture Parts C.svg

    1 kB
  • Hinge Mortise and Dado - Left Panel.svg

    2 kB
  • Hinge Mortise and Dado - Right Panel.svg

    3 kB
  • Hinge Mortises - Door.svg

    3 kB
  • Shop Drawings - Wall Hanging Record Cabinet.pdf

    434 kB
  • Tenons - Left Panel.svg

    7 kB
  • Tenons - Right Panel.svg

    8 kB
  • Top Panel.svg

    10 kB

Materials

Hardwood:

(1) 14-1/2" x 14-1/2" x 13/16"

(1) 15-3/4" x 14-1/2" x 13/16"

(1) 20-7/16" x 16-1/16" x 7/8"

(1) 35-1/4" x 17-7/8" x 7/8"

(7) 12-7/8" x 2-1/4" x 3/4"

(1) 12-7/8" x 2.355" x 3/4"

(1) 12-7/8 x 9/16" x 5/16"

Plywood:

(1) 19" x 13-15/16" x 1/2"

(1) 12-1/2" x 3-15/16" x 3/4"

(1) 29-1/2" x 12" x 3/4"

(1) 21-1/2" x 6-3/8" x 3/4"

Miscellaneous:

(4) Soss 100 Concealed Hinges

(2) Brusso Ball Catches

(1) Door Pull

Mounting Hardware

Tools

Shaper Origin

Shaper Workstation

8mm x 35mm Up-Spiral Finishing Bit

8mm Collet

Jointer

Planer

Table Saw

Router Table

Magnate 5865 Fingernail Bit, R1.0"

Yonico 13151Q Coving Bit, R0.125"

Yonico 16171 Coving Bit, R2.22"

Clamps

Instructions

Build notes are documented in the Shop Drawings PDF. Questions or comments? Check out the forum post: https://community.shapertools.com/t/new-philip-morley-cabinet-project/13695 Enjoy!
