Re work of the Shaper Origin Tool kit to fit into a mini Systainer

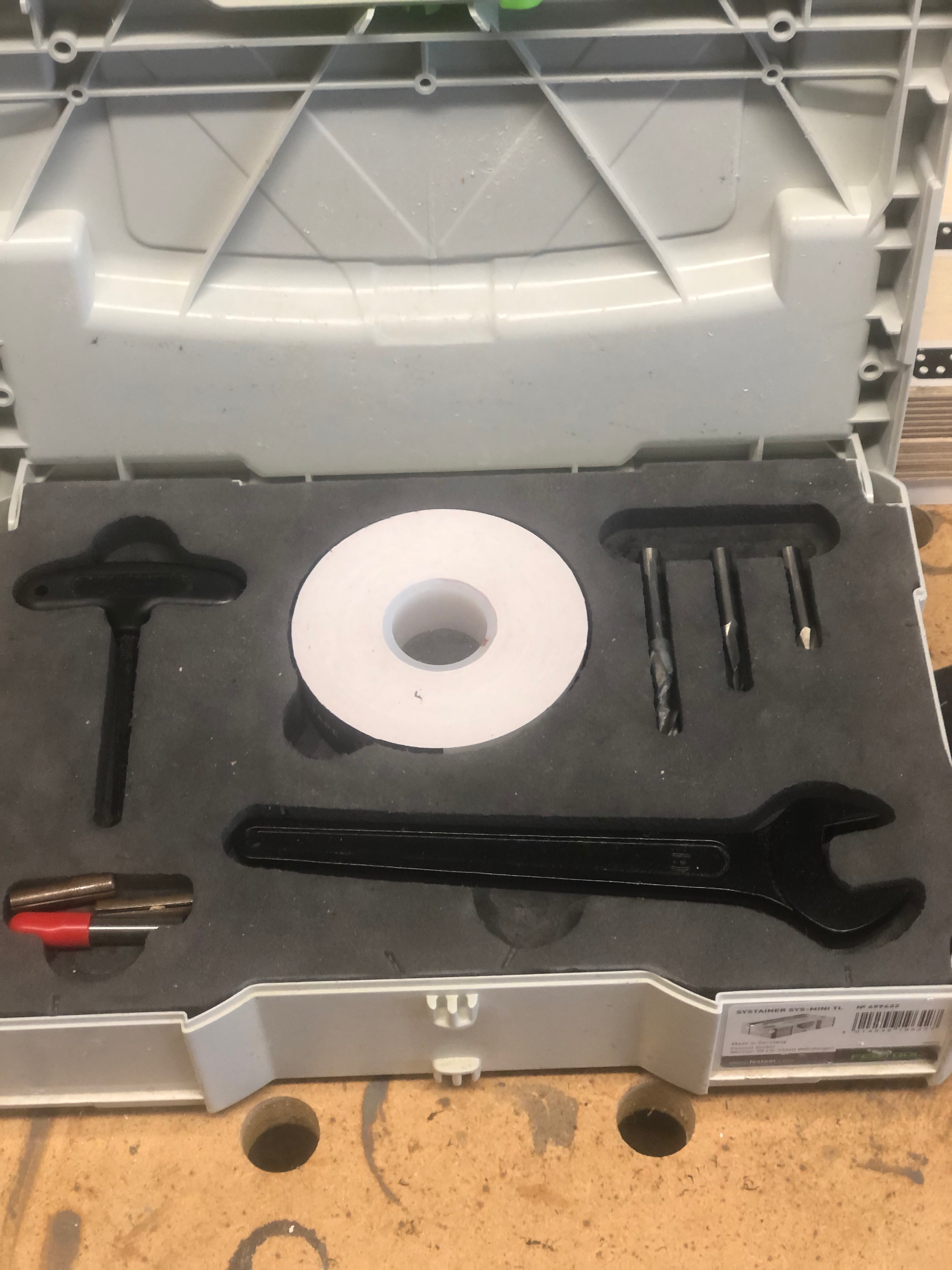

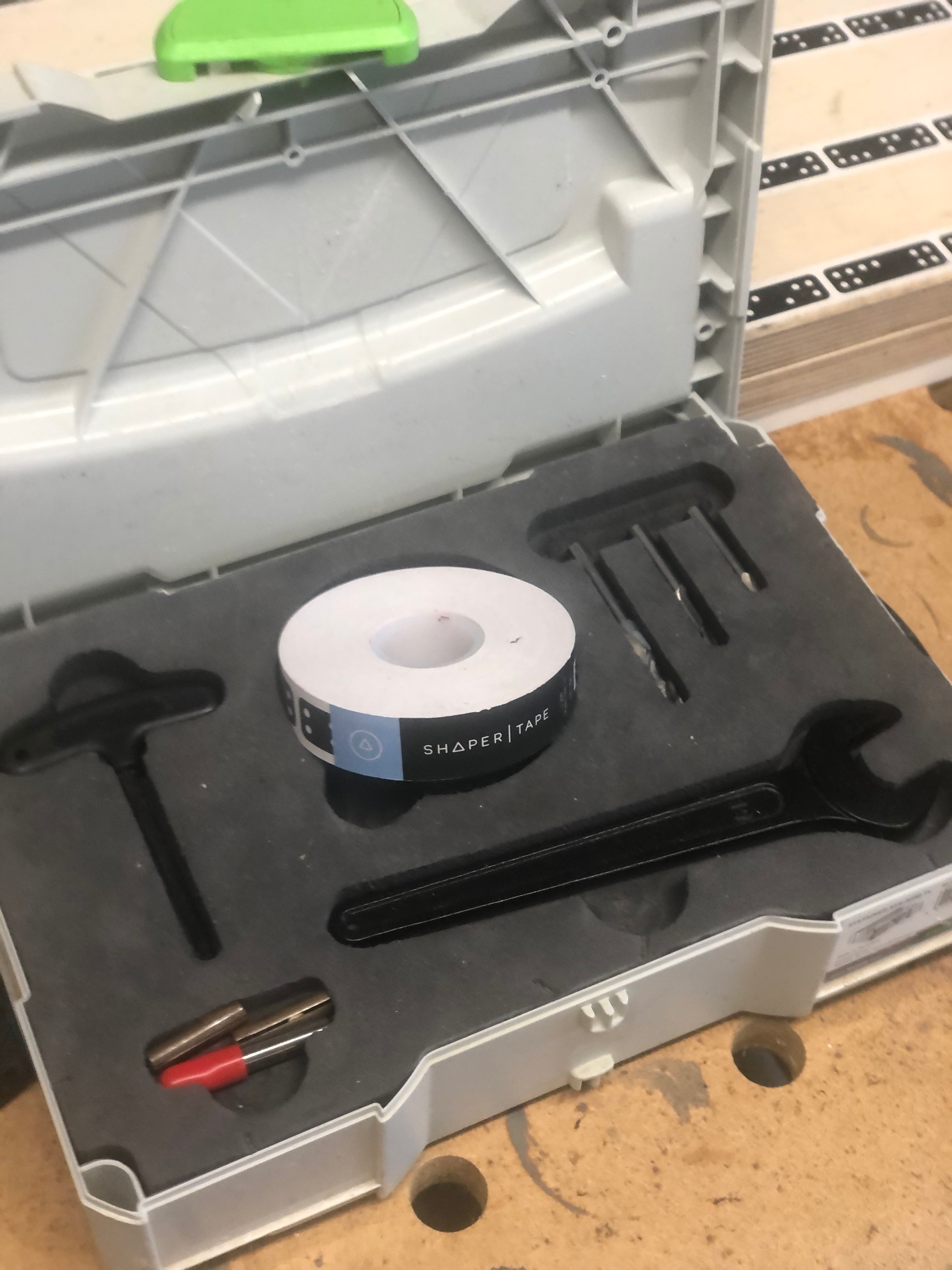

I figured that seen as in origin came in a systainer it was only right its tool had the benefit of a systainer I re worked the already available tool kit done by shaper tools to fit nicely in the systainer insert I designed
13
Storage & Organization
Files Included (1)
shaperkitsystainer.svg
5 kB
Materials
300mmx200mm polyethylene (closed cell foam)I used some 50mm left overs I had but 40mm would be a better option
Tools
shaper origin
tape board at the same co planer
6mm/1/4 inch up cut cutter
double sided tape
Vacuum
Instructions
cut the inside lines of the tools then pocket at each required tool depth for the spanner in would offset it by 4mm for a more snug fit cut the systainer profile out at the end on an outside cut its a really nice snug fit into the systainer so no need yo offset the release cut
