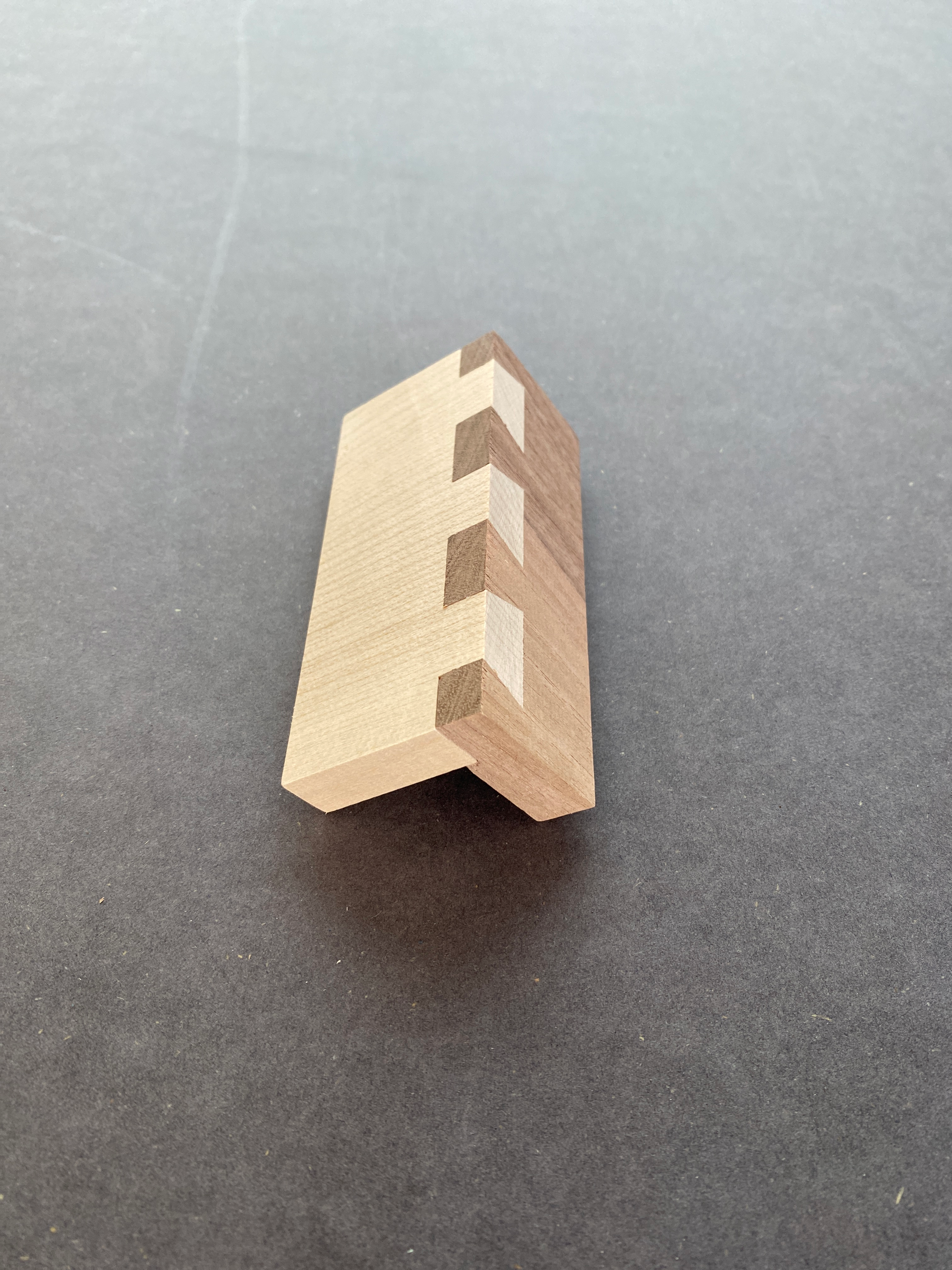

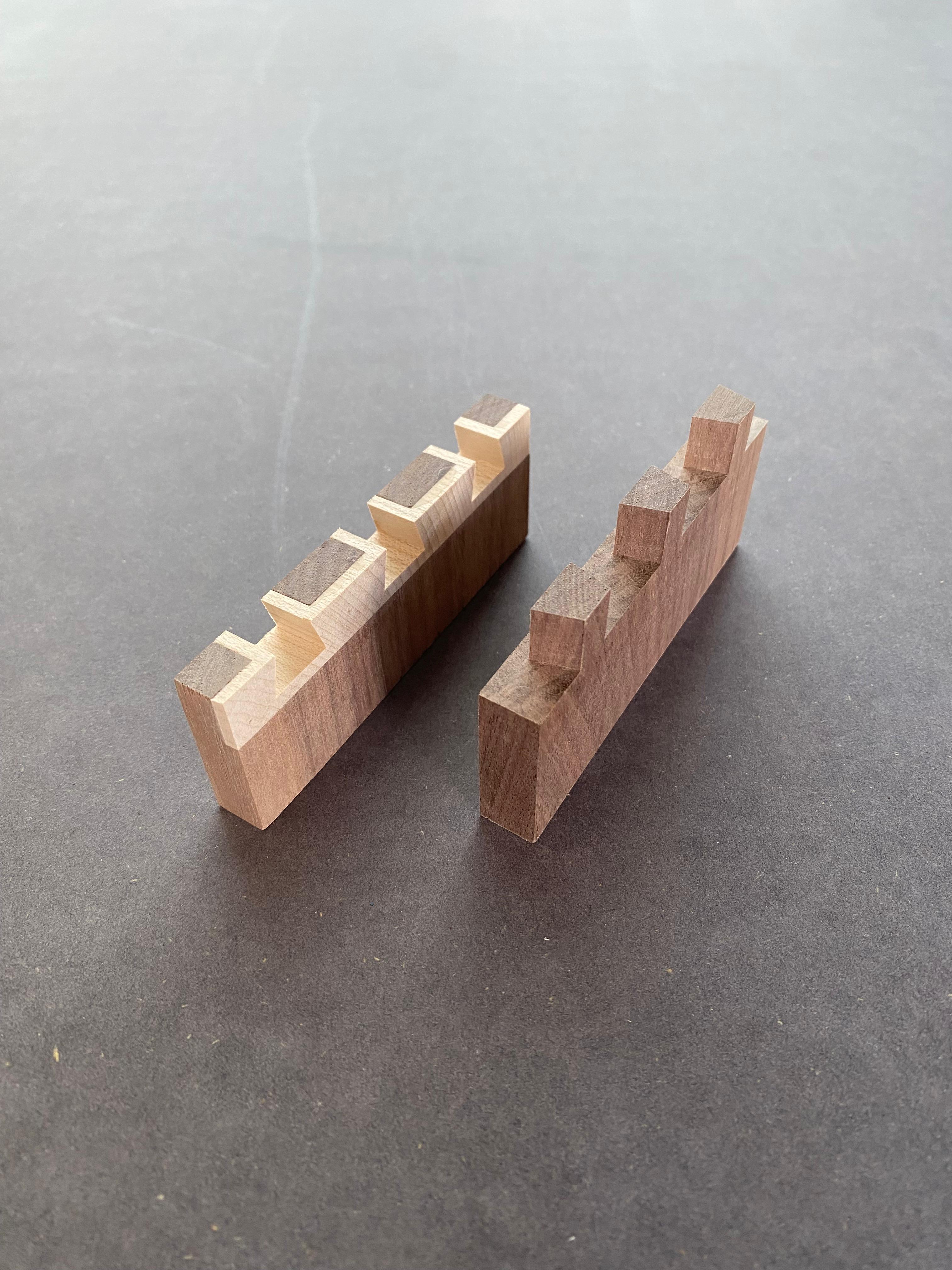

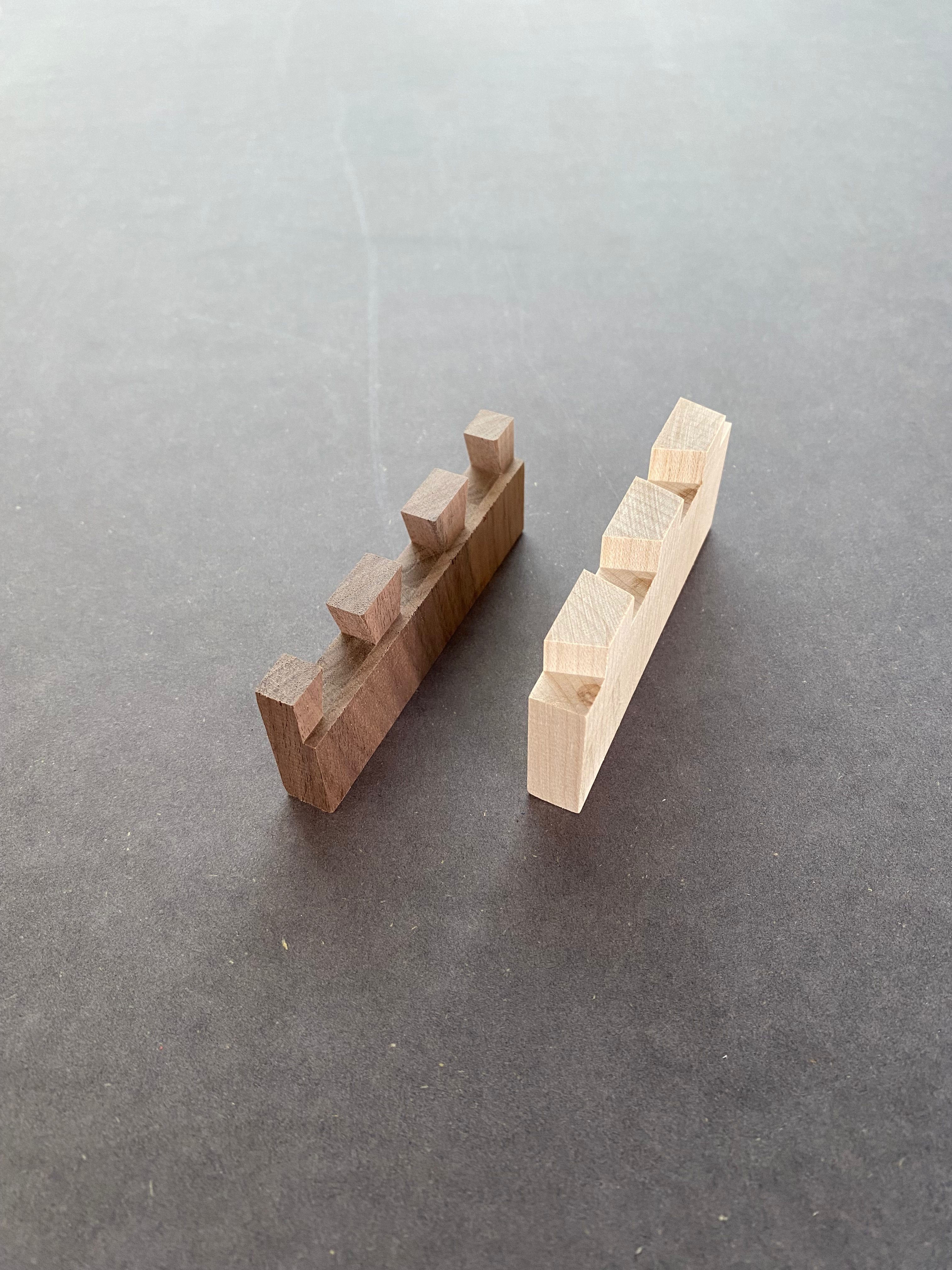

Double Dovetails

By Andy_R
|
BY-NC-SA 4.0 License
|
Updated Thu Feb 20 2025

Doppelte Schwalbenschwanzzinken ausgelegt auf den Shaper Zinkenfräser: https://www.shapertools.com/de-de/store/product/15-deg-dovetail-router-bit Double dovetails designed for the Shaper dovetail bit: https://www.shapertools.com/de-de/store/product/15-deg-dovetail-router-bit

1 hr
Intermediate

14

Joinery

Files Included (4)

  • schwalben-gross.svg

    3 kB
  • schwalben-klein.svg

    2 kB
  • zinken-gross.svg

    2 kB
  • zinken-klein.svg

    3 kB

Materials

2 x Nuss / Walnut: 180 x 100 x 12 mm

1 x Ahorn / Maple: 150 x 100 x 12 mm

Tools

Origin

Workstation

6 mm Standard

15* https://www.shapertools.com/de-de/store/product/15-deg-dovetail-router-bit

Instructions

Die Frästiefen sind in den Dateien hinterlegt. Achtung, Autopass muss beim 15* Zinkenfräser immer deaktiviert sein! Je genauer du arbeitest (Rastern, Werkstück einspannen etc.) desto genauer werden deine Zinken. Weitere Infos zu Zinken: https://hub.shapertools.com/creators/5c89120f12cede0017df3727/shares/5eadcead254f6b000fe6c885 Fräse schwalben-gross mit dem 6 mm Fräser grob vor, Achtung, lass 4 mm Versatz seitlich und 0.5 mm unten für den Zinkenfräser stehen. Nun kannst du mit dem 15* Zinkenfräser nachfräsen, stelle Durchmesser 13.8 mm ohne Versatz ein und fräse direkt auf die ganze Tiefe. Achtung Autopass muss dafür deaktiviert sein! Fräse zinken-gross mit dem 6 mm Fräser, stelle im Schlichtdurchgang -0.05 mm Versatz ein, damit die Zinken minimal Spiel haben. Leime die beiden Stücke zusammen und trenne anschließend den Überstand vom zinken-gross-stück ab. Nun kannst du in das fertig verleimte Stück wieder in die Workstation einspannen und darauf die Datei schwalben-klein platzieren. Wie bei schwalben-gross kannst du auch hier mit dem 6 mm Fräser vorfräsen, überprüfe dabei, ob die Fräsnut genau mittig in den Zinken liegt, ansonsten musst du die Datei evtl. um wenige Zehntel mm verschieben. Wenn das Passt kannst du mit dem 15* Zinkenfräser nachfräsen, Einstellungen wie bei zinken-gross. Der letzte Schritt sind nun die zinken-klein, diese sollten keine Herausforderung mehr darstellen. Wichtig ist hier, sauber mit Versatz zu arbeiten. _________________________________________________________________________________________________ The milling depths are already written in the files. Attention, Autopass must always be deactivated on the 15* tine cutter! The more precisely you work (gridding, clamping the workpiece, etc.), the more precise your dovetails will be. You can find more detailed information here: https://hub.shapertools.com/creators/5c89120f12cede0017df3727/shares/5eadcead254f6b000fe6c885 Roughly mill schwalben-gross with the 6 mm milling cutter. Attention, leave 4 mm offset to the side and 0.5 mm at the bottom for the 15* dovetail bit. Now you can re-mill with the 15* dovetail bit, set the diameter to 13.8 mm without any offset and mill directly to the entire depth. Attention, Autopass must be deactivated for this! Mill zinken-gross with the 6 mm milling cutter, set -0.05 mm offset in the finishing pass so that the tails have minimal play. Glue the two pieces together and then separate the excess from the zinken-gross piece. Now you can clamp the finished glued piece back into the workstation and place the file schwalben-klein on it. As with schwalben-gross, you can also pre-mill here with the 6 mm bit. Check whether the milling groove is exactly in the middle of the tails, otherwise you may have to move the file by a few tenths of a mm. If that fits, you can re-mill with the 15* dovetail bit, settings as for zinken-gross. The last step is zinken-klein, these should no longer pose a challenge. The important thing here is to work cleanly with an offset.
