Tusked Tenon Bench V002 (Metric Version)

By Andy_R
|
BY-NC-SA 4.0 License
|
Updated Mon Jan 30 2023

A slightly different Version of Jake Stillwells beautiful bench. https://hub.shapertools.com/creators/5ad90531ce05ff000f5c605c/shares/61aa695eec6cbf001d84635c In this version all of the joinery is done without using glue or fasteners, therefore it can easily be dismantled.

> 2 hr
Advanced

110

Furniture

Files Included (7)

  • Chisel_Guide.svg

    800 B
  • Leg_Front.svg

    1 kB
  • Leg_Top.svg

    3 kB
  • Lock_Dovetail.svg

    4 kB
  • Stretcher.svg

    2 kB
  • Top.svg

    12 kB
  • Tusk.svg

    2 kB

Materials

1 x Top 920 x 300 x 38 mm

2 x Legs 382 x 206 x 30 mm

1 x Stretcher 776 x 127 x 30 mm

2 x Lock Dovetail 194 x 100 x 25 mm (to cut later)

1 x Tusks 200 x 130 x 25 mm

Tools

Origin

Shaper Dovetail bit

Double sided Tape

Workstation

Clamp

Instructions

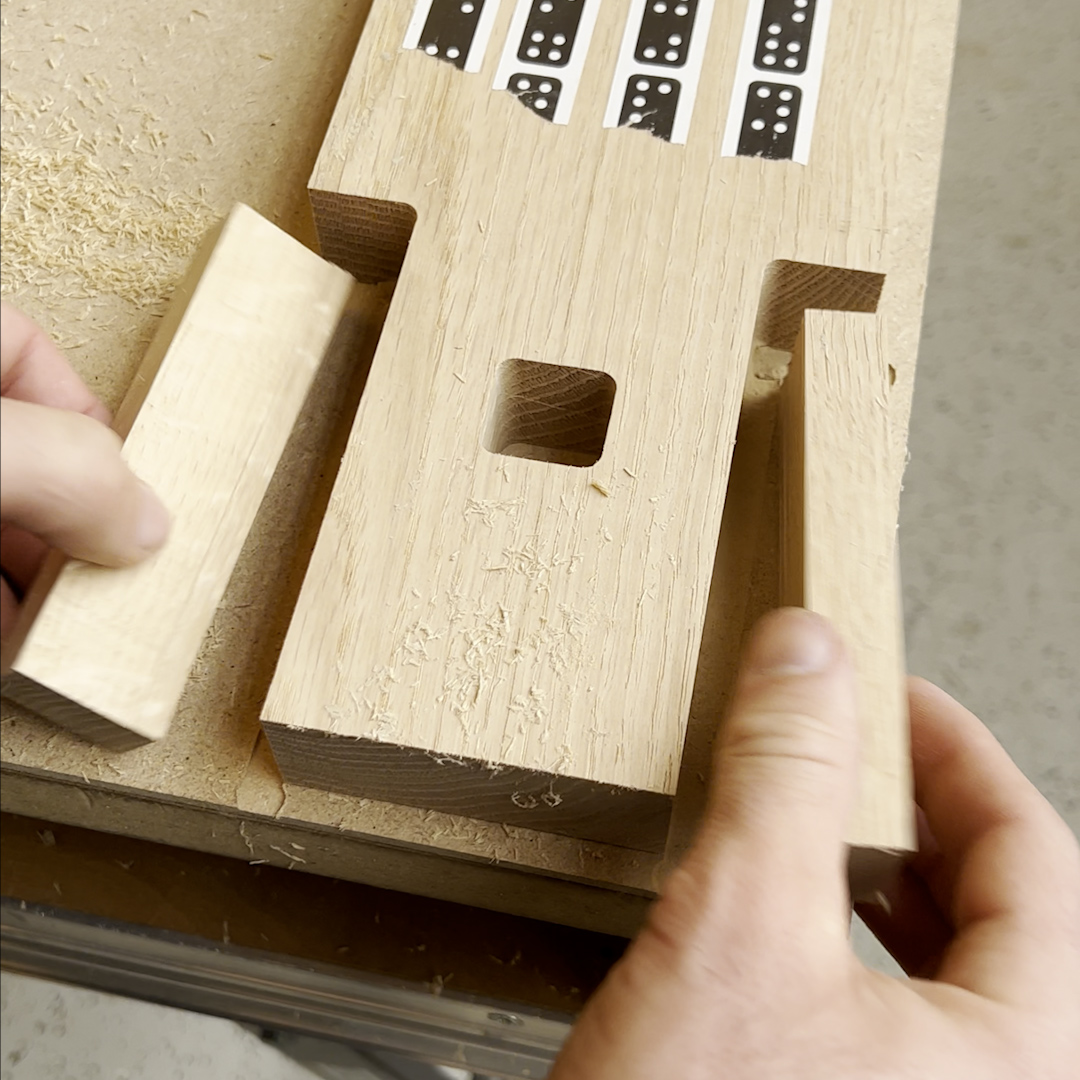

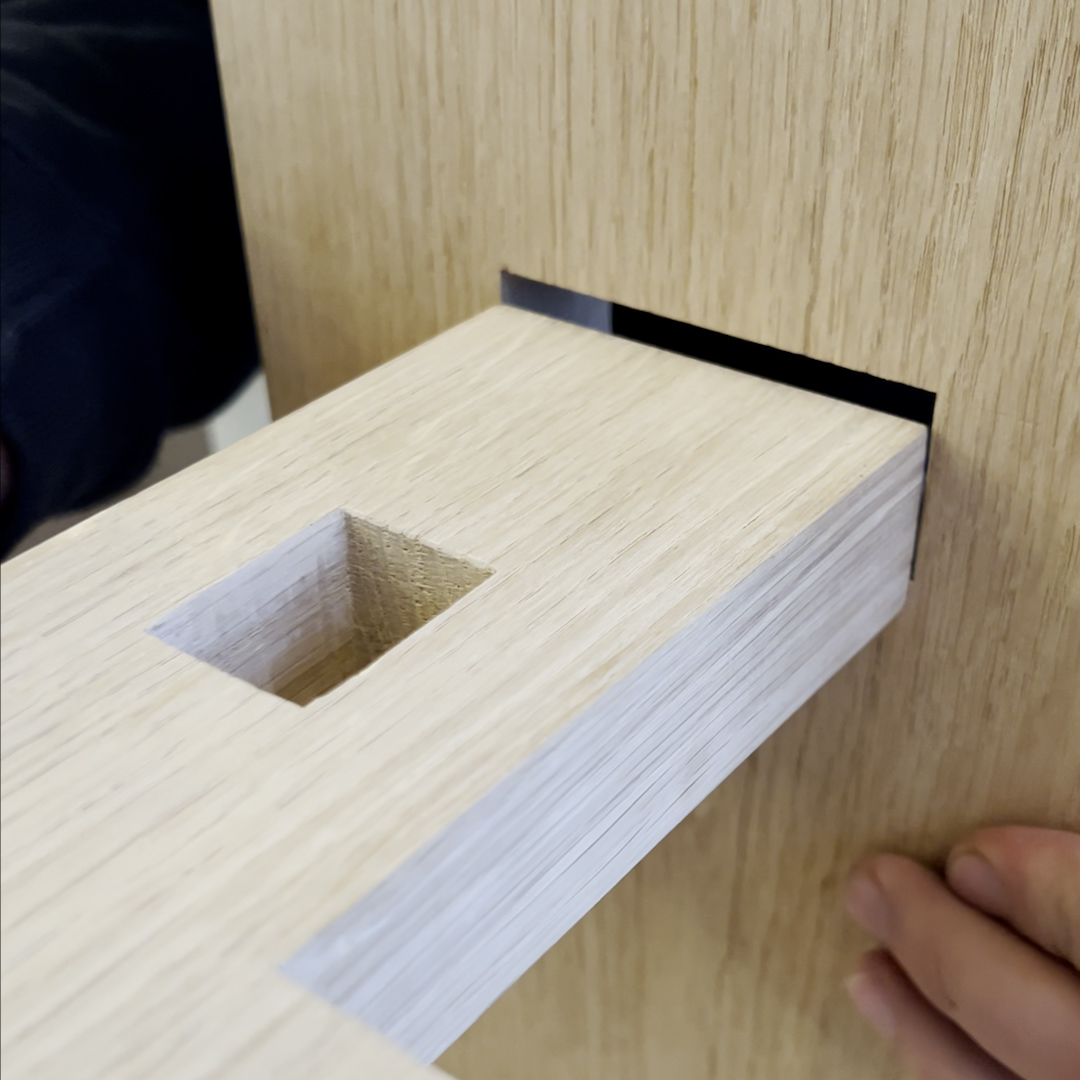

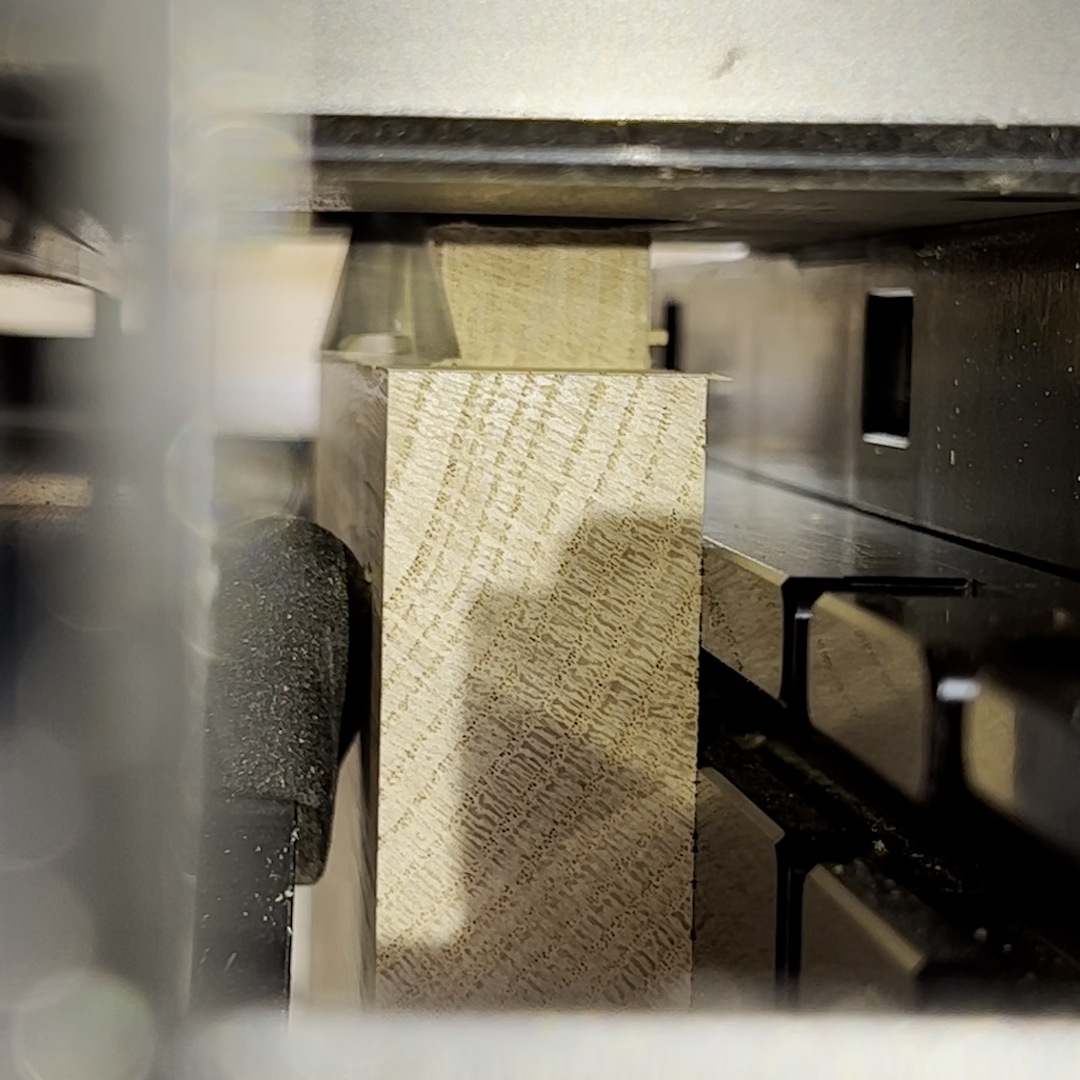

Tusk joinery as in the original project (instructions in PDF attached in Jake's project) Cut the Dovetails to 12 mm depth, use diameter 7.37 mm for dovetail bit Cut the Mortises to 12,2 mm depth, use diameter 13.8 mm / offset increasing in 0.05 mm steps to achieve perfect fit Don't forget to mirror the "Lock_Dovetail"
