Schablone für Plattenverbinder / panel connector jig

By SmoothOperator | Created August 17th, 2020 | Published August 17th, 2020 | Updated August 17th, 2020

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail

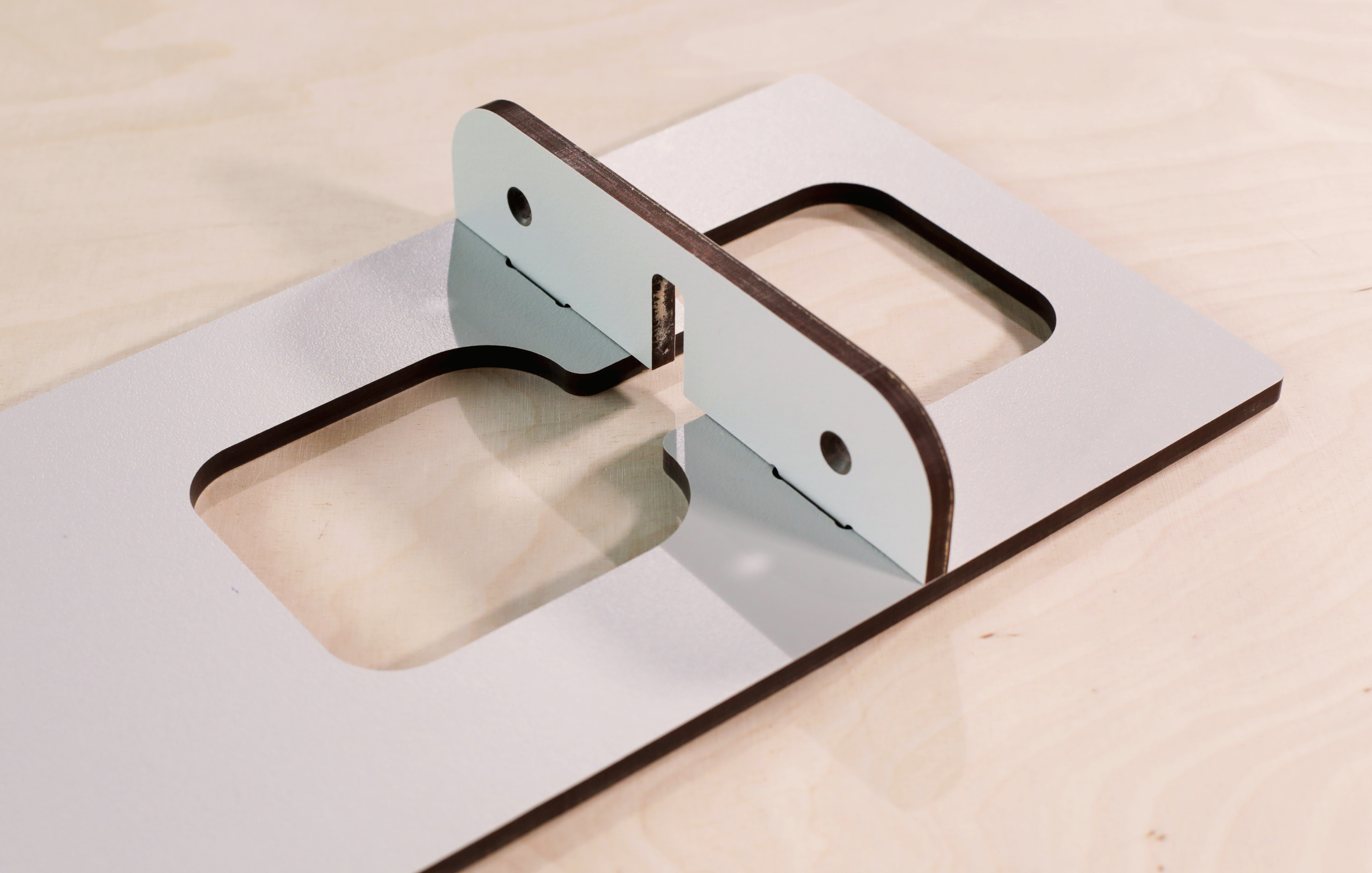

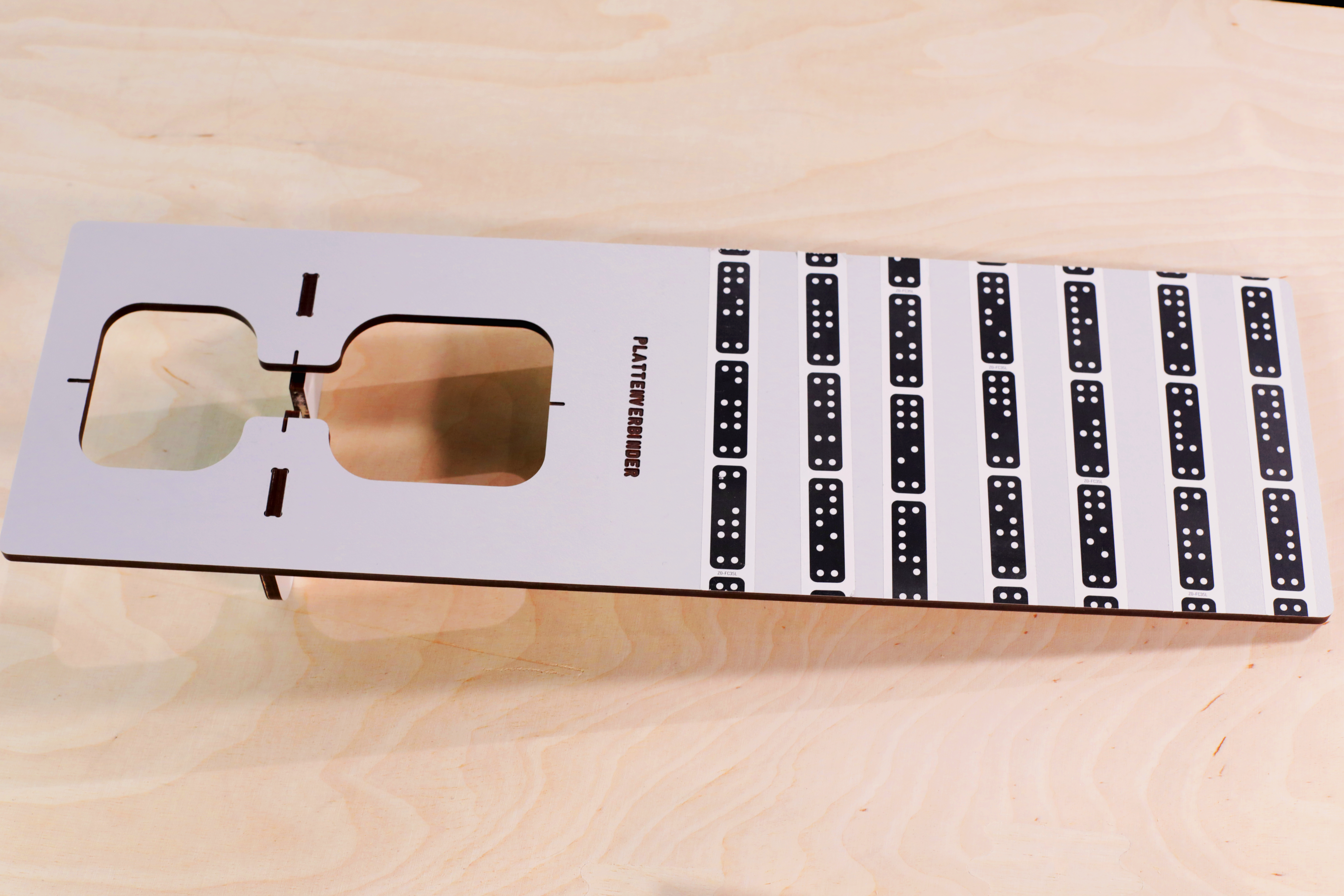

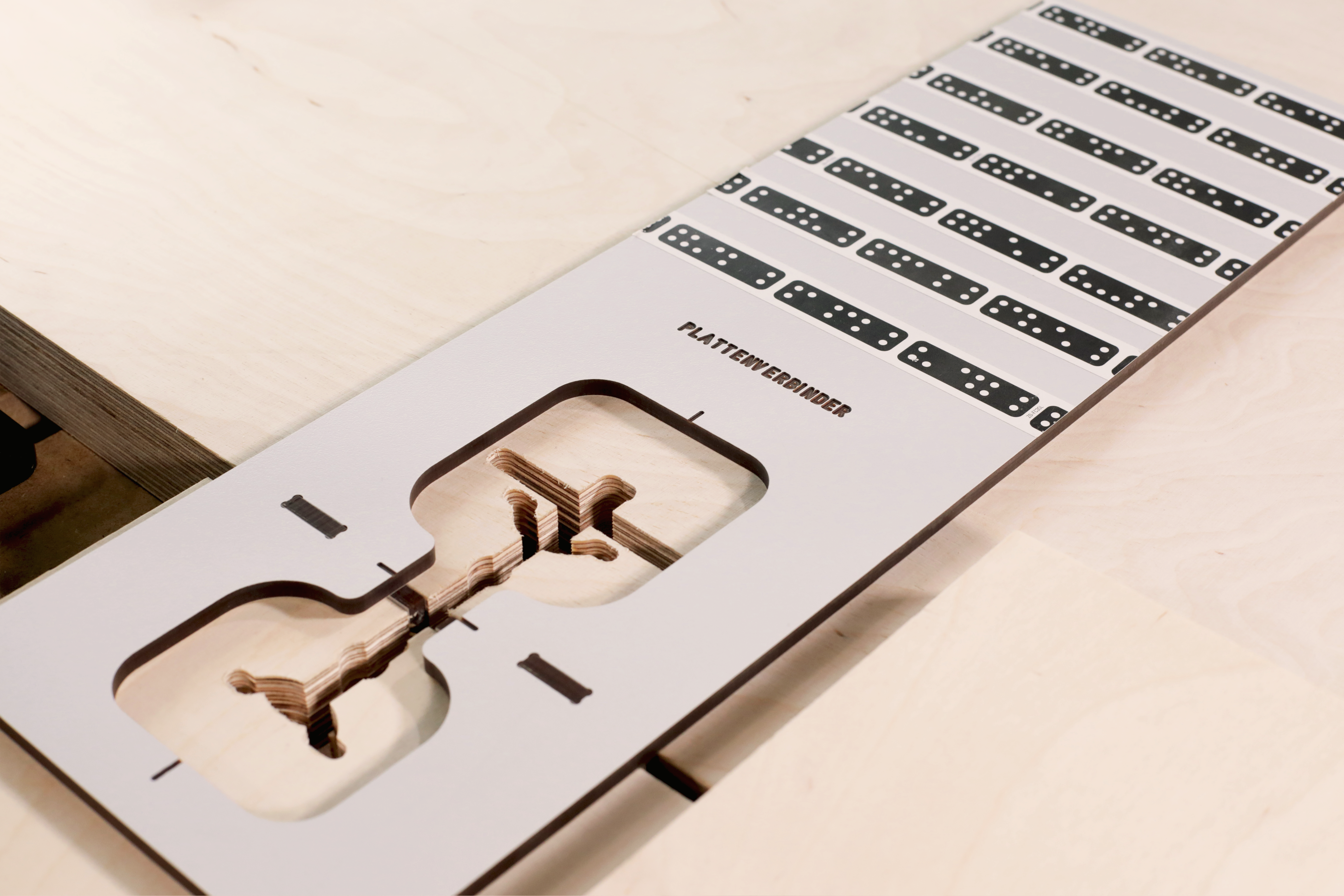

Eine Schablone für das schnelle Einlassen von folgenden Plattenverbindern (und evtl. noch vielen andern): A template for the quick insertion of the following panel connectors (and possibly many others): https://www.hettich.com/blaetterkataloge/TA_2016_02/de_DE/blaetterkatalog/blaetterkatalog/pdf/save/bk_810.pdf

40 min

Easy

11

Category

Jigs & Fixtures

Files included (4)
NameSize
Schablone_Jig.svg
23 kB
65 mm.svg
8 kB

6 mm (Vollkernplatte od. ähnl.)
Shaper Origin
- Ausgelegt auf max 25 mm Tiefe fräsungen, kann angepasst werden. - For a maximum depth of 25 mm, can be adapted.
