Veritas Shooting Plane Cleat

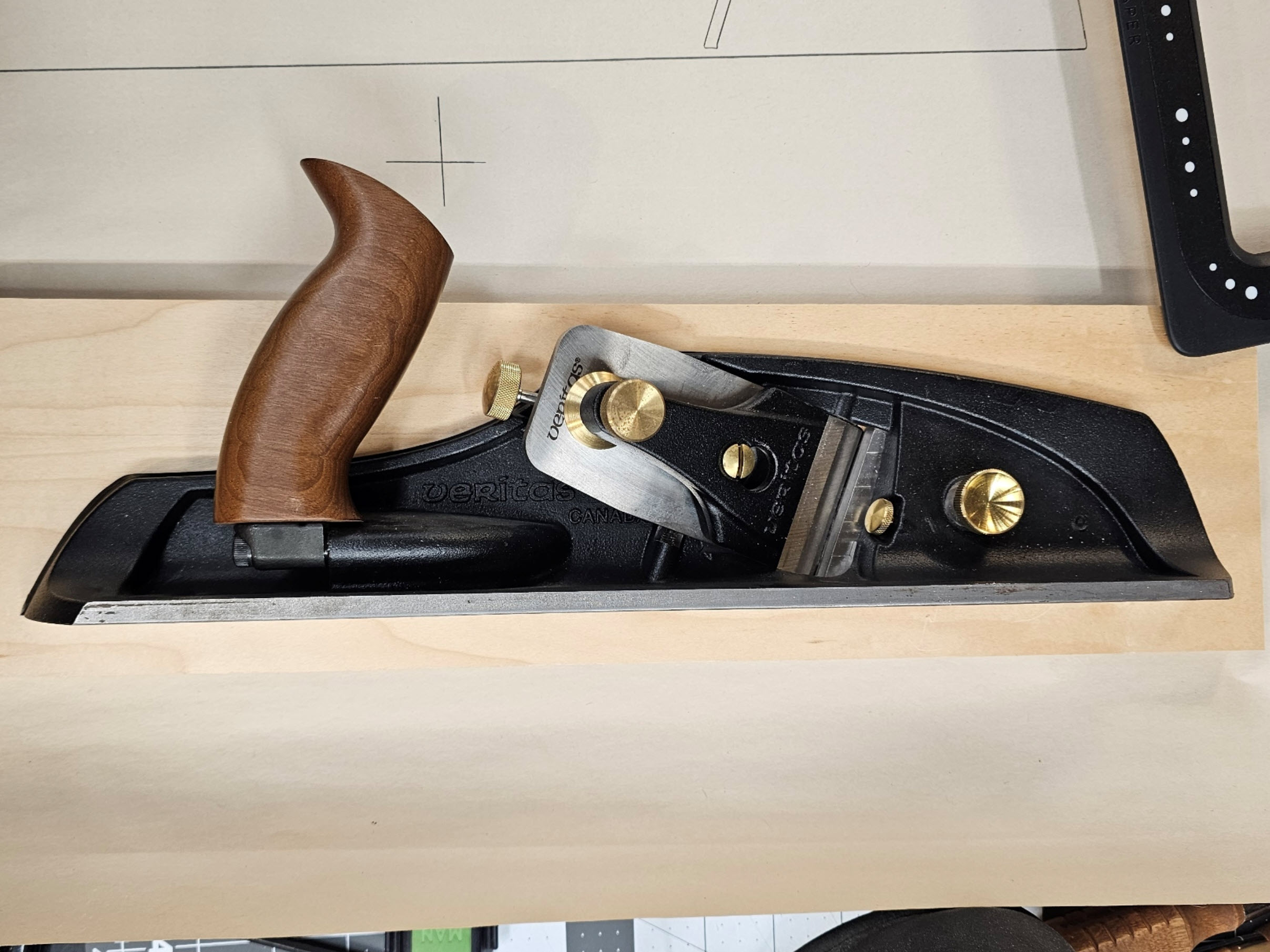

Seat/cleat for a Veritas Right or left Shooting Plane. You'll need to mirror the image for the left. -I call this a cleat as part of a set I'm working on that could easily be added to a hanging wall setup or simply stored in a well organized drawer
10 min
Easy
3
Cleats
Files Included (1)

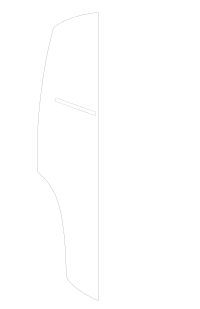

Veritas Shooting Plane.svg
4 kB
Materials
18x5" stock. I used 3/4 ply here, but any 3/4 should be good.
Tools
Suggest 16mm for clearing
1/4 was used for outside shape
1/8 for the blade clearance slot
Chisel to sharpen corners and a bit of sanding of you like.
Instructions

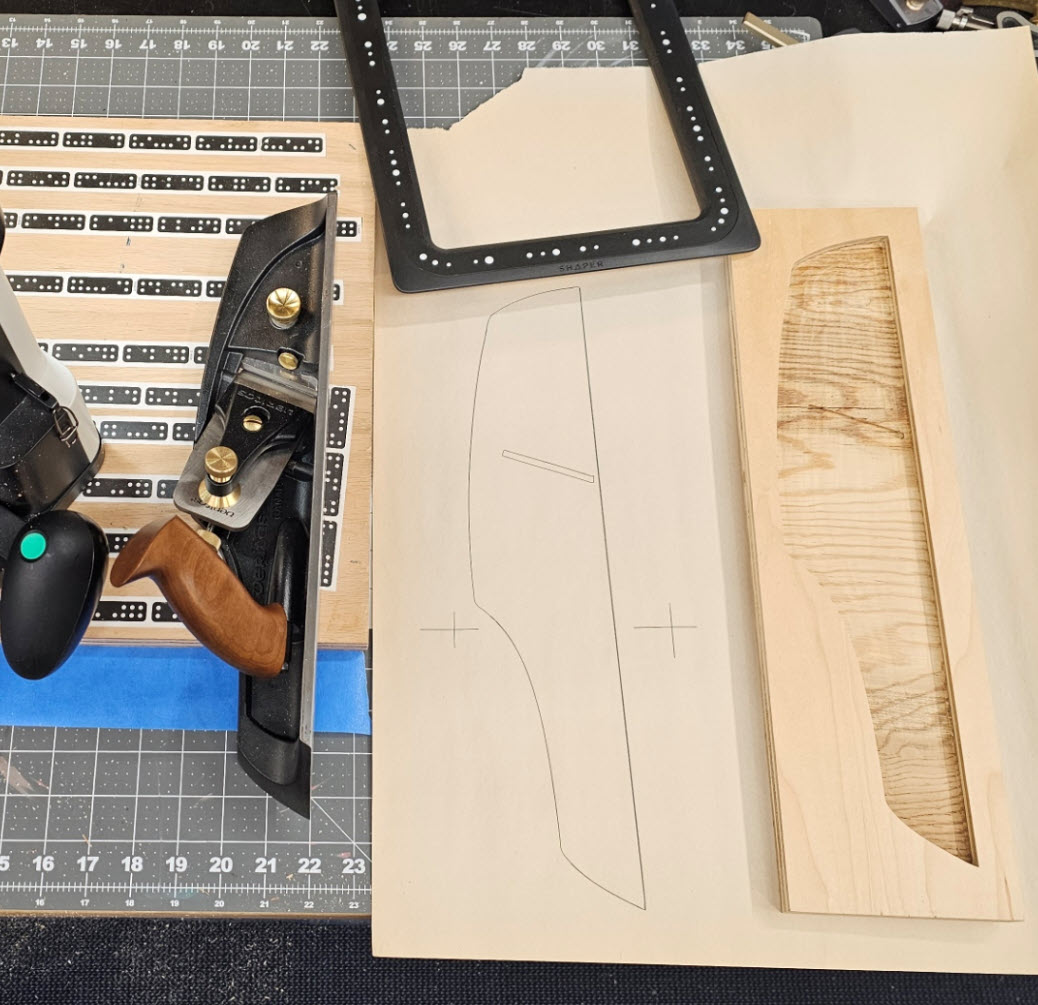

I found .3 inches deep was good. There is a space for blade clearance. I went to .4 there. I suggest adding magnets for holding as needed. I cut inside until I was right up against the line and it was fine.
