System 32 holes for Plate

By Shaper|BY-NC-SA 4.0 License|Updated September 15th, 2022

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail

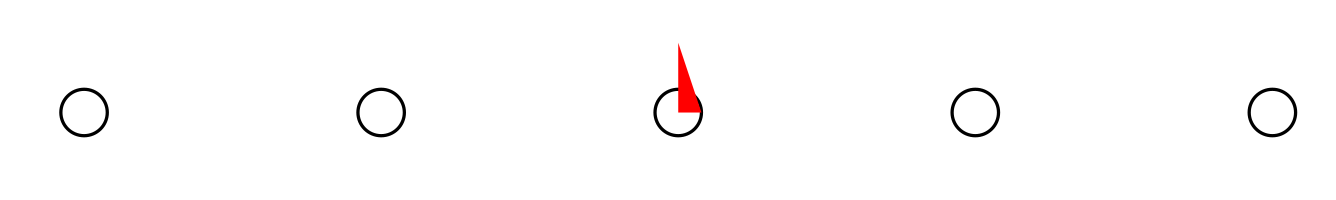

Five 5mm holes spaced 32mm apart on center. For use with Plate and the included System 32 Pin.

10 min

Easy

81

Files included (1)
NameSize
Sys 32 Holes.svg
994 B

-Origin -Plate -3mm or 1/8" upcut bit
Place file at X = 0mm. Your Y position will vary on a project basis - typically 37mm from the front edge of your cabinet.
