Workshop Cart

By Shaper
|
BY-NC-SA 4.0 License
|
Updated Fri Mar 11 2022

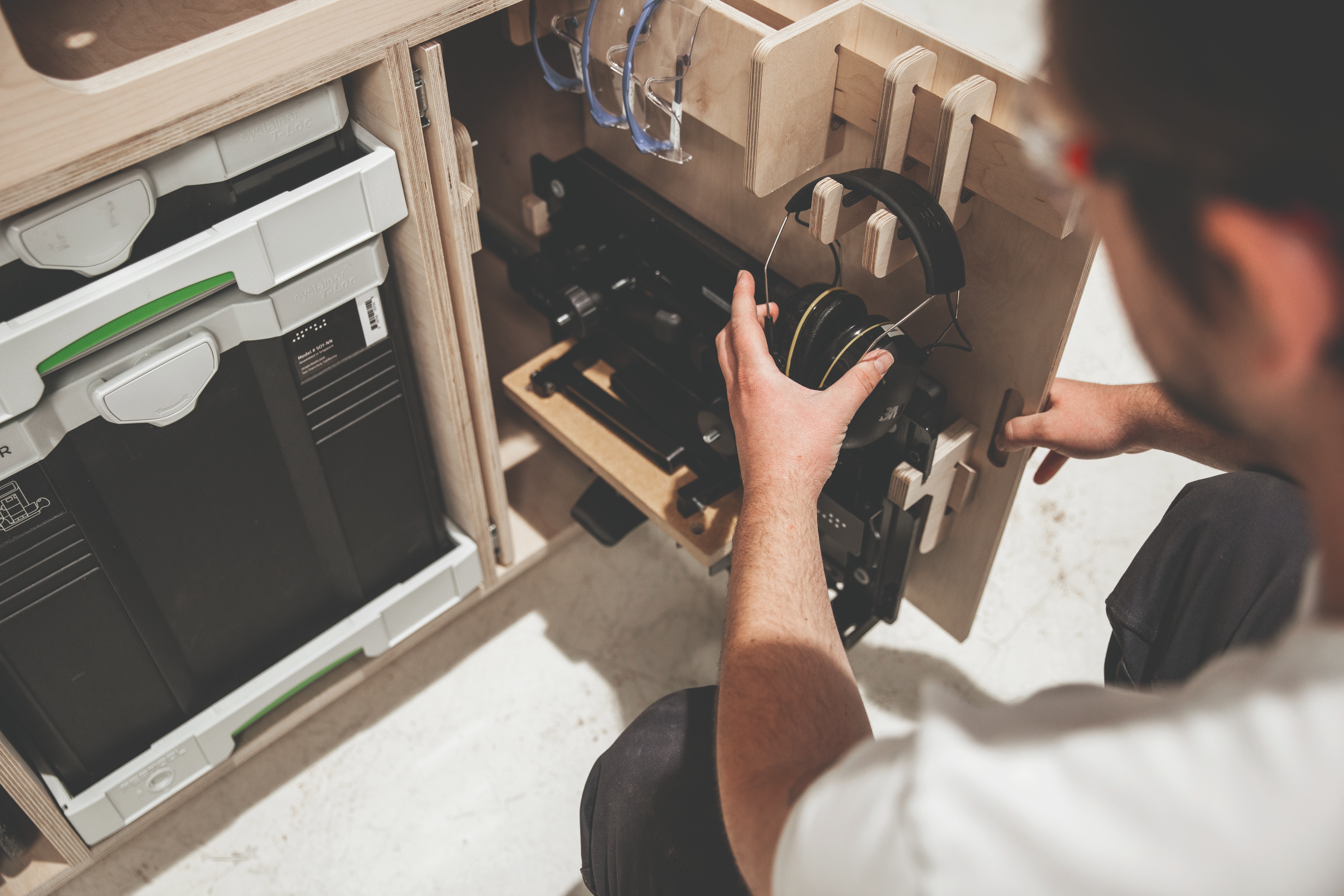

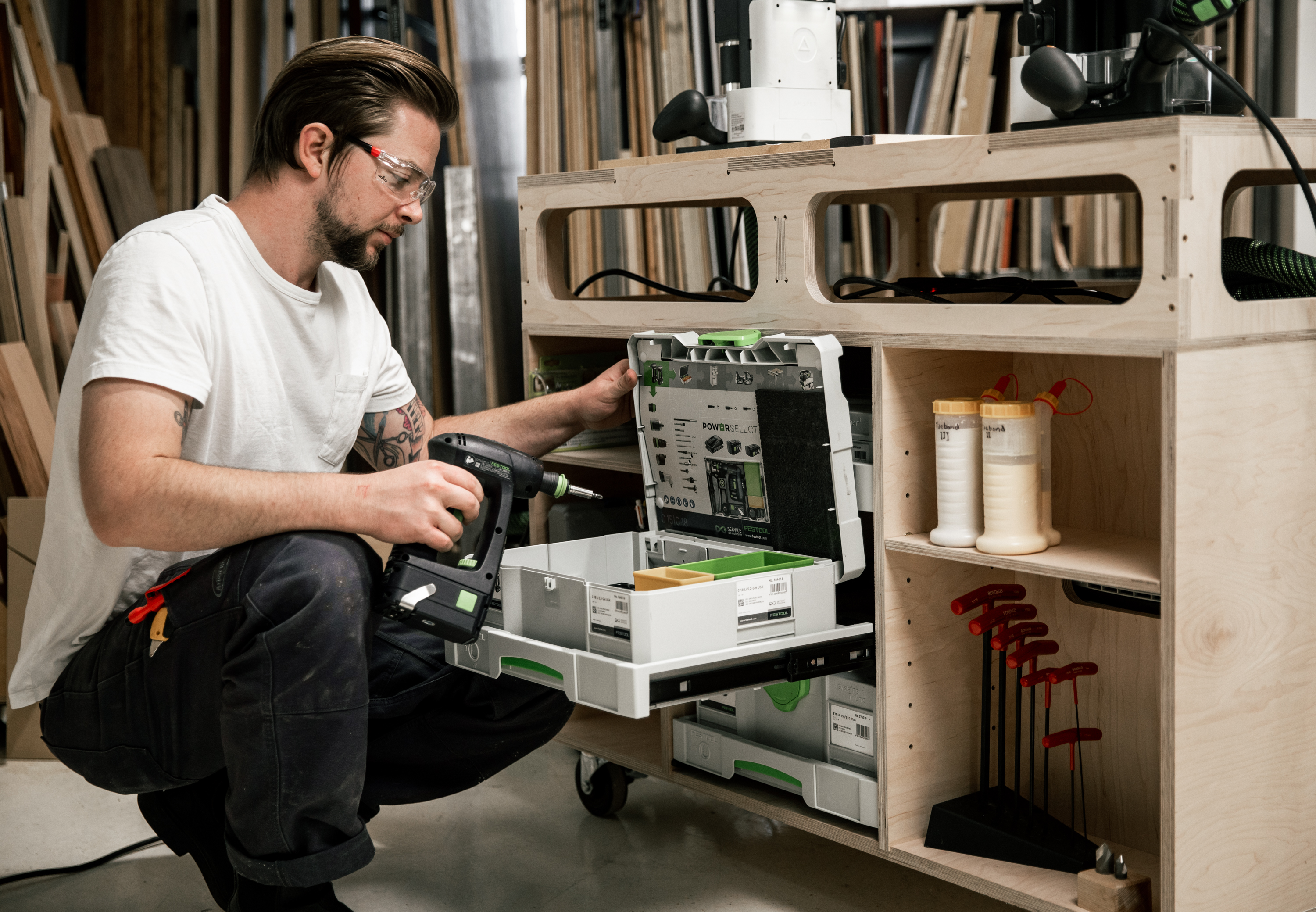

A flexible, mobile workbench with integrated storage. Designed for educators and students to get the most out of Origin and Workstation.

> 2 hr
Intermediate

557

Storage & Organization

Files Included (12)

  • EDU_Cart_Bottom_of_Case.svg

    14 kB
  • EDU_Cart_Side_A1 .svg

    3 kB
  • EDU_Cart_Side_B1 .svg

    4 kB
  • EDU_Cart_Side_B2 .svg

    10 kB
  • EDU_Cart_Side_C1 (1).svg

    3 kB
  • EDU_Cart_Side_C2 .svg

    9 kB
  • EDU_Cart_Side_D1 .svg

    3 kB
  • EDU_Cart_Top_Long_Side.svg

    3 kB
  • EDU_Cart_Top_of_Case .svg

    17 kB
  • EDU_Cart_Top_Short_Side.svg

    1 kB
  • EDU_Cart_Worksurface.svg

    24 kB
  • Workshop Cart Build Instructions.pdf

    23 MB

Materials

-3 sheets of ¾” birch multi-ply

-1 sheet of ½” MDF (recommended spoilboard)

-Double-sided tape

-https://www.shapertools.com/en-us/store/product/double-sided-tape

-Shaper Tape

-https://www.shapertools.com/en-us/store/product/shaper-tape

-1 ½” wood screws

-22” full extension drawer slides (2 sets)

-Casters

-¼” Shelf pins

-Festool Sys Drawer set

-½” Diameter bottom cleaning router bit with a ¼” shank (Optional for speed of project)

-8mm Collet

-https://www.shapertools.com/en-us/store/product/collet-kit

-8mm Upcut end mill (Optional for speed of project)

Tools

Shaper Origin

Track Saw

Drill

Screw Driver

Instructions

Detailed build instructions can be found in the attached PDF.
