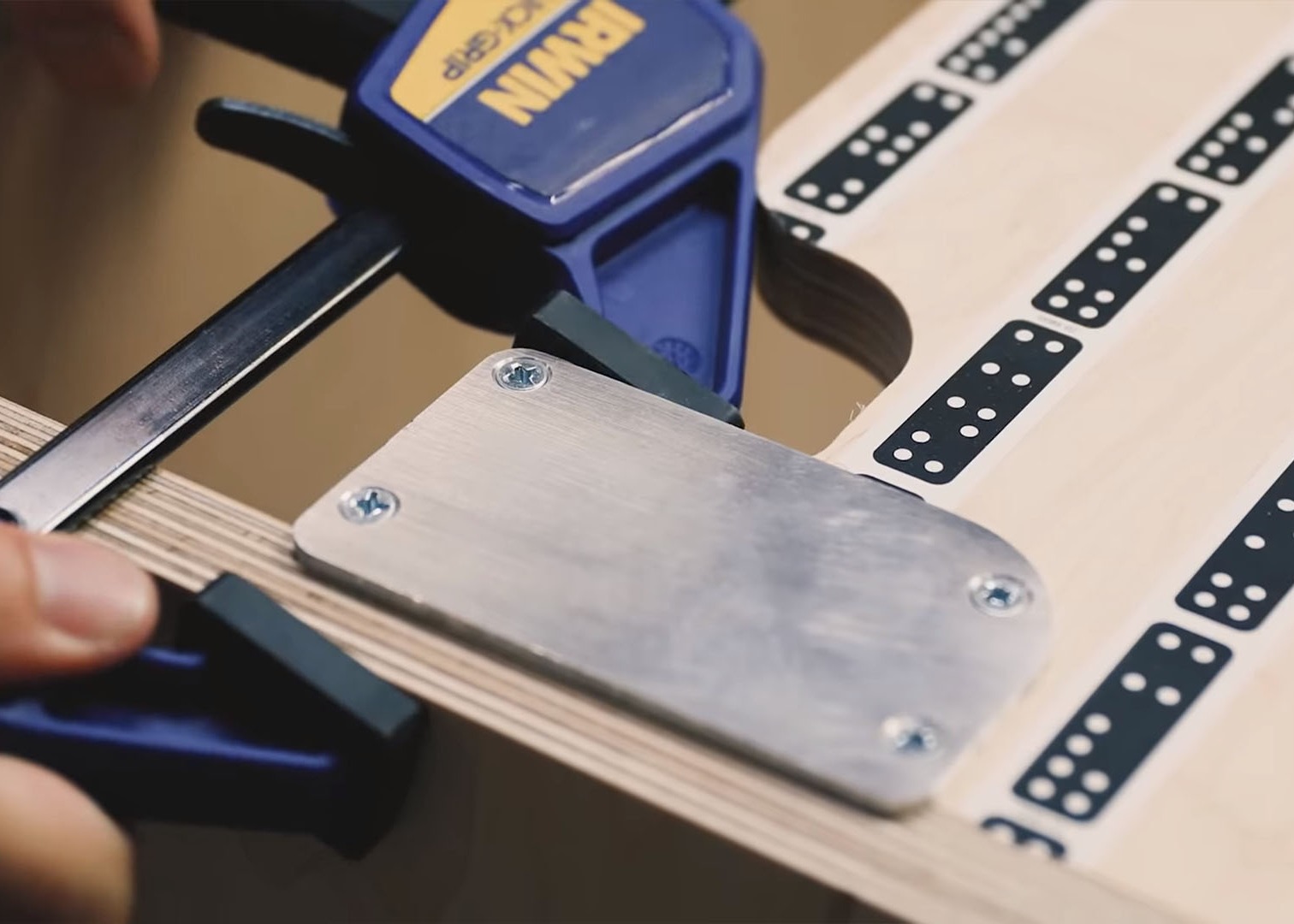

Cabinet Hardware Fixture Created by Shaper — A quick small footprint fixture to support Origin for cabinet hinge installation. But will prove helpful for any operation near a 90 degree joint. mounting techniques are flexible, the aluminium tabs can be replaced with hdpe or delrin to protect the surface they are being rested on.
Successfully Added to your Files

Cabinet Hardware Fixture

By Shaper|BY-NC-SA 4.0 License|Created November 28th, 2018

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail

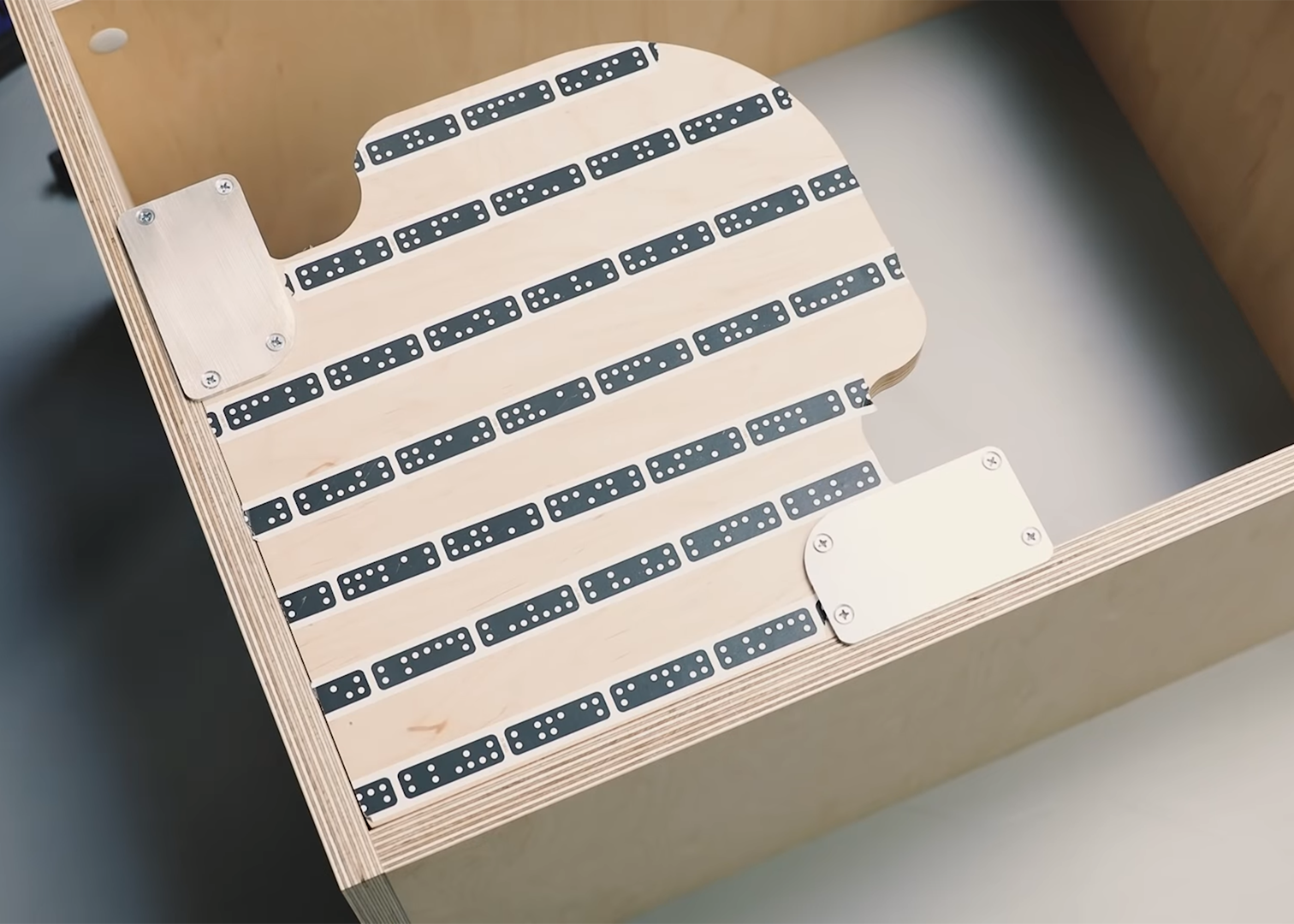

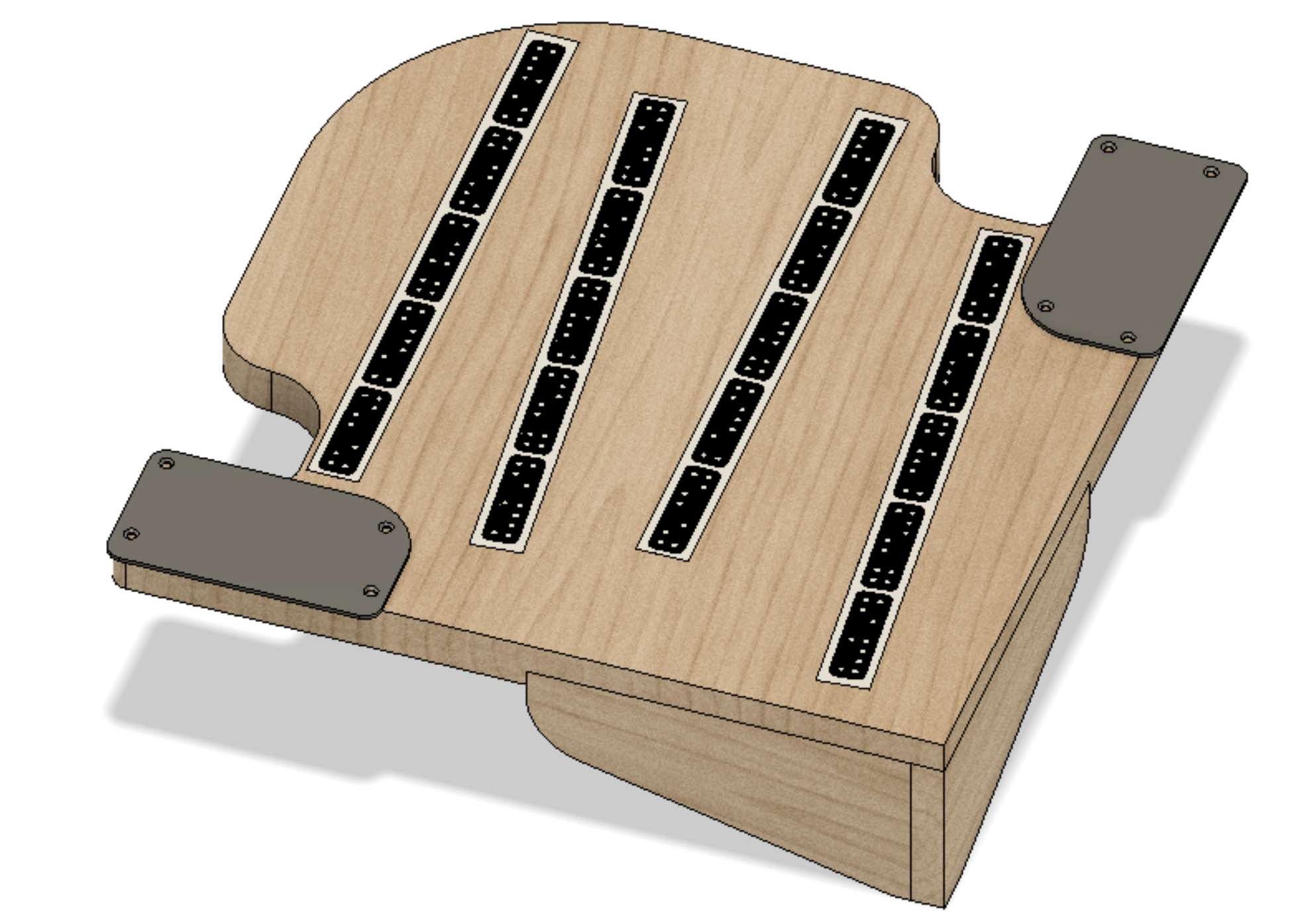

A quick small footprint fixture to support Origin for cabinet hinge installation. But will prove helpful for any operation near a 90 degree joint. mounting techniques are flexible, the aluminium tabs can be replaced with hdpe or delrin to protect the surface they are being rested on.

30 min

Intermediate

39

Files included (5)
NameSize
long_brace_v003.svg
3 kB
plate_L.svg
2 kB

3/4" ply ( this one will fit 0.74" ply perfectly ) 1/16" or 1/8" aluminium for the support tabs
Origin 1/4" stock cutter 1/8" o flute up cutter if aluminium or plastic is used for the support tabs.
Cutting is straight forward all rabbets are 1/4" deep use the 1/8" o flute cutter for the aluminium, use a spindle cutter speed of 2, and perform each pass in auto mode with the speed setting to set to the slowest ( plunge 2.5, auto 5 ) when assembling pay special attention to the corners to make sure they are mounted at 90 degrees. tell us what you think on the forum: https://community.shapertools.com/t/cabinet-hardware-install-fixture/2118
