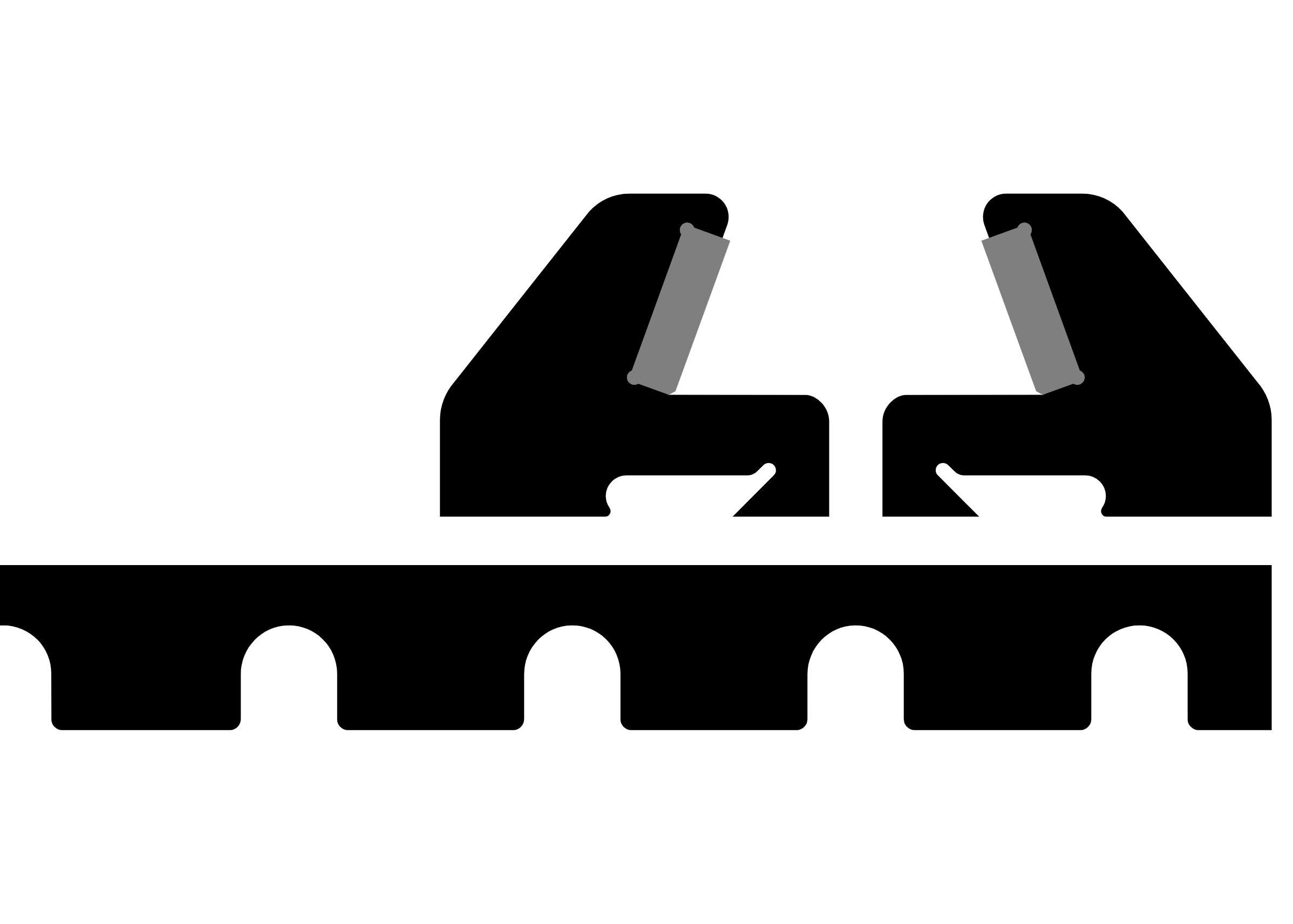

It always helps to have a hammer or a mallet easily accessible in your shop space. This cleated hammer rack securely holds up to six of your favorite mallets and hammers.

30 min





Files included (1)
4 kB

3/4" Plywood measuring at least 24"x32" Wood Glue
Origin 35"+ Long Clamp 1/4" Cutter
photo of step 1

Set Up Your Workspace

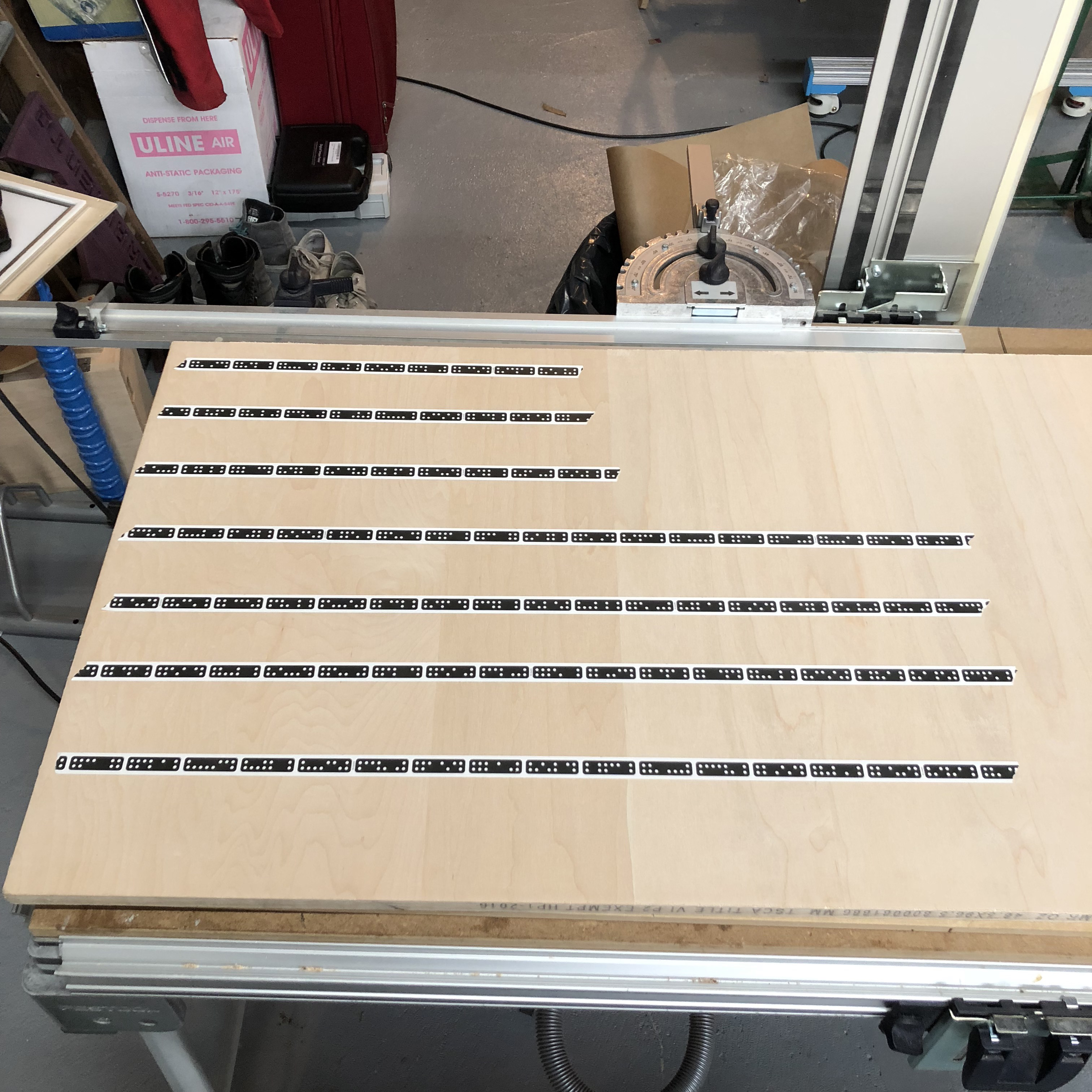

Lay out a piece of 3/4" thick plywood measuring at least 24"x 32". Use double-sided tape to adhere it to a spoilboard beneath. Make sure to use adequate double-sided tape so that pieces will not 'jump' free when you complete your finishing pass.
photo of step 2

Place Your File

Place ShaperTape on your workpiece and then create a scan. Once you are satisfied with your scan, place the design file. Then go over all the cutpaths with Origin, keeping an eye on your tape meter. You want to be sure that Origin can read sufficient tape throughout the entire cut.
photo of step 3

Cut Out Pockets

With your 1/4" cutter, cut the two pocketed areas. For optimal cut quality, use two passes: -1st pass: .25" depth -2nd pass: .375" depth, 0 offset. Change cut type from Pocket to Inside Cut. -1st pass: .375" depth, .01" offset. -2nd pass: .375" depth, 0" offset.
photo of step 4

Make All Outside Cuts

Cut out all elements that are encoded as Outside Cuts. For optimal cut quality, use four passes, each with a 1/4" cutter: -1st pass: .25" cut depth, .01" offset -2nd pass: .5" cut depth, .01" offset -3rd pass: .75" cut depth, .01 offset -Finishing pass: .75" cut depth, 0" offset.
photo of step 5

Sand and Dry-Fit

Remove each piece from the double-sided tape and sand the edges to remove any fuzz. Dry-fit the components together to ensure a snug fit.
photo of step 6

Glue and Clamp

Make sure you cover all of the surface inside the pocket with glue to ensure a strong bond. After clamping, wipe away any excess glue.
