Cleat of the Week 2: Drill Rack

By Shaper | Created May 1st, 2018 | Published May 1st, 2018

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail

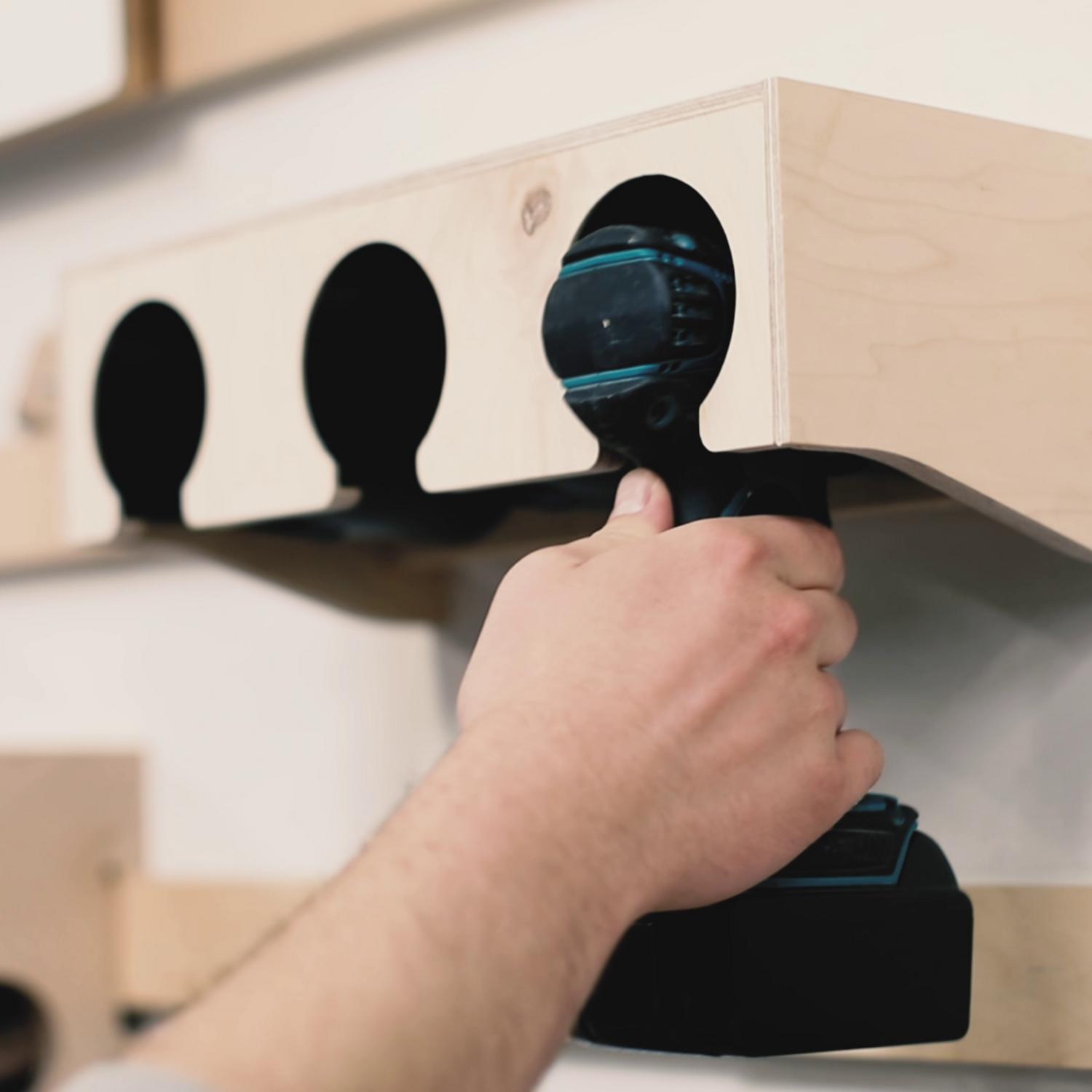

Designed to accommodate Makita 18v LXT drills and impact drivers, with a little shelf up top for spare batteries or a charger. Note: The instructions here assume a basic knowledge of Origin

45 min




Files included (8)
cleat_makita_drill_kit v3.f3d
376 kB
974 B

BY-NC-SA 4.0 License

1/2" Baltic birch or similar ply, 3" black ABS pipe
Origin, 1/4" stock cutter, long flute length 1/4" cutter, clamps, double-sided tape
photo of step 1

Prepare Panel

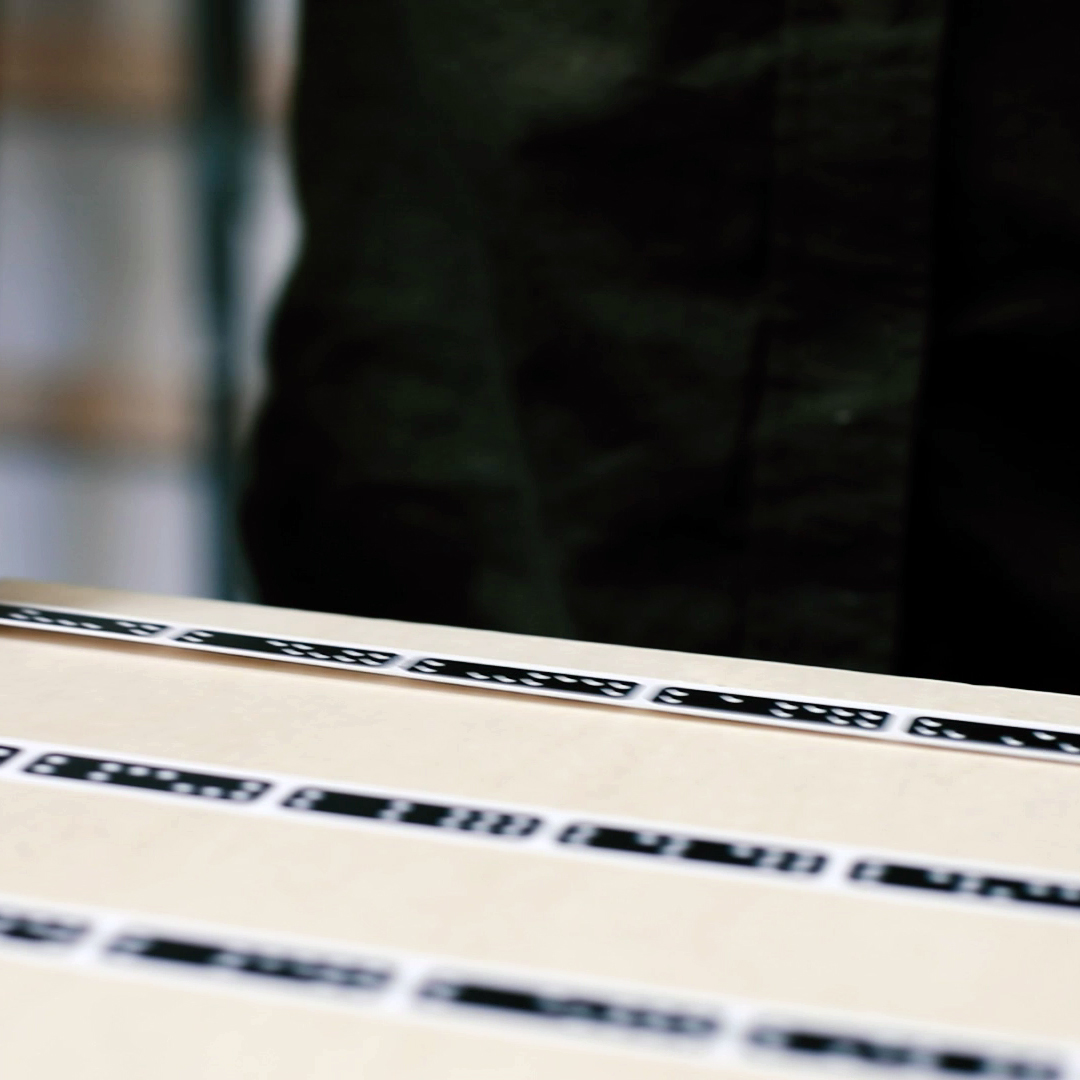

Use double-sided tape on the good side of a 1/2" thick ply panel. Try to target an area measuring about 2 ft square. Flip the panel and press it firmly onto the spoil board protecting your workbench. Apply ShaperTape across an area measuring about 3ft x 2ft. Scan and we are ready to go.
photo of step 2

Cut Top Panel

Cut the slots to a depth of .25". Then cut out the perimeter of the top panel.
photo of step 3

Cut the Left and Right Side Panels

Cut the pockets first to a depth of 0.25". Cut the perimeter of each shape.
photo of step 4

Cut front and back panels

Cut the circular slots for the ABS first. Cut to a depth of 0.4" in multiple passes, leaving 0.1" of material to hold the ABS in place. Then cut out the perimeter of each shape.
photo of step 5

Round Over the Lower Edge of the Rear Panel

Use a regular trim router and a 1/8" radius round-over following bit. Round over the lower edges of the rear panel. Note: This step is just an alternative to using dogbones or chiseling square the rear corners.
photo of step 6

Cut ABS Pipe Into 5.7" Sections

Check that the cuts are square and perform a dry fit to confirm that all components fit together cleanly. [Optional:] Once you have confirmed the dimensions of the ABS, you can run coarse sandpaper over the outer edges to rough them up and give the glue a better adhering surface when assembling
photo of step 7

Cut Two ABS Supports From 1/2" Ply

These just hold the ABS in place while we cut the opening in the bottom. Cut the circle to hold the ABS. Using an Inside Cut, cut at a 0.25" depth and then test fit the ABS You want a firm fit to prevent it moving during the ABS cutting operation.
photo of step 8

Prepare to Cut ABS

We will be resting a panel of ply above our fixtured ABS pipe and cutting the hole through both. Start by taping a panel of ply measuring about 1' x 2'. Align the Panel square with the front edge of the ABS support panel and clamp it in place. Find the center of the ABS and place a mark on the top ( see image )
photo of step 9


Place the plastic_slot.svg file oriented as shown 1/4" from the edge (this will align with the edge of the ABS nested in its support piece) Center the alignment mark with the center of the abs pipe. and clamp the ply down to lock it and the ABS supports in place. Cut through the ply, then continue to cut through the ABS. Depending on the thickness of the ply panel you have on top, you may need a cutter with longer cutting flutes Repeat with your other two lengths of ABS.
photo of step 10

Dry fit

Confirm that the ABS is the right length to be held in place but not prevent a clean glue up. Note: the roundovers enable our rear panel to fit in place.
photo of step 11

Glue / Clamp / Sand / Mount

Everything should glue together intuitively. Be careful not to distort the front panel with excess clamping pressure. Sand and enjoy.
