Workstation Stop Fence
This stop is for making repetitive profiles or for resetting a workpiece in an identical location. I made this stop fence to go where the angle fence goes when the table is not in use. This stop projects up to about 1/32" below the work surface. The square corners are so that the stop can be used for very thin materials. UPDATE: This is a different stop than those I originally posted. I found issues with the original designs. This is the one I use now.
109
Shaper Workstation
Files Included (1)

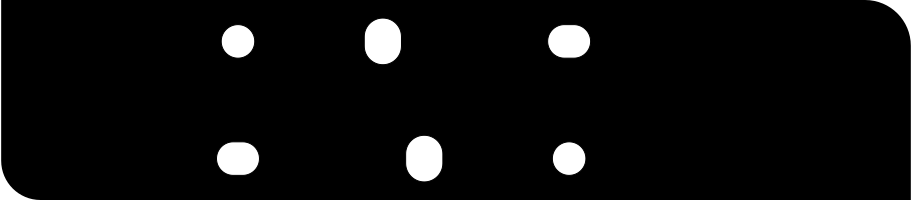

Stop Fence v2.svg
3 kB
Materials
1/2" melamine scrap
Tools
Origin and Workstation. (If you don't have a Workstation don't bother to make this stop fence.😀)
Instructions

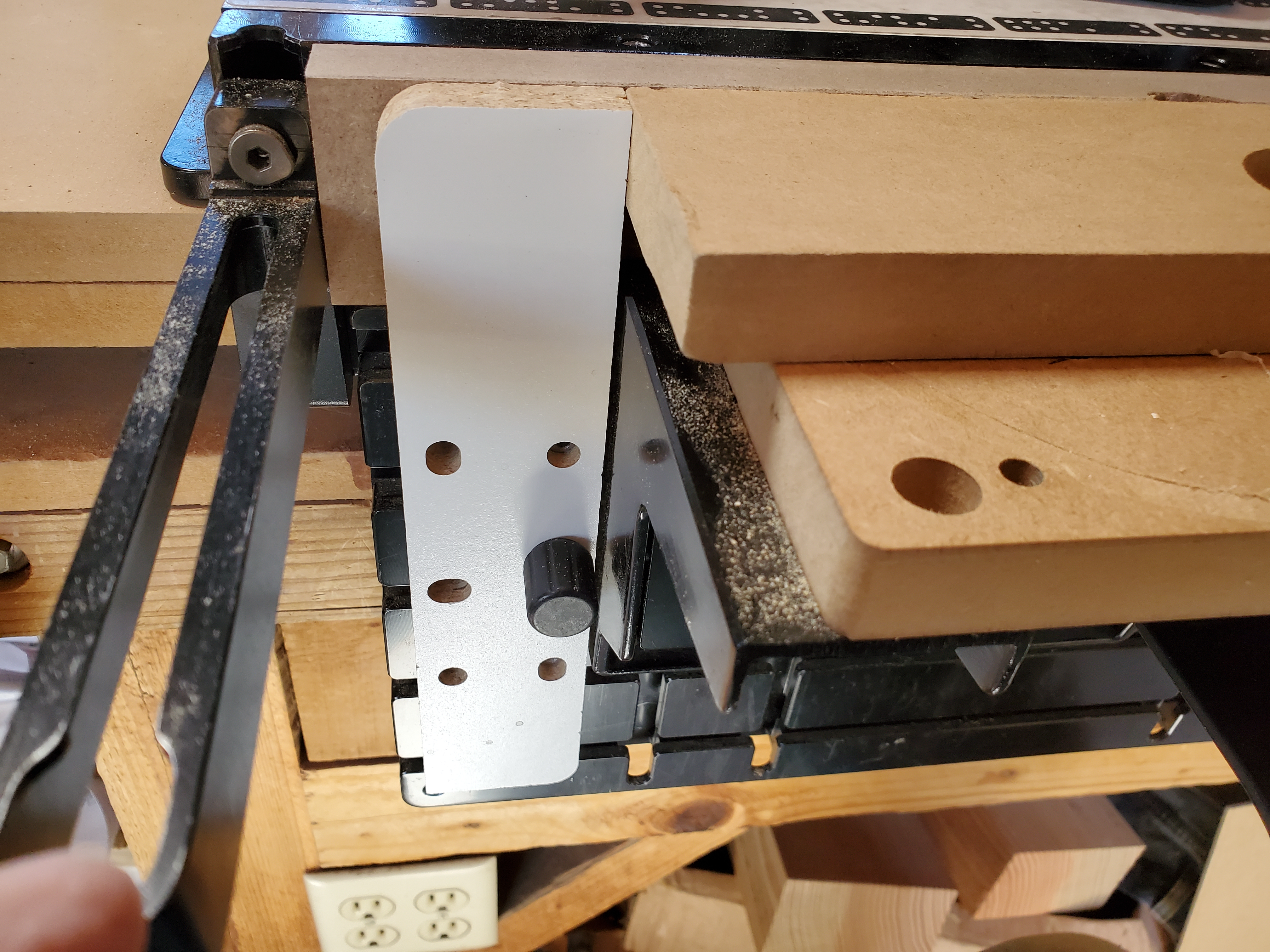

The stop can be turned upside down (end for end) to change its height such that it will work with the W/S clamping face in either location. It can be turned over (face for face) to move it to the right end of the W/S clamping face. Photos show it on the left end with the W/S clamping face in the upper and lower positions. If the stop is in the way during cutting, one can remove it after the blank is anchored in place, and replace it with accuracy after cutting is completed.
