Kreg Clamp Extender for Workstation Extended Table

By JasonTX
|
BY-NC-SA 4.0 License
|
Updated Sat Sep 26 2020

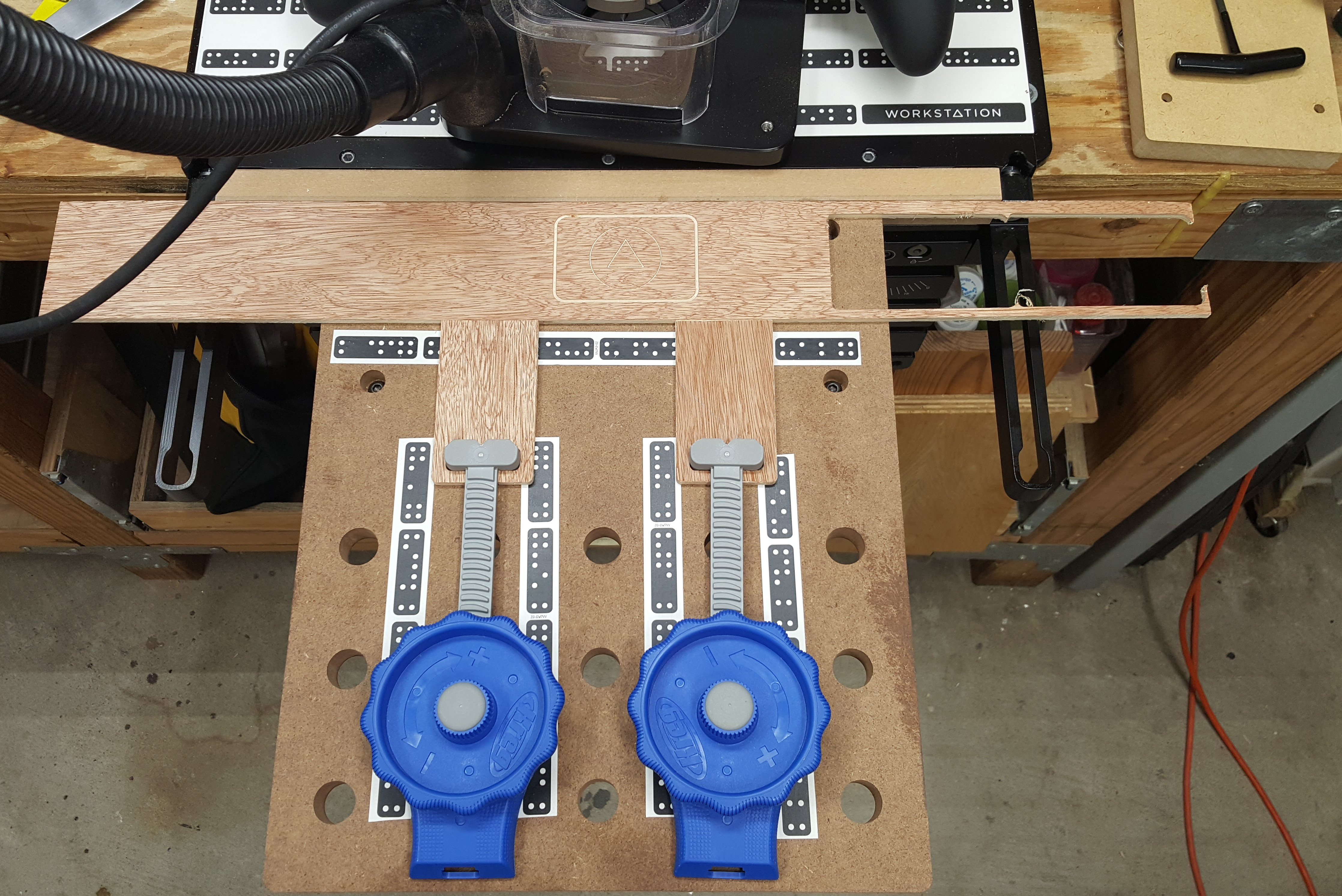

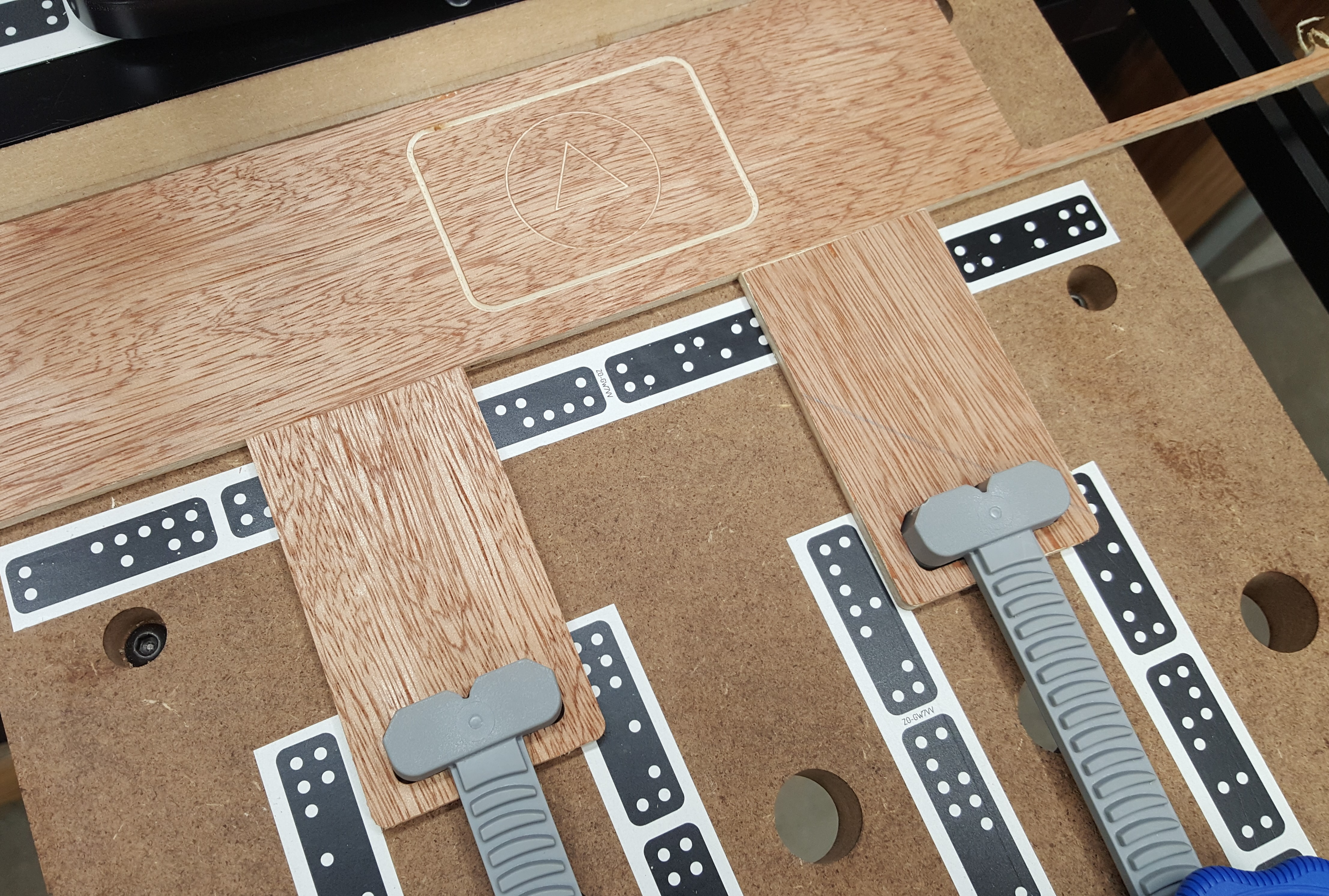

Created for quick change out of multiple engraving 'blanks'. Kreg In-Line Clamp Extender: This extender allows clamping thin material to the Workstation spoil board. The Kreg In-Line Clamp is 1/2" thick and prevents Shaper Origin from engraving/cutting the southern edge of the thin material. An alternative to using double-sided tape. Workstation Extended Table: This MFT style table allows for multiple clamp positions and accommodates work piece widths up to 8", using the clamp extender.

1 hr
Easy

28

Jigs & Fixtures

Files Included (2)

  • kreg_clamp_extender.svg

    5 kB
  • ws_extended_shelf.svg

    34 kB

Materials

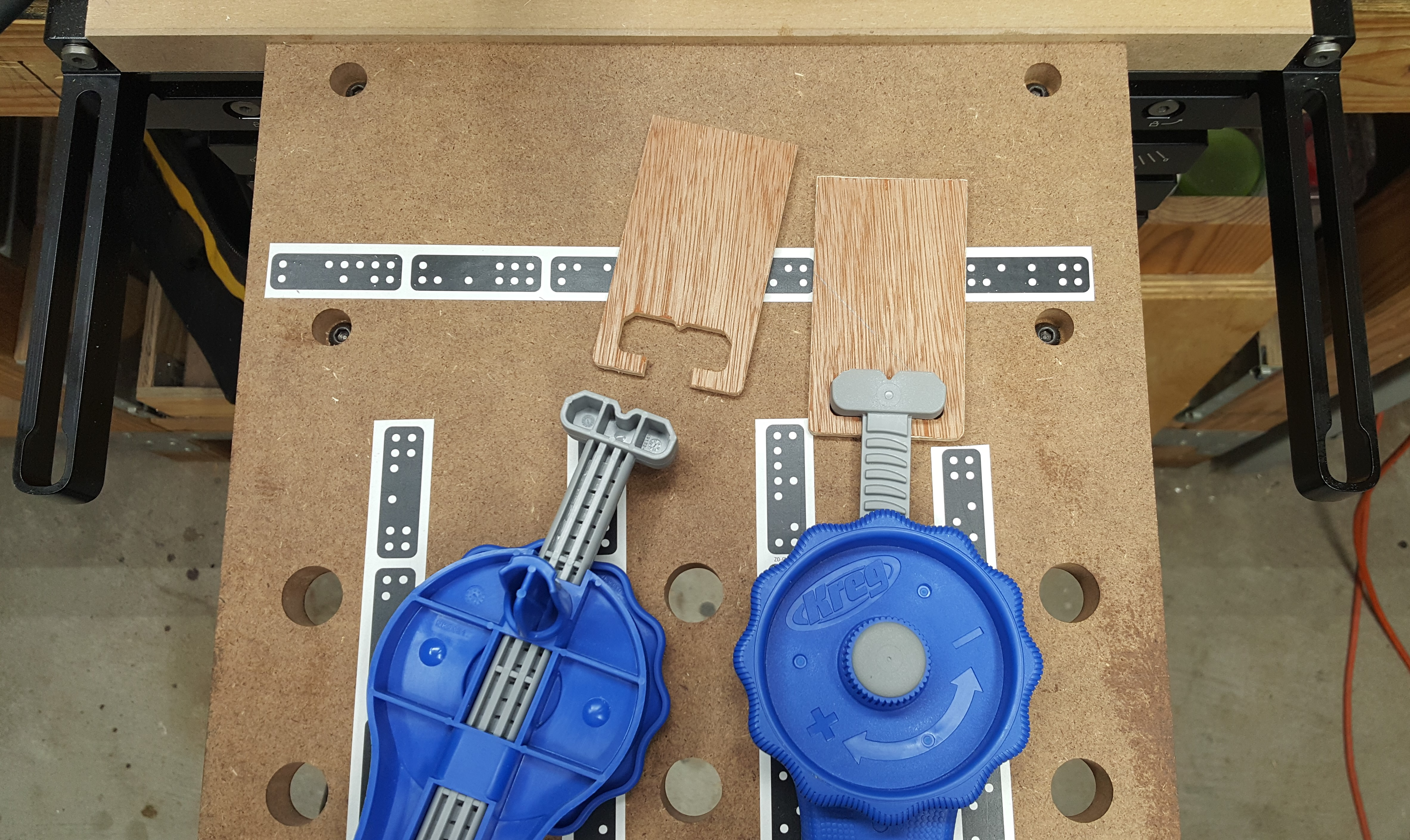

Clamp Extender is 3/16", as shown.

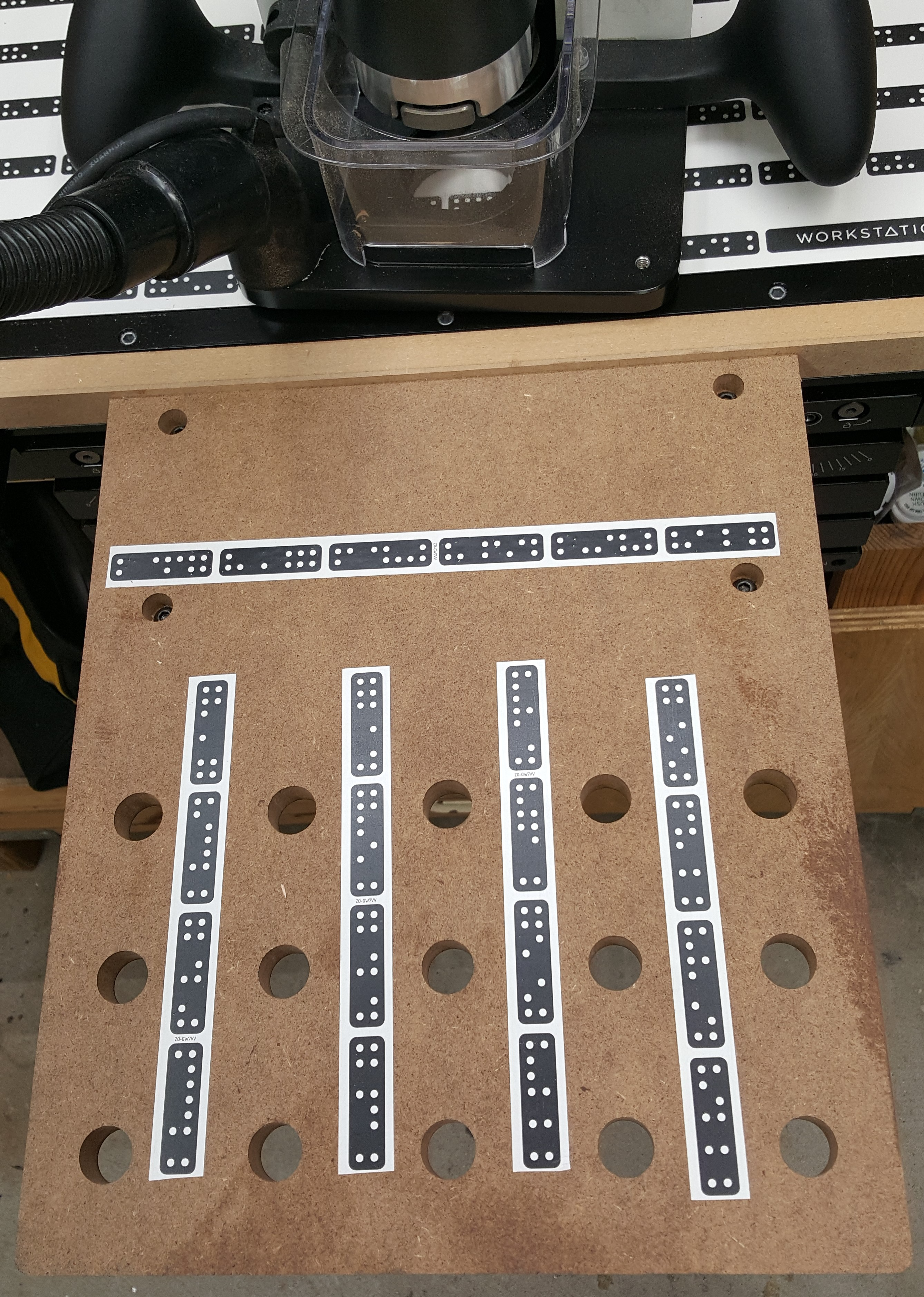

Extended Table is 3/4" MDF.

Tools

Shaper Origin

1/8" cutter

1/4" cutter

Instructions

Nothing to tricky here, simply use SO to cut out the profiles. I did use double-sided tape and different spoil board to cut out the two clamp extenders shown. For me, 0 offset resulted in a slight friction fit around the Kreg Clamp head. Note: The Shaper Tape shown on the Extended Table was left over from cutting the MFT holes. These dominoes are not required and should be removed.
