Micro Jig GRR-Ripper Trailing Hook

By Cameron | Created July 21st, 2020 | Published July 21st, 2020 | Updated July 21st, 2020

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
Create a disposable trailing hook for a Micro Jig GRR-Ripper. The trailing hook assists the non-slip pads by also pushing on the back of both sides of the stock as the saw blade cuts through the disposable user-made trailing hook.

10 min

Easy

2

Category

Jigs & Fixtures

Files included (1)
NameSize

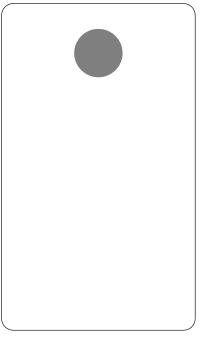

Micro Jig GRR-Ripper Trailing Hook.svg
1 kB

At least 1/4" plywood or MDF 1/4-20 x 1 3/4" T-Bolt (Part # GR-H12) 1/4-20 through hole knob (Part # GR-H13)
Shaper Origin Micro Jig GRR-Ripper
The trailing hook is attached using a 1/4-20 x 1 3/4" T-Bolt (Part # GR-H12) and a 1/4-20 through hole knob (Part # GR-H13). If desired, a longer and thicker disposable user-made trailing hook also helps to reduce tear-out.
