Cleat Clamp Rack

By Gary1 | Created December 7th, 2018 | Published December 7th, 2018

uploaded project image
project image thumbnail
project image thumbnail
project image thumbnail
project image thumbnail

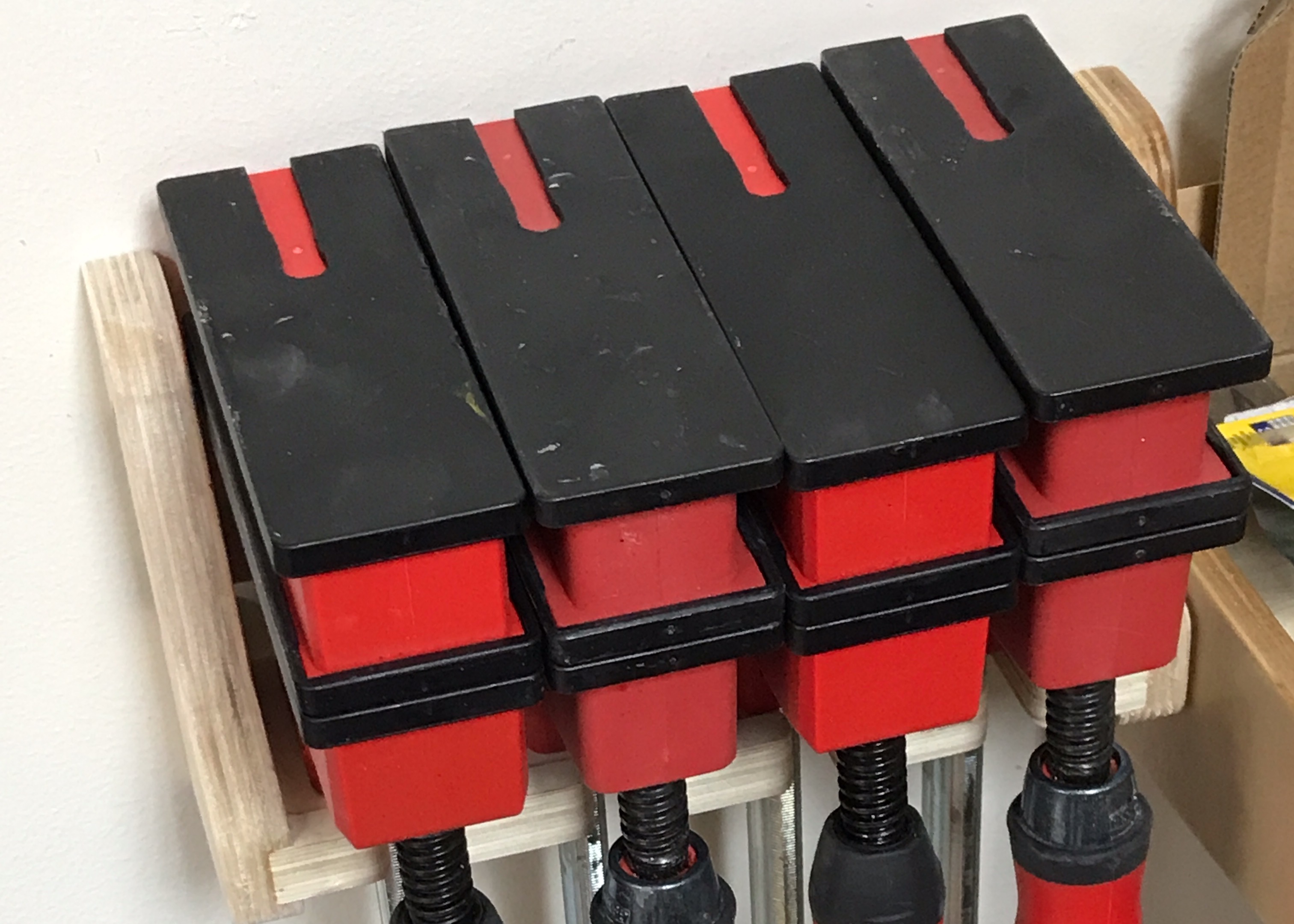

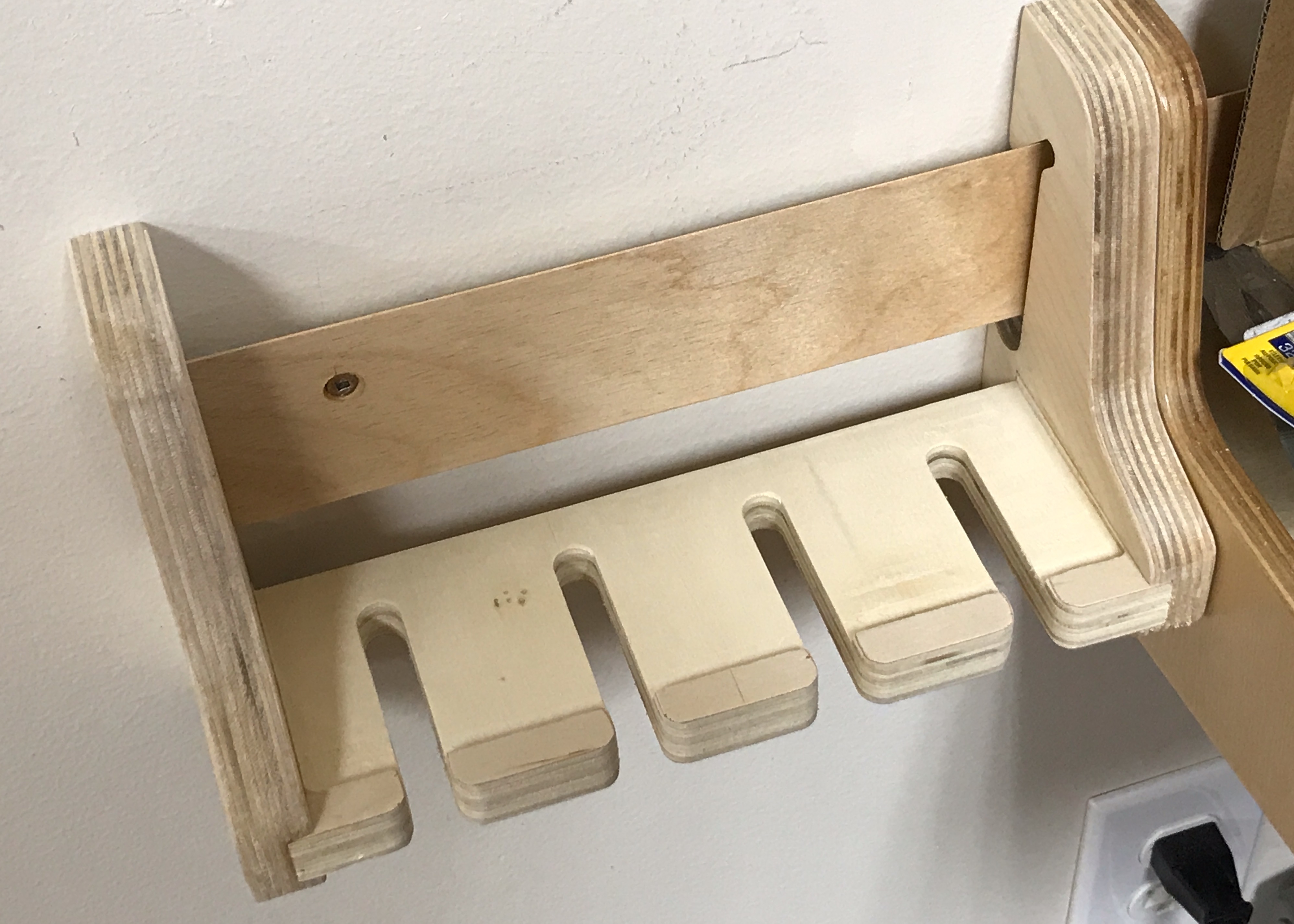

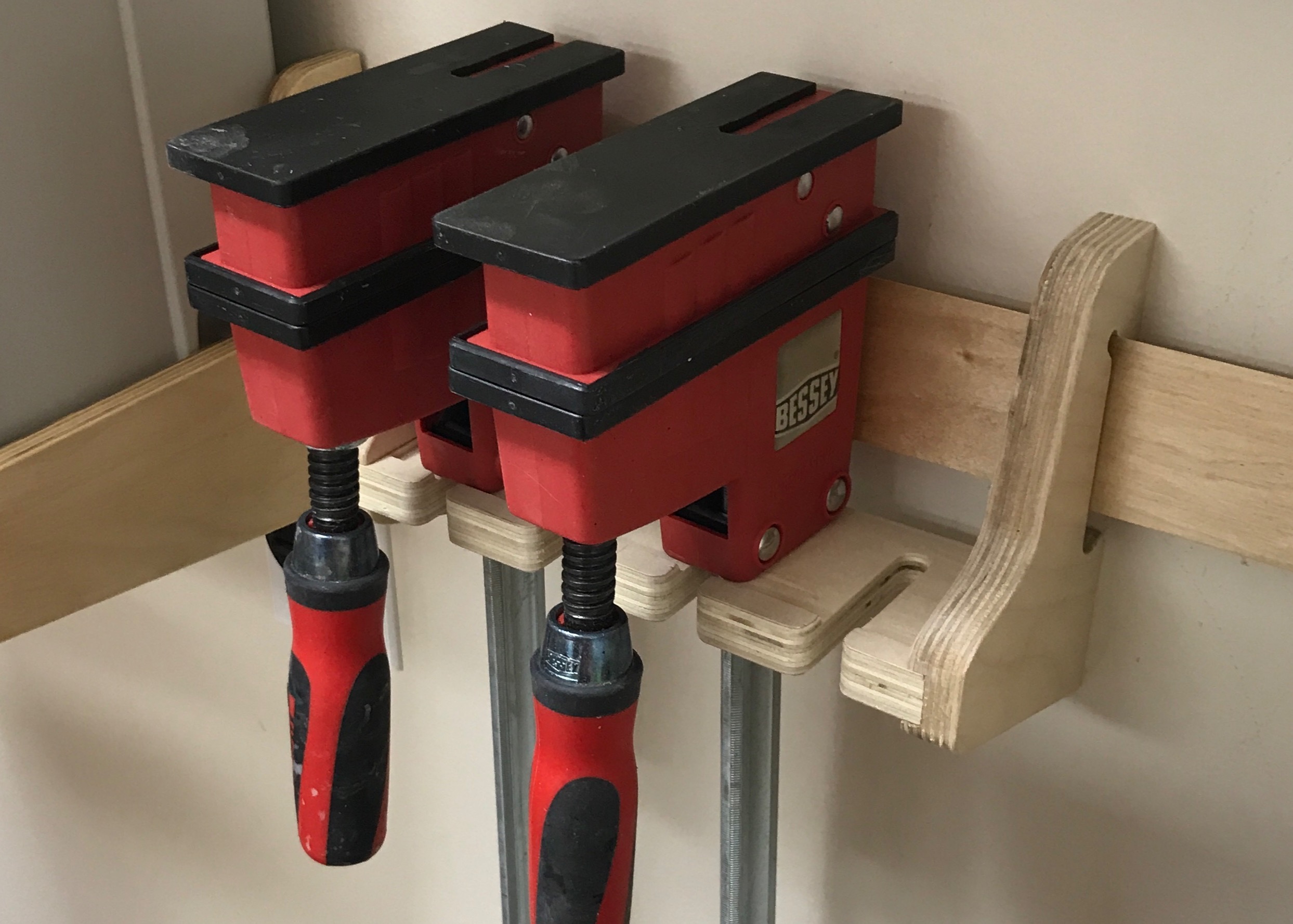

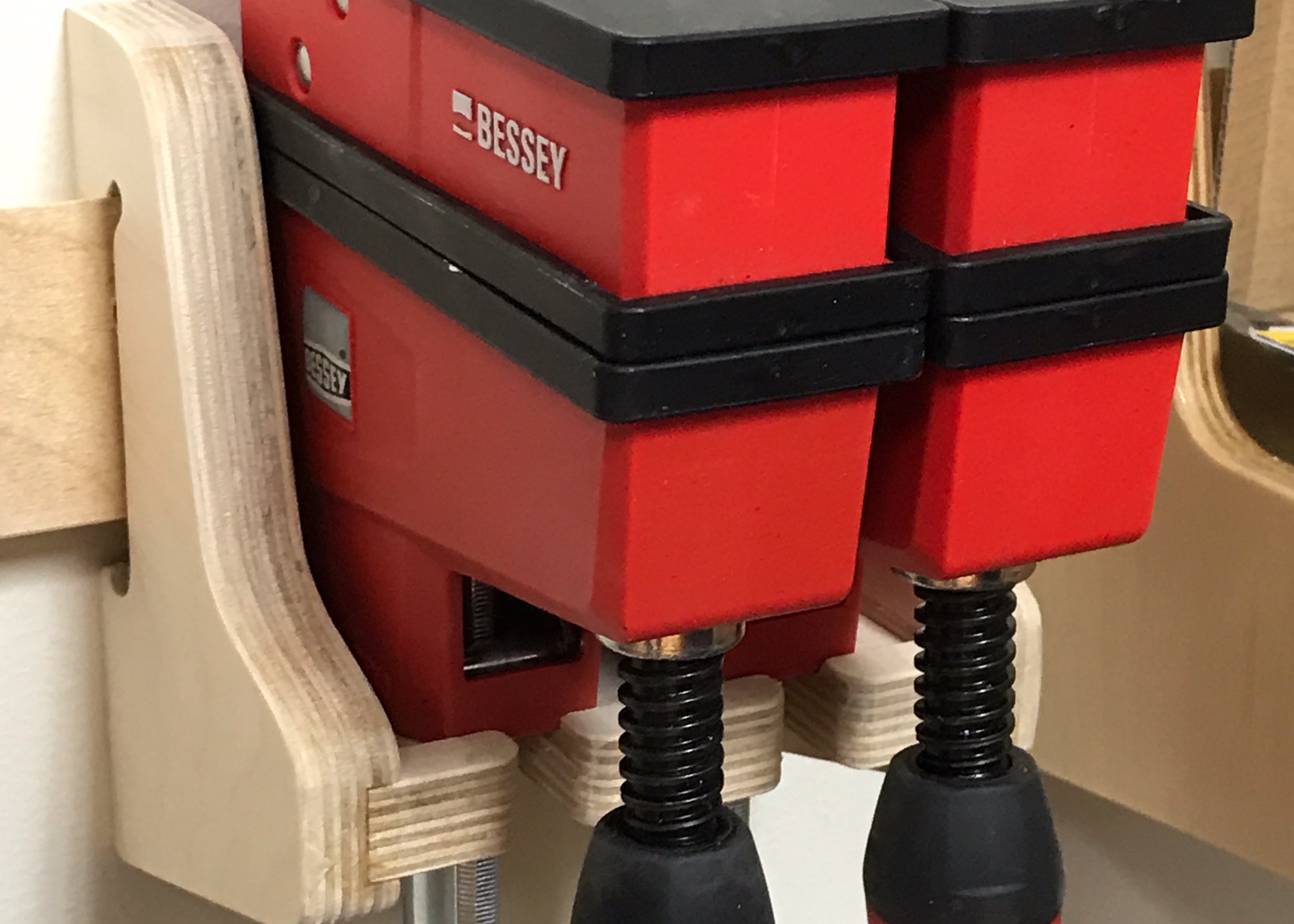

This based on the Cleat Container Systainer Shelf project provided by Shaper. It will work with K-type clamps.

40 min





Files included (4)
Cleat Clamp Rack Left.svg
2 kB
Cleat Clamp Rack Right.svg
2 kB

3/4" Baltic Birch Plywood Double Sided Tape ShaperTape Glue Sandpaper
1/4" spiral bit. A downcut for pocketing would be preferred, as well as a 1/4" compression bit for part cut out. 1/16" router bit. Not required if you want to use a chisel to cleanup the pocket in the left and right sides instead.
As stated in the description, this is based on the Cleat Systainer Shelf : Use the instructions shown in the link above if you want to create locking disks. Use a regular 1/4" bit or compression bit to cut out the parts first. Then use a quarter inch regular bit or downcut bit to clear the pockets. Change the pocket to an inside cut, and cut the inside. Doing it in this order with a downcut bit will prevent chipout when cutting out either the Two Base or Four Base. Cut the pockets on the left and right sides to a depth of 1/4". Cut the pockets on the bases to a depth of 1/8". If you have a 1/16" bit, you can use it to cut the dogbones in the left and right side pockets, otherwise use a chisel to square up the corners at the back part of the pocket.

This project is licensed under the Creative Commons Attribution - NonCommerical - Share - Alike license
