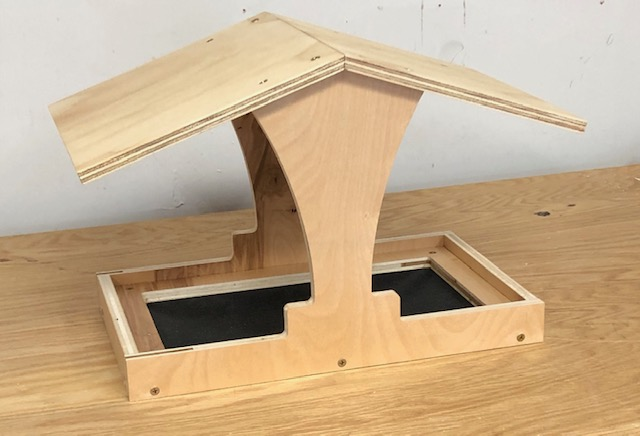

Fly-through Bird Feeder
Made a couple of cedar feeders that were a pain to refill. This open air design allows me to add a scoop of seed so easily! Birds can also land on the ledges.Next time I may add a dowel rod in the middle for a perch.
16
Outdoors
Files Included (2)
Design 1-01.svg
949 BDesign 1.ai
145 kB
Materials
1/2" baltic birch plywood
Any type of ground cover material for the base
Tools
Shaper Origin
1" wood screws
Instructions
This design is a super simple, basically straight line cut. I added the AI file as well as the SVG so modifications can be made. Cut two of the side "pillar" pieces, two of the inside frame pieces, and 2 of the short side pieces. I took the frame pieces and pre-drilled holes on the top frame. I then cut the ground cover material to size, placed it between the two frame pieces, and screwed the two frame pieces together. I then attached the short sides and then the pillars. Finally I cut the roof with a track saw to cut the panels (those are 9"x10" to give overhang so the seed doesn't get wet). Check the roof angle but I think it's 142 degrees so each roof piece needs to be cut with a 19 degree bevel. Of course you could use the overlap method and not worry about the miter! Any questions feel free to reach out: ken@mooseheadww.com Send over any pics if you make one or modify. Excited to see what happens!
