Vacuum hold down table

By Philip1 | Created February 17th, 2020 | Published February 17th, 2020 | Updated February 17th, 2020

uploaded project image
project image thumbnail
project image thumbnail

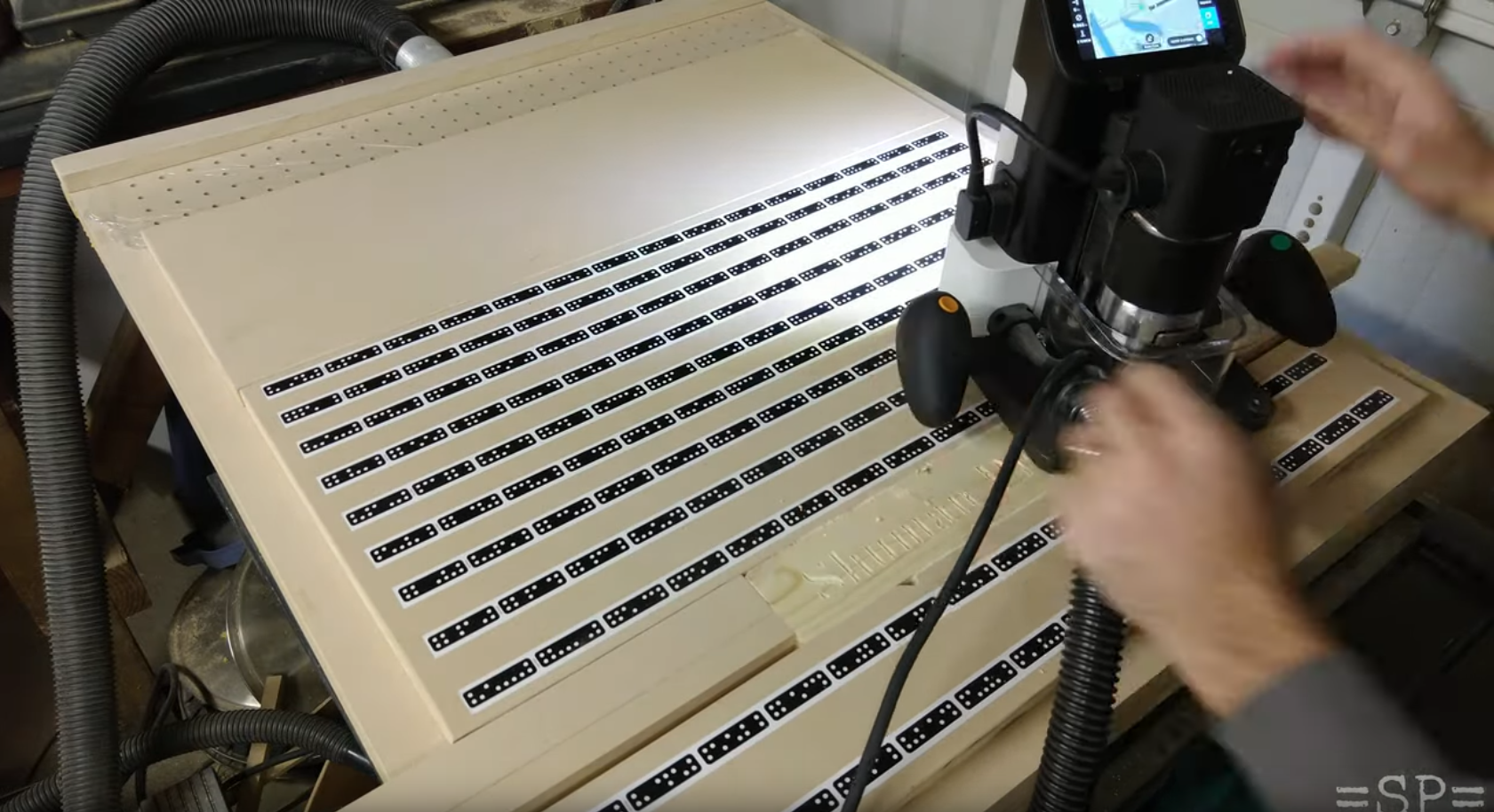

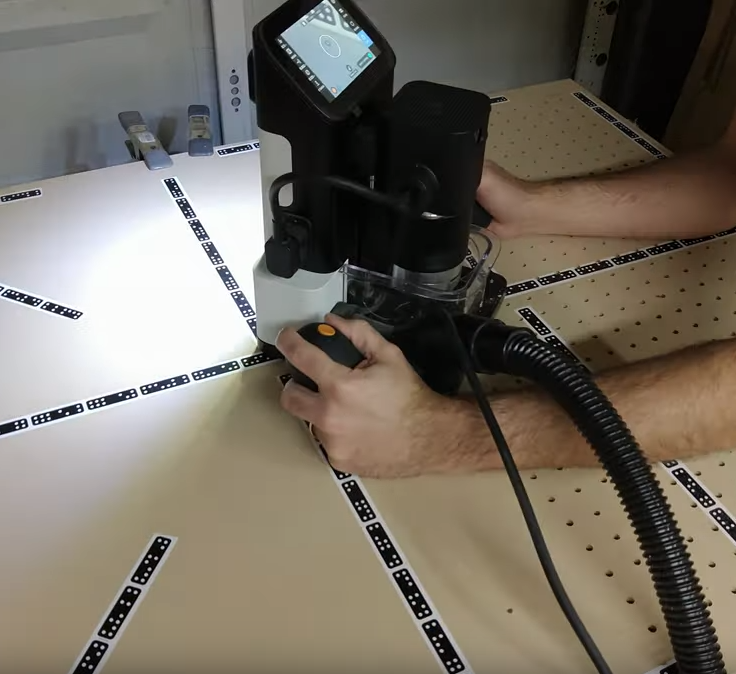

This is a vacuum table top I built to hold smaller pieces of work for the Shaper Origin. My shop vac provides enough suction to hold down MDF 'plates' and the flat wood being routed. Build & use video: https://www.youtube.com/watch?v=X45RQ_H6gSo

2 hr

Easy

3

Category

Jigs & Fixtures

Files included (5)
NameSize
32x39_PegBoard p2.svg
87 kB
32x39_PegBoard p1.svg
80 kB

4'x8' 3/4" MDF
Shaper Origin Table saw or circular saw Miter saw or circular saw Clamps
Check out the build video: https://www.youtube.com/watch?v=X45RQ_H6gSo File '32x39_PegBoard.svg' includes all the holes, but early versions of the Origin software lagged loading it, so I broke it up into three parts that I cut in batches. Yes, you can drill the holes with something other than Origin. They really don't need to be accurately spaced. Vacuum: Since we are pulling a vacuum and not moving much air, you want a vacuum with a cooling fan. Many rely on air moving through the vacuum for cooling and will overheat. I have seen builds where these are built with actual vacuum pumps too.

This project is licensed under the Creative Commons Attribution - NonCommerical - Share - Alike license
