Fish finder cup holder/rail adapter

By h11 | Created July 5th, 2020 | Published July 9th, 2020 | Updated July 9th, 2020

uploaded project imageuploaded project image
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail
project image thumbnailproject image thumbnail

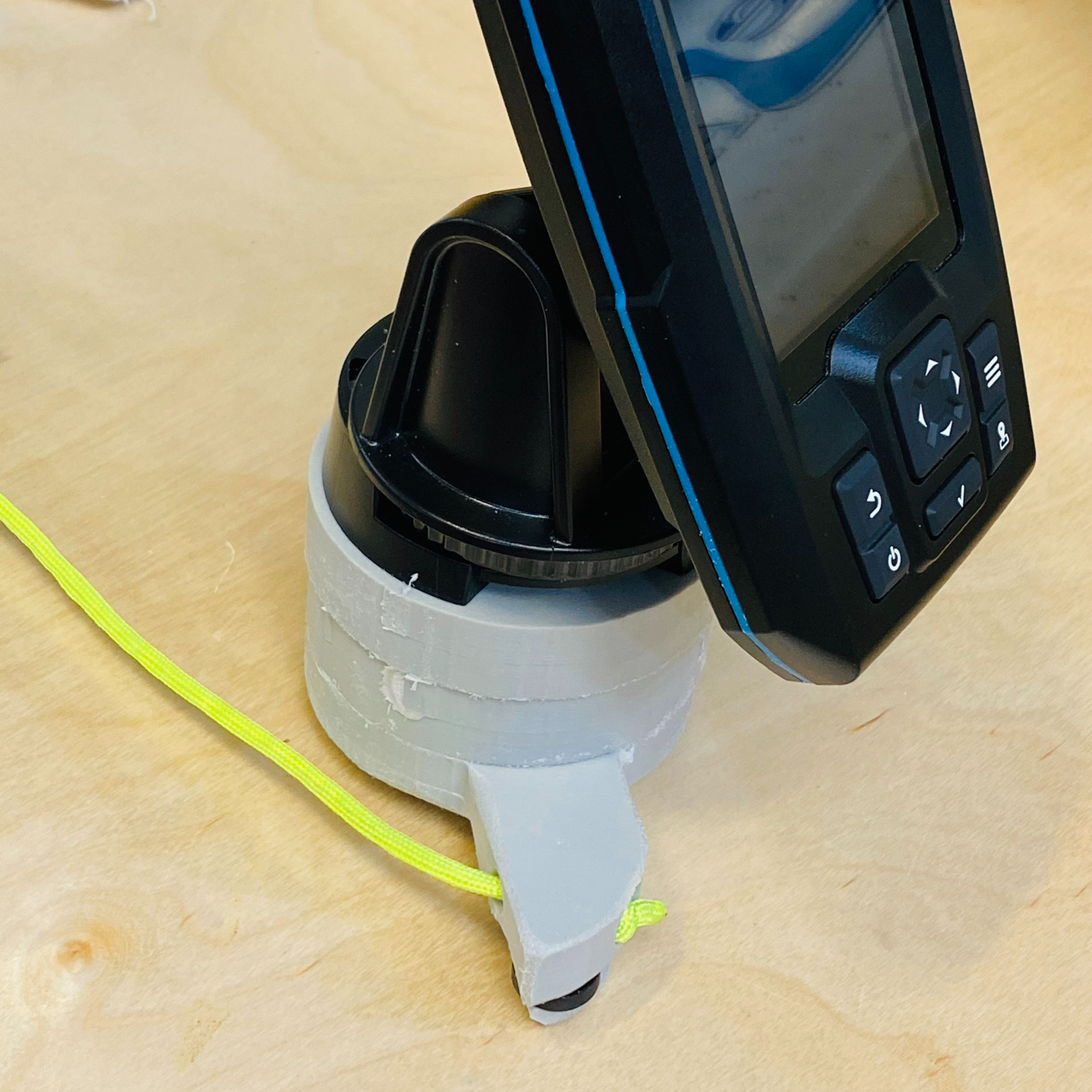

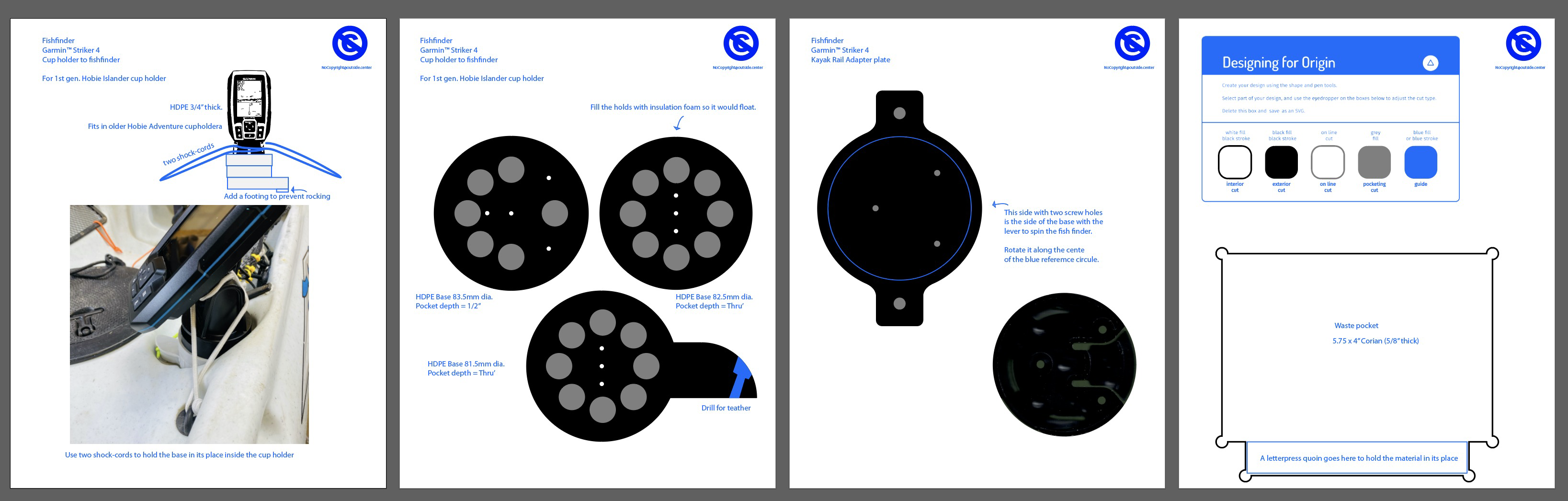

In the .svg file you will fine two projects. One for a cup holder to Garmin Striker 4 adapter for Hobie Islander (original version - but may be applicable to other cup holders). The other is the adapter for equipment rail to the same Fish finder. You will need a pair of "Rail/Track Screws & Track Nuts Hardware" NoCopyright@outside.center

1 hr

Easy

0

Category

Outdoors

Files included (1)
NameSize
Garmin Striker 4 Kayak rail adapter plate‎ v 2.svg
104 kB

Garmin Striker 4 series Fish Finder Screws 3/4 HDPE
Shaper Origin Sander Router w/a 1/4" round over bit Drill

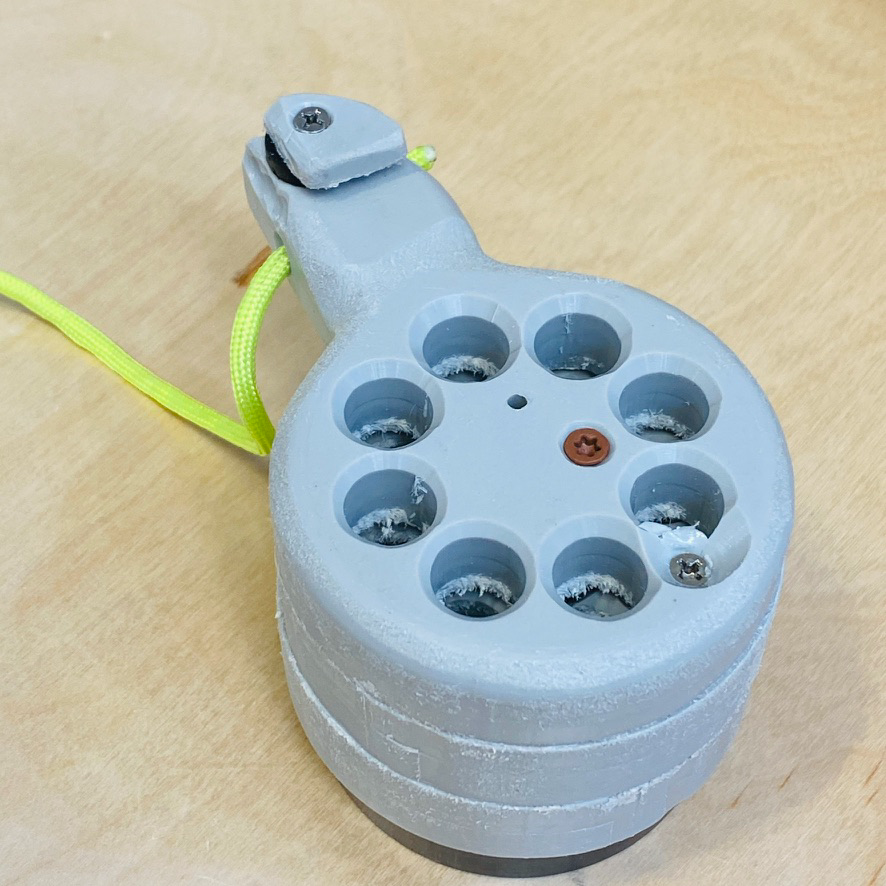

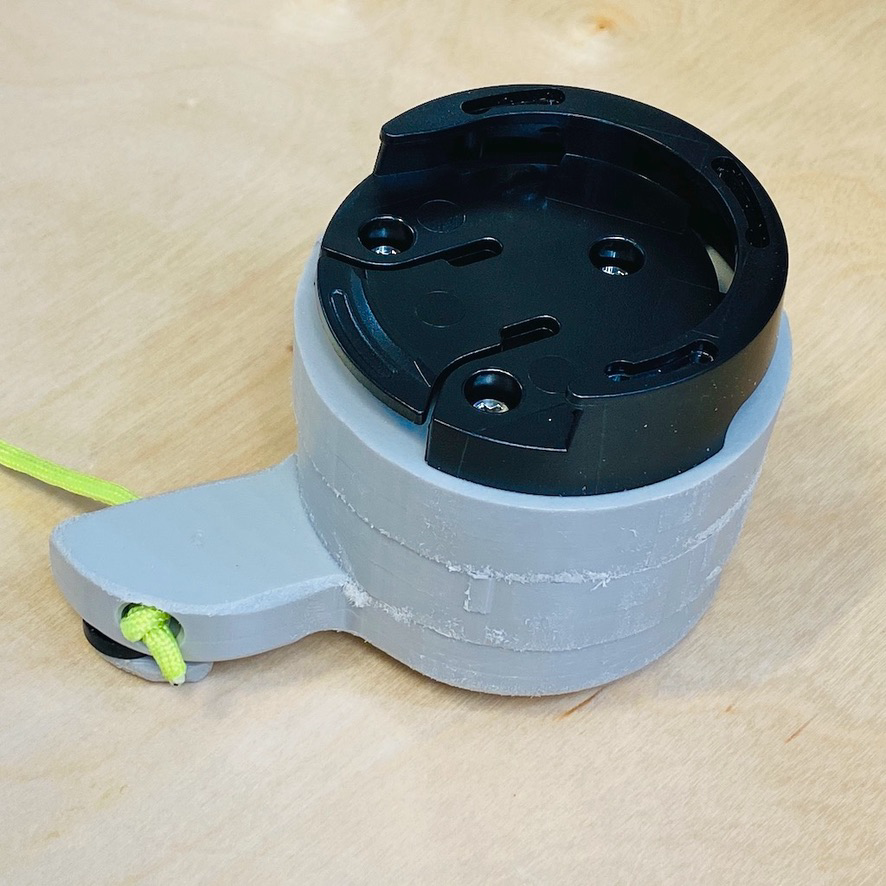

!! Make sure you round corners as edges of milled HDPEcould be sharp !! For the cup holder adapter: Don't sand the layers. It tapers down for a good fit. Use 1/4 round over bit for the bottom of the adapter. The little wing on the bottom layer helps prevent it from rocking towards you. You can keep adding the top layer if you like the device to be position higher. For the rail adapter: Turn the direction of the three screw holes so that the direction for the fish finder base to release is at the direction you want it to be.

This project is licensed under the Creative Commons Attribution - NonCommerical - Share - Alike license
