Wrench Cleat with Magnets

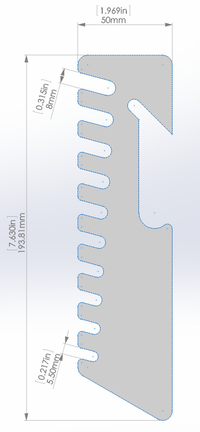

This is a French Cleat rack for holding a combination wrench set. It fits a metric Husky set from Home Depot, with ten sizes, from 8mm to 19mm, but could be adapted to fit your particular wrench set. The rack can be lifted off the cleat to carry the whole set to your work, and the magnets help keep the wrenches in place while you move it around. Also gives it a nice, positive click when they are returned to the rack. Solidworks design file included as well as the SVG file.
144
Cleats
Files Included (3)
Wrench Cleat Small.jpg
72 kBWrench Rack Small.SLDPRT
151 kBwrench rack small.svg
5 kB
Materials
5" x 12" x 1/2" Plywood, such as Baltic birch, or similar.
2 x 1/4" Dowels or joint method of your choice
6mm x 3mm Neo Magnets
Wood Glue
Tools
Shaper Origin Router
1/8" Cutter
1/4" Drill Bit
6mm or 15/64" Drill Bit
Drill
Dowel Pin Transfer Pin Set
Table Saw (optional)
Instructions
Cut out two of the main part and one 2" square (table saw or on-tool CAD for the square). Add dowel holes (on-tool CAD or drill + transfer pins). Test fit, glue, clamp. Drill holes for magnets (6mm or 15/64" drill bit). Add glue and press in a magnet to each hole . See pictures for details.
