Ridgid R4512 Zero Clearance Insert

By Wayne_RMTF | Created May 7th, 2020 | Published May 7th, 2020 | Updated May 7th, 2020

uploaded project image
project image thumbnail
project image thumbnail
project image thumbnail
project image thumbnail

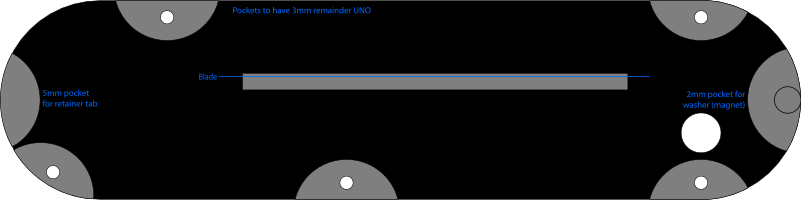

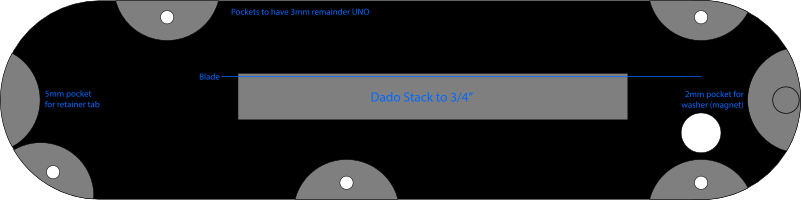

One of the issues with the Ridgid R4512 table saw is the insert. The insert is approx. 1/8" thick and does not lend itself to a simple zero clearance insert. This is a file which will offer you two inserts, one for your daily blade, one for the your dado stack. Sketchup file available upon request.

20 min

Easy

4

Category

Jigs & Fixtures

Files included (2)
NameSize
R4512 Insert v1.5 PRODUCTION.svg
43 kB
R4512 Insert v1.5 - Dado PRODUCTION.svg
49 kB

5/8" or 3/4" Baltic birch, scraps/offcuts work well
Shaper Origin
Follow directions as noted within the SVG - a pretty simple project which solves the R4512 problem.

This project is licensed under the Creative Commons Attribution - NonCommerical - Share - Alike license
