Shelf upgrade kit bracket [ 3d print ]
If you have the shelf upgrade kit and want to repurpose the stock shelf as a larger custom shelf, its nice to have a spare mounting bracket, so you can rapidly swap the support leg between shelves. This 3d printed model enables just that.
7
Shaper Workstation
Files Included (4)
shelf_bracket_base.svg
12 kBshelf_bracket_lug_holes.svg
34 kBshelf_bracket_lug.svg
3 kBshelf_bracket.3mf
784 kB
Materials
3d print:
structural filament: petg or stronger recommended
6mm nuts
m6 18 button head screws ( longer than stock )
Origin version:
3/8" x2" ( wood / plastic / composite or aluminium )
6x m4 20mm countersunk head screws
Tools
3d printer
or
Origin
1/8" cutter

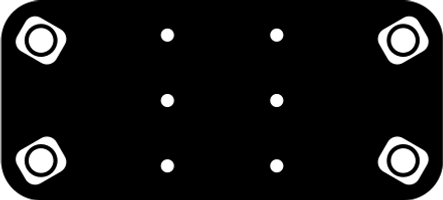

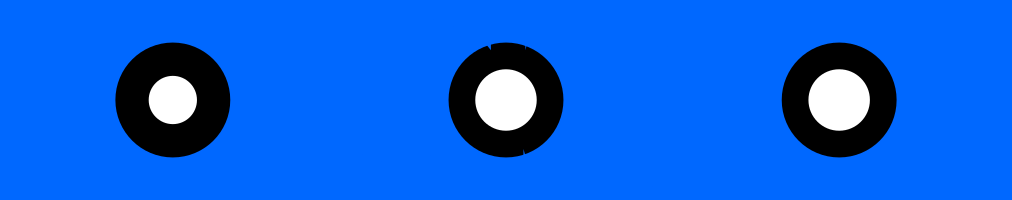

Instructions
3d print the 3mf file with a decent amount of wall / floor layers and dense infil to avoid the part being too fragile. Note: the stock m6 buttonhead screws wont be long enough to properly engage with the nuts, order 4 x 16mm - 20mm long replacements. discuss further here if you have any thoughts: https://community.shapertools.com/t/shelf-upgrade-kit-bracket-3d-print/14942 Ive added the profiles for producing parts to make it with Origin. ( cuttable with an 1/8" cutter ) they are untested at the moment. There are two approaches for attaching the lugs, cut the small 3.3mm holes and tap. or cut the larger 4.2mm holes and the three nut retaining holes on the main face of the lugs. counter sink the under side of the base to accomodate the 6 m4 screws
