Kia EV6 subwoofer mounting bracket Created by Sam — Swap out the ev6 stock subwoofer
by installing a mounting panel in the same location
( fit confirmed on 2023 gt USA model )
Hole pattern fits a KICKER 46HS10 sub, but can easily be adapted other subs.
Swap out the ev6 stock subwoofer
by installing a mounting panel in the same location
( fit confirmed on 2023 gt USA model )
Hole pattern fits a KICKER 46HS10 sub, but can easily be adapted other subs.
3.4" ply / MDF or ridged material of your choice ( bigger than 568.991mm x 269.892 )
paint
M6 x 30 * 4 + wide washers
M4 x 30 * 4 + wide washers
1/2" wide x 1/16" thick adhesive backed weather stripping
1/4" R round over following bit
1/16" R round over following bit
5mm drill + engraving bit for hole center identification
community project thread, add feedback and thoughts here:
https://community.shapertools.com/t/kia-ev6-subwoofer-mount/11446

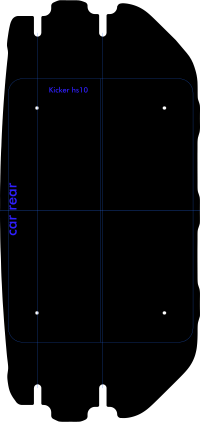

included is an SVG file for fabricating with Origin. ( https://www.shapertools.com/en-us/origin )
a DXF file for any other digital fabrication technique. ( waterjet / laser / traditional cnc )
and a couple of pdf print files for bandsaws / jigsaws / scroll saws ( A4 and letter, note printers dont print all the way to the edge, so so there is a ruler printer to confirm you have the right scale, and help you line up the prints )
Remove the old sub, no idea if it even works.
the hole pattern is set up for a KICKER 46HS10 subwoofer,
With an engraving bit cut the pilot holes for the 4 mounting holes, the holes are 5mm diameter.
Cut the file out of a suitably ridged panel, I'd recommend approx. 3/4" ply.
make a note of the "car rear" noted in the file, so you can orient the sub correctly when installing.
Instead of figuring out all the different bevel angles for it to seat nicely, with a conventional trim router i just put a 1/4" radius around the bottom.
and a 1/16" radius on the top
sand / paint
attach the sub first
then attach the panel to the mounting points of the car.
wire / tinker / enjoy
