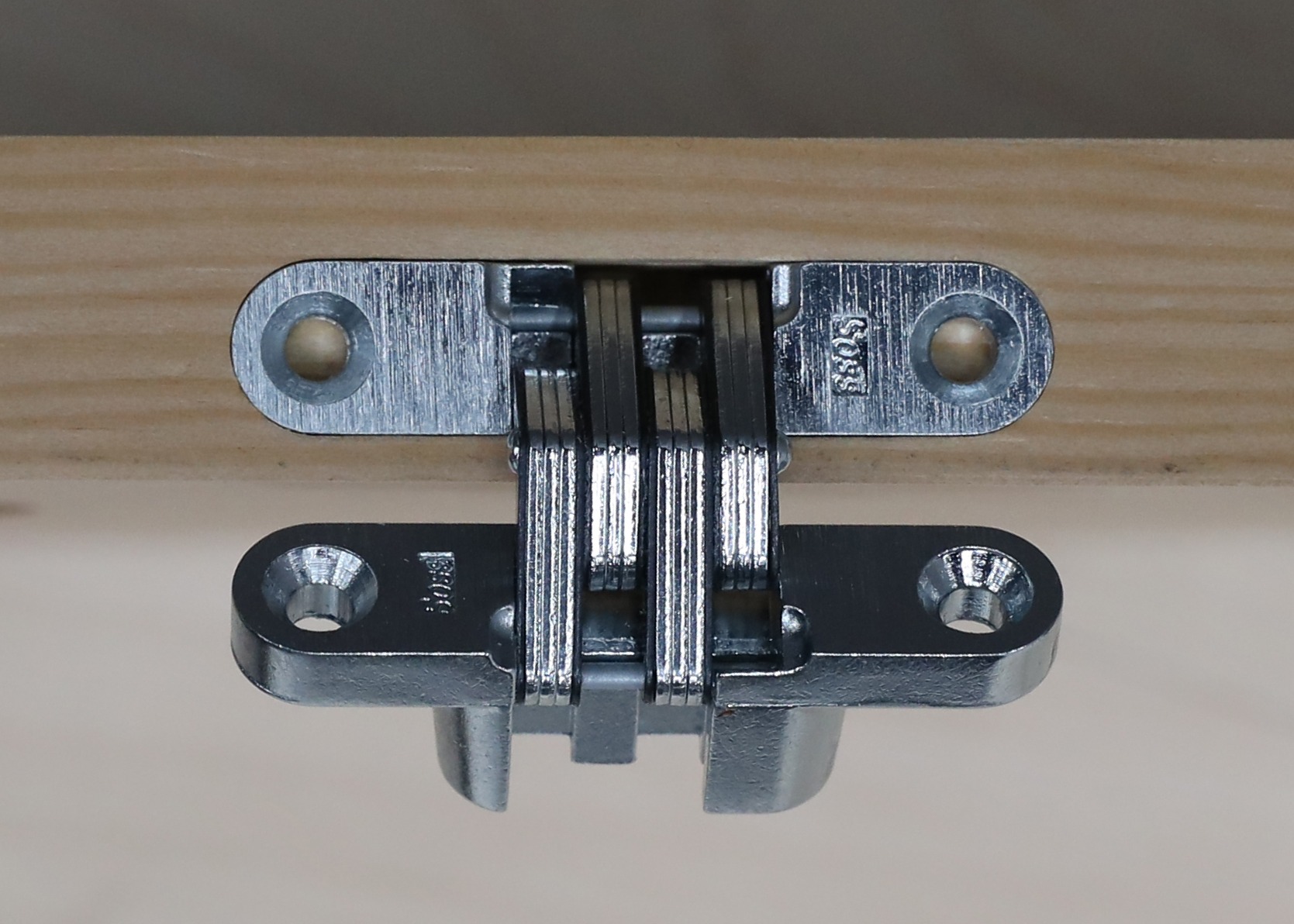

Soss 204 Invisible Hinge

Instructions

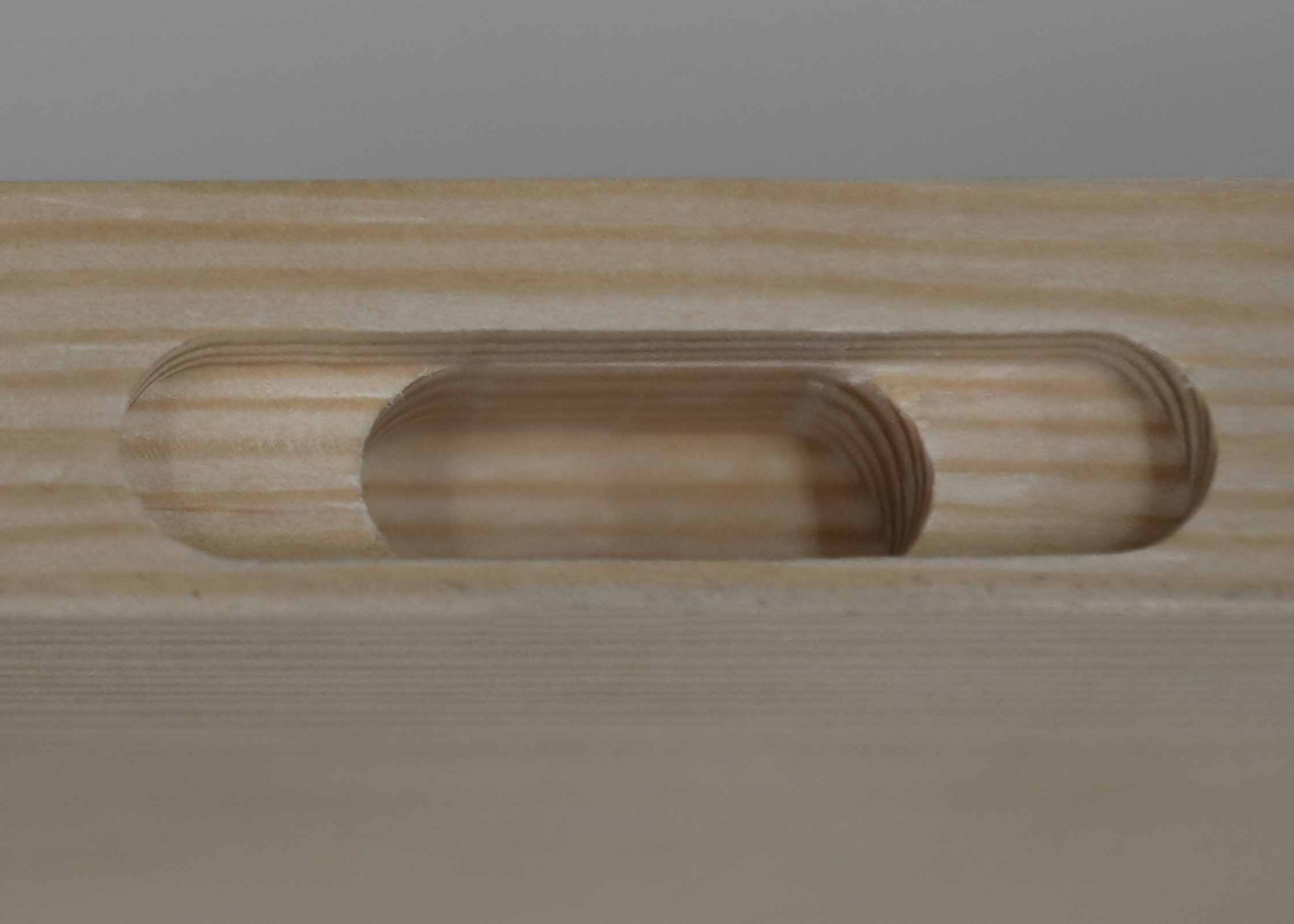

Be sure to test cut first in inexpensive material to confirm you get the alignment and fit you want before performing the actual hardware installation. Use the grid feature to identify the side of the door you want the hinges on, centering the hinge on with the custom anchor provide the recommended 1/8" offset from the edge. Cut large Pocket first. Cut smaller pocket second. Optional pilot holes centered on the guide circles. In softwood: #51 drill, ( 0.067" )
