Using to Create Decorative Text

By Shawn | Created March 6th, 2020 | Published March 9th, 2020 | Updated March 9th, 2020

uploaded project image
project image thumbnail
project image thumbnail
project image thumbnail
project image thumbnail
Simple example of how to get more advanced text onto Origin quickly with

10 min





Files included (1)
44 kB

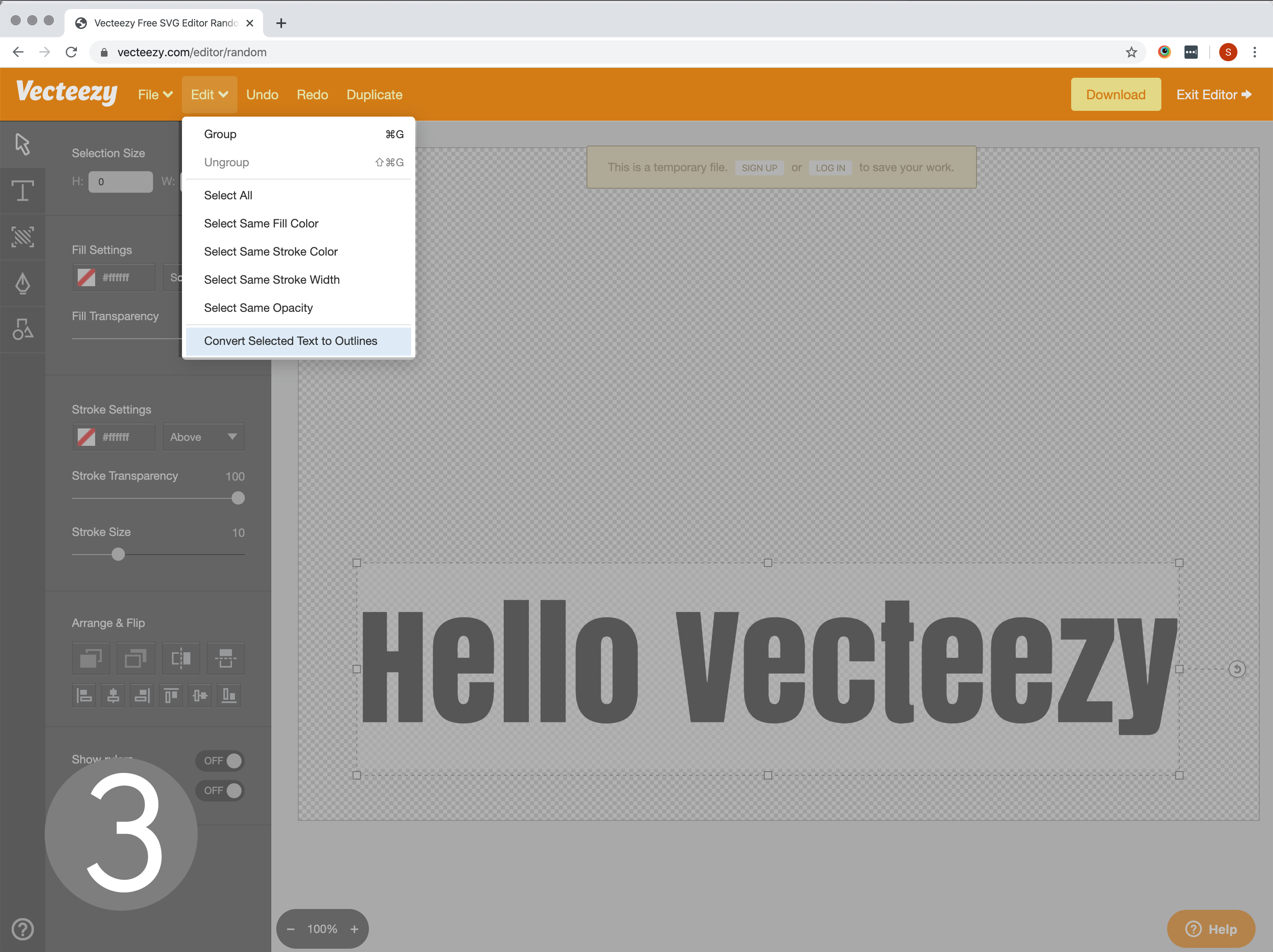

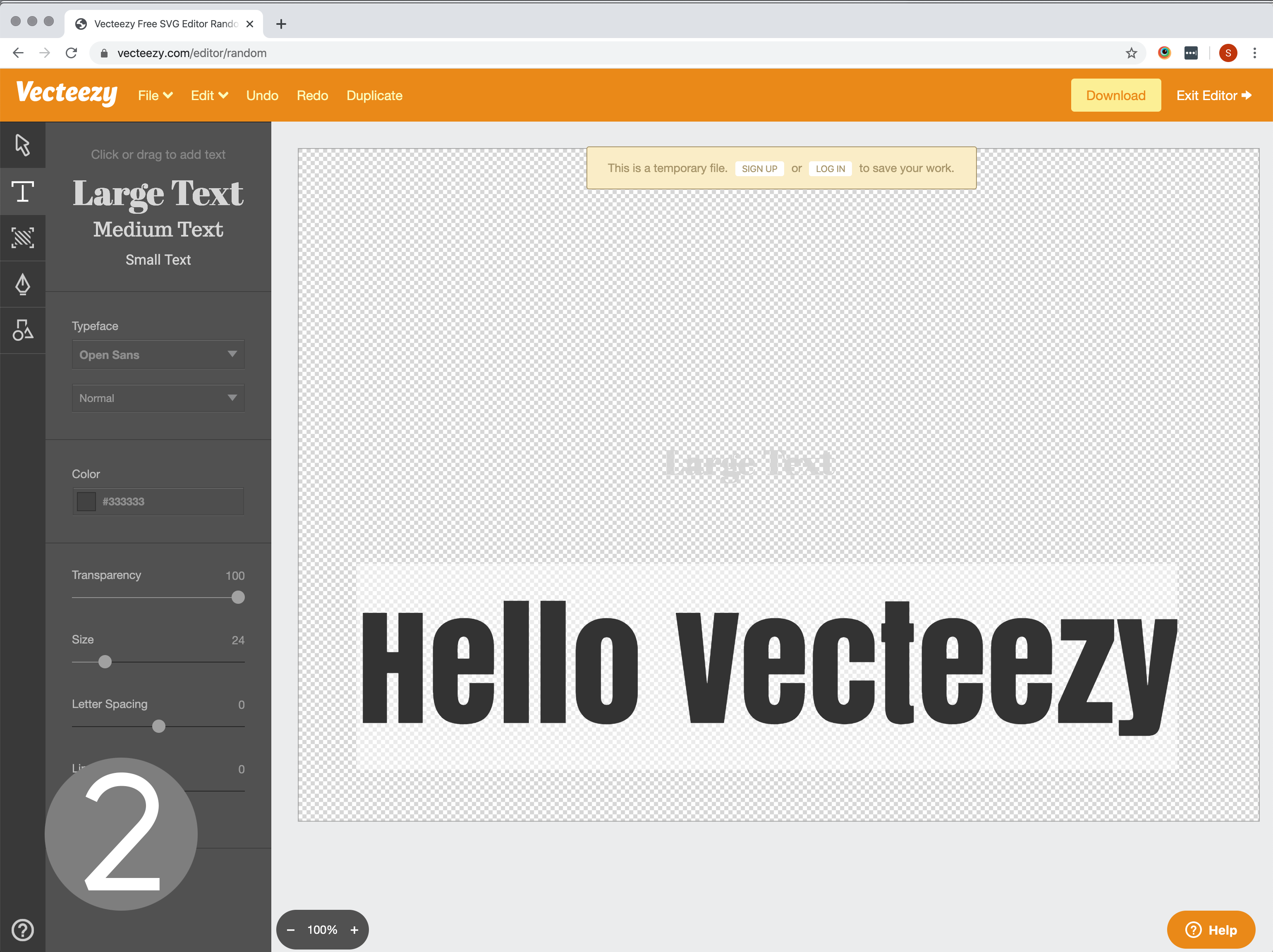

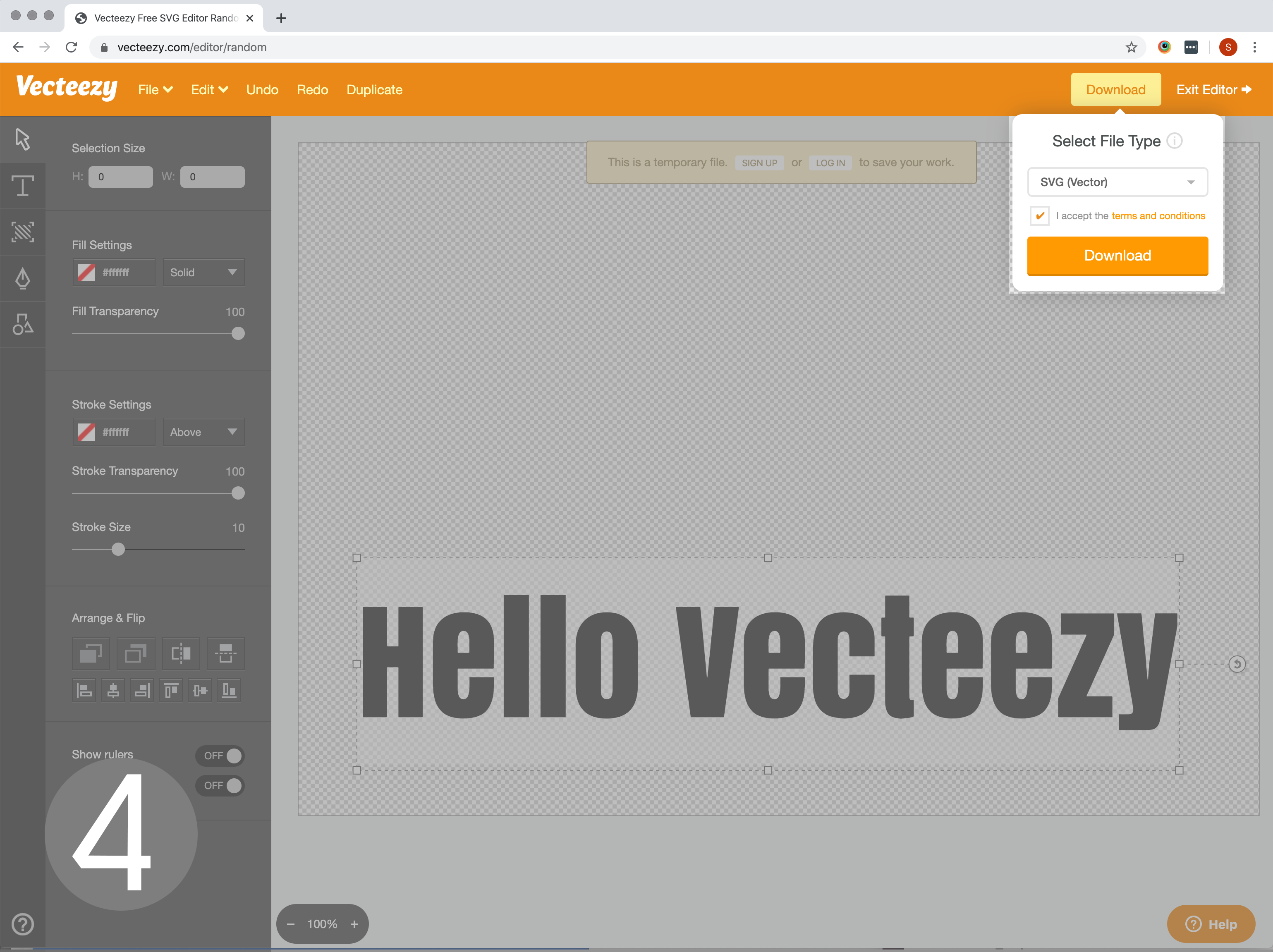

- Requres Google Chrome Browser - Vecteezy is FREE! (be sure to read their license to make sure it works for your situation) Steps --------------------------------------------------------------------------------------- - Go to and click the "start designing" button (Photo #1) - It will load with a random design (click file -> clear to reset everything) - Click the big "T" button on the left menu bar - Click the "Large Text" (or click and drag it into the work area) and it will create a text object in the middle of the work area - Type the word you want in Photo #2 above, I used "Hello Vecteezy" - Select the font you want to use - You can click the corners of the box to make bigger or smaller (Or you can scale it up on tool later) - KEY STEPS COMING UP!!!!!!!! - Now click the "Arrow" in the leff menu bar - Select the text with the mouse - Click the "Edit" button in the top menu bar, and click the "Convert Selected Text to Outlines" button, Photo #3 (Failiure to do this will make the file unable to be imported on Origin) - Now click the big "Download" button in the top right and download the file to your computer (Photo #4) - Upload this file to ShaperHub or a USB stick and Enjoy! (Note: if you get a file that is unable to be imported, it is likely due to the fact that you have not converted the Text objects to outlines.) Problems? Need Help?

This project is licensed under the Creative Commons Attribution - NonCommerical - Share - Alike license
